AAC 1350 – All Aluminum Conductors AS 1531 from size 34.4mm2 to 674mm2 AAC(All aluminum conductor) is the most economical bare overhead conductor due to its lighter weight. It offers easier handing during installation and use of simpler fittings. The conductor is corrosion resistant due to its homogeneous construction.

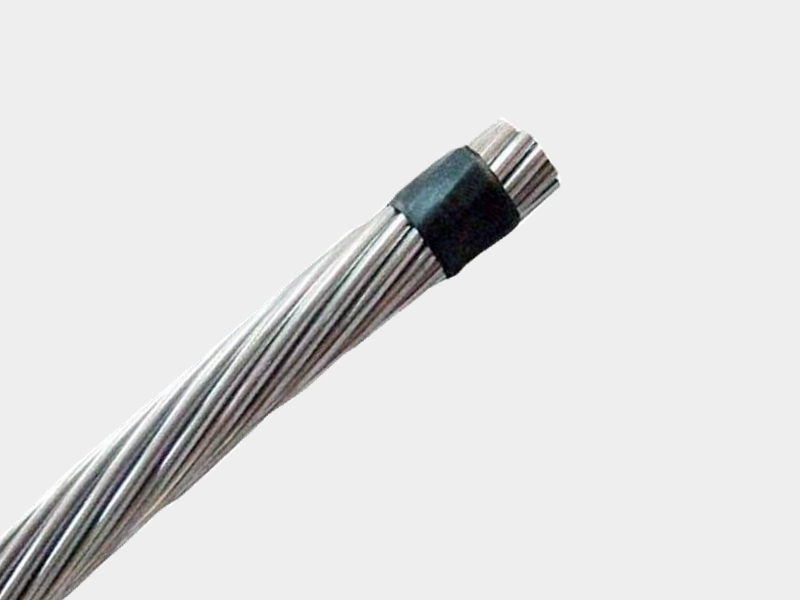

AAC-All Aluminum Stranded Conductor AS/NZS 1531
Shape of conductor: circular and sectional
Material: All aluminum conductor
Insulation: N/A
Material: All aluminum conductor
Insulation: N/A
AAC 1350 All Aluminum Stranded Conductor Leo 34.4mm2
Code name: Leo
Sectional area: 34.4mm2
Number of Strands: 7
Sectional area: 34.4mm2
Number of Strands: 7
AAC 1350 All Aluminum Conductor Stranded Leonids 41.6mm2
Code name: Leonids
Sectional area: 41.6mm2
Number of Strands: 7
Sectional area: 41.6mm2
Number of Strands: 7
AAC 1350 All Aluminum Stranded Conductor Libra 49.5mm2
Code name: Libra
Sectional area: 49.5mm2
Number of Strands: 7
Sectional area: 49.5mm2
Number of Strands: 7
AAC 1350 All Aluminum Stranded Conductor Mars 77.3mm2
Code name: Mars
Sectional area: 77.3mm2
Number of Strands: 7
Sectional area: 77.3mm2
Number of Strands: 7
AAC 1350 All Aluminum Stranded Conductor Mecury 111mm2
Code name: Mecury
Sectional area: 111mm2
Number of Strands: 7
Sectional area: 111mm2
Number of Strands: 7
AAC 1350 All Aluminum Stranded Conductor Moon 124mm2
Code name: Moon
Sectional area: 124mm2
Number of Strands: 7
Sectional area: 124mm2
Number of Strands: 7
AAC 1350 All Aluminum Stranded Conductor Neptune 158mm2
Code name: Neptune
Sectional area: 158mm2
Number of Strands: 19
Sectional area: 158mm2
Number of Strands: 19
AAC 1350 All Aluminum Stranded Conductor Orion 183mm2
Code name: Orion
Sectional area: 183mm2
Number of Strands: 19
Sectional area: 183mm2
Number of Strands: 19
AAC 1350 All Aluminum Stranded Conductor Pluto 210mm2
Code name: Pluto
Sectional area: 210mm2
Number of Strands: 19
Sectional area: 210mm2
Number of Strands: 19
AAC 1350 All Aluminum Stranded Conductor Saturn 262mm2
Code name: Saturn
Sectional area: 262mm2
Number of Strands: 37
Sectional area: 262mm2
Number of Strands: 37
AAC 1350 All Aluminum Stranded Conductor Sirus 307mm2
Code name: Sirus
Sectional area: 307mm2
Number of Strands: 37
Sectional area: 307mm2
Number of Strands: 37
AAC 1350 All Aluminum Stranded Conductor Taurus 337mm2
Code name: Taurus
Sectional area: 337mm2
Number of Strands: 19
Sectional area: 337mm2
Number of Strands: 19
AAC 1350 All Aluminum Stranded Conductor Triton 409mm2
Code name: Triton
Sectional area: 409mm2
Number of Strands: 37
Sectional area: 409mm2
Number of Strands: 37
AAC 1350 All Aluminum Stranded Conductor Trojans 431mm2
Code name: Trojans
Sectional area: 431mm2
Number of Strands: 61
Sectional area: 431mm2
Number of Strands: 61
AAC 1350 All Aluminum Stranded Conductor Uranus 506mm2
Code name: Uranus
Sectional area: 506mm2
Number of Strands: 61
Sectional area: 506mm2
Number of Strands: 61
AAC 1350 All Aluminum Stranded Conductor Ursula 587mm2
Code name: Ursula
Sectional area: 587mm2
Number of Strands: 61
Sectional area: 587mm2
Number of Strands: 61
AAC 1350 All Aluminum Stranded Conductor Venus 674mm2
Code name: Venus
Sectional area: 674mm2
Number of Strands: 61
Sectional area: 674mm2
Number of Strands: 61
