All Aluminum Stranded Conductor AAC Scorpion 500mm2

The BS 215 Part 1 All Aluminum Conductor (AAC) Scorpion 500mm² is a premium overhead conductor designed for efficient and reliable power transmission and distribution. Manufactured in accordance with British Standard BS 215 Part 1, this conductor features high-purity aluminum (typically 1350-H19) strands that provide excellent electrical conductivity and mechanical strength. The Scorpion profile offers a durable stranded construction that combines flexibility with enhanced mechanical stability, making installation easier and more secure. Its corrosion-resistant properties ensure durability in outdoor environments, even under harsh weather conditions. Suitable for high-capacity power lines, the BS 215 Part 1 AAC Scorpion 500mm² delivers stable electrical performance over long distances, making it an ideal choice for modern electrical infrastructure projects requiring dependable, high-capacity overhead conductors.

  1. Home
  2. AAC Conductor – All-Aluminum Conductors for Overhead Power Lines
  3. AAC Conductor BS 215-1
  4. All Aluminum Stranded Conductor AAC Scorpion 500mm2
  • All Aluminum Stranded Conductor Aac Scorpion 500mm2

All Aluminum Stranded Conductor AAC Scorpion 500mm2

BS 215 Part 1 All Aluminum Conductor AAC Scorpion 500mm2

  • Code Word Scorpion
  • Number of Stranded 37
  • Conductor Material All Aluminum Conductor
  • Standard BS 215 Part 1

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

AAC Conductor Scorpion 500mm2 Application

AAC Conductor Scorpion 500mm2 can be used in low and medium voltage overhead lines. It’s commonly used in urban areas because of its ability to carry significant voltages over short distances. The long-lasting, corrosion resistant qualities of aluminum make this conductor a popular choice for use in coastal areas as well as for use in the railway and subway industries. Shipyards and offshore construction sites benefit from the conductor’s durability. AAC Conductor Scorpion 500mm2 can be used for most overhead transmission duties when conductor strength is not a factor. The conductor can also be used for primary and secondary distribution applications.

AAC (all aluminum conductor) is the most economical bare overhead conductor due to its lighter weight. It offers easier handling during installation and use of simpler fittings. The wire is corrosion resistant due to its homogeneous construction.

STANDARD

AAC Conductor Scorpion 500mm2 Standard
According to BS 215 Part 1:1970, Aluminium conductors and aluminium conductors, steel reinforced for overhead power transmission. Part 1: Aluminium stranded conductors

Construction

AAC Conductor Scorpion 500mm2 Construction
The aluminium wires used in the construction of the conductor shall be material GIE in the H9 condition as specified in BS 26273). a conductor consisting of seven or more aluminium wires of the same nominal diameter twisted together in concentric layers. When the conductor consists of more than one layer, successive layers are twisted in opposite directions

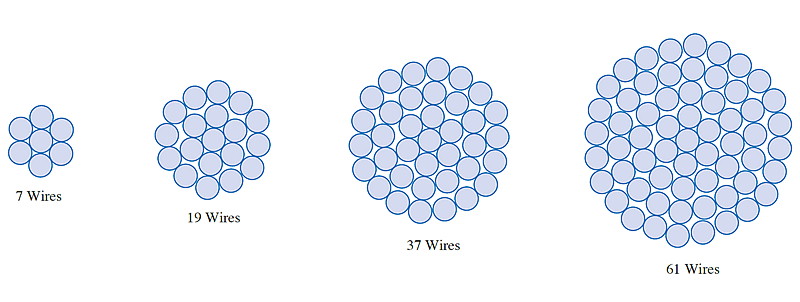

All Aluminum Conductor AAC Construction

All Aluminum Conductor AAC Construction

AAC Conductor Scorpion 500mm2 Parameter
Code Word:

 Scorpion
Nominal Area (mm2): 500
Calculate Area (mm2) 529.8
Stranding: 37
Diameter Individual Wire Aluminum (mm): 4.27
Overall Diameter (O.D.) (mm): 29.9
Weight Per 1000 Meters (kg): 1460
Rated Strength (KN): 79.98
Resistance DC 20°C Per 1000 Meters (Ω): 0.05441
Allowable Ampacity  (Amps):
 887
