All Aluminum Conductor AAC DIN 48201 Part 5

The All Aluminum Conductor (AAC) conforming to DIN 48201 Part 5 is a high-quality overhead conductor designed for efficient power transmission and distribution. Made entirely of high-purity aluminum (typically 1350-H19 grade), this conductor offers excellent electrical conductivity, lightweight construction, and superior corrosion resistance, making it ideal for outdoor overhead lines. Constructed with multiple aluminum strands twisted together, it provides flexibility and mechanical strength suitable for various installation environments. Compliant with DIN 48201 Part 5 standards, this AAC is widely used in low to medium voltage distribution networks, offering a cost-effective solution for reliable electrical power delivery. Its combination of high conductivity, durability, and ease of handling makes it a preferred choice for overhead power line applications.

  1. Home
  2. AAC Conductor – All-Aluminum Conductors for Overhead Power Lines
  3. AAC Conductor DIN 48201-5
  4. All Aluminum Conductor AAC DIN 48201 Part 5
  • All Aluminum Conductor Aac Din 48201 Part 5

All Aluminum Conductor AAC DIN 48201 Part 5

Aluminum Conductor AAC DIN 48201 Part 5

  • Shape of conductor circular and sectional
  • Sectional area 16 - 1000mm2
  • Insulation N/A
  • Standard DIN 48201

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

All Aluminum Conductor AAC DIN 48201

AAC conductor is also known as aluminum stranded conductor which are used in urban areas where spans are usually short but high conductivity is required and are in common use on overhead lines for in low, medium and high voltage. The excellent corrosion resistance of aluminium has made AAC a conductor of choice in coastal areas.Although aluminium-to-copper connections can be made, it is better to use aluminium conductors for service connections, as various forms of covered cable are available for this purpose

STANDARD

All Aluminum Conductor AAC DIN 48201
German DIN 48201 Part 5 Standard All Aluminum Conductor (AAC) Cables bare

Construction

All Aluminum Conductor AAC DIN 48201
Concentric lay stranded Aluminium Conductor ( AAC) is manufactured from electrolytically refined aluminium with a minimum purity of 99.7%. and made up of one or more strands of hard drawn 1350 aluminum alloy.

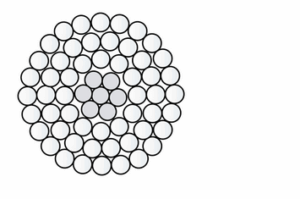

Aluminum 1350-H-19 wires Conductor

Aluminum 1350-H-19 wires Conductor

All Aluminum Conductor AAC DIN 48201 Part 5
Code
Cross. Section
(mm2)
Cu Equiv.
(mm2)
Stranding & Wire ø
(Nºx mm)
Overall ø
(mm)
Weight
(kg/km)
Rated strength
(KN)
Electr.resist. at 20ºC
(ohm/km)
16 15.89 10 7x1.70 5.1 43 2.84 1.8018
25 24.25 15.2 7x2.10 6.3 66 4.17 1.1808
35 34.36 21.6 7x2.50 7.5 94 5.78 0.8332
50 49.48 31.1 7x3.00 9 135 7.94 0.5786
50 49.35 30.4 19x1.80 9 133 8.45 0.595
70 65.81 41.4 19x2.10 10.5 181 11.32 0.4371
95 93.27 58.7 19x2.50 12.5 256 15.68 0.3084
120 116.99 73.6 19x2.80 14 322 18.78 0.2459
150 147.11 92.5 37x2.25 15.8 406 25.3 0.196
185 181.62 114.2 37x2.50 17.5 500 30.54 0.1587
240 242.54 152.5 61x2.25 20.3 670 39.51 0.1191
300 299.43 188 61x2.50 22.5 827 47.7 0.0965
400 400.14 252 61x2.89 26 1.104 60.86 0.07221
500 499.83 314 61x3.23 29.1 1.379 74.67 0.05781
625 626.2 394 91x2.96 32.6 1.732 95.25 0.04625
800 802.09 504 91x3.35 36.9 2.218 118.39 0.03611
1000 999.71 629 91x3.74 41.1 2.767 145.76 0.02897
