ABC (Aerial Bundle Cables) Aluminum Aerial Bundle Cables are specifically engineered for overhead distribution line applications. These cables feature aluminum 1350 conductors with XLPE insulation, providing reliable power transmission for fixed overhead power line installations up to 1000V. The bundled design offers superior performance, safety, and installation convenience compared to traditional bare conductor systems.
Standards Compliance
- Australian/New Zealand Standard: AS/NZS 3560.1
CONSTRUCTION :

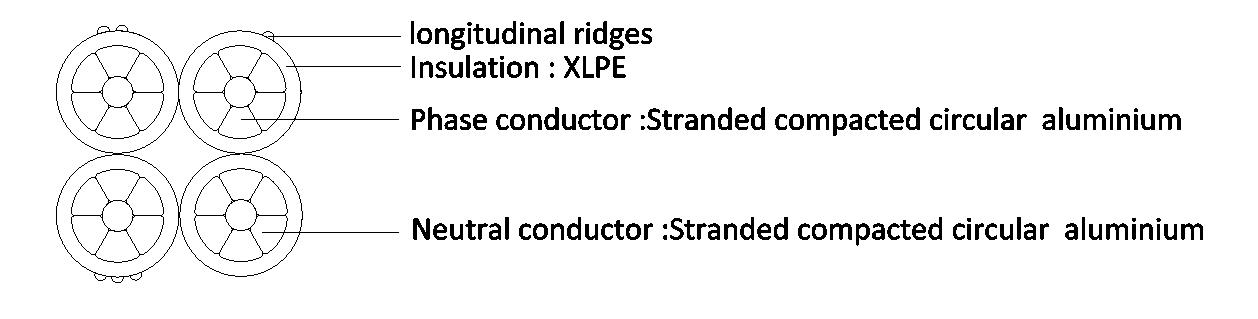

ABC Aluminum Aerial Bundle Cables AS NZS 3560.1 Construction
Conductor Design
- Material: Aluminum 1350 alloy wires
- Construction: Compacted circular stranded (RM) configuration
- Application: Suitable for phase conductors, neutral conductors, and street lighting circuits
Insulation System
- Material: Cross-Linked Polyethylene (XLPE)
- Benefits: Superior electrical properties, weather resistance, and long-term durability
Cable Assembly
- Lay Configuration: Cores are laid up with left-hand lay for optimal mechanical strength
- Bundle Design: Multiple insulated conductors bundled together for enhanced safety and reduced maintenance
Technical Specifications
Electrical Ratings
| Parameter | Value | Unit |
|---|---|---|
| Rated Voltage | 0.6/1 | kV |
| Test Voltage | 4/50 | Veff kV/Hz |
Temperature Characteristics
| Parameter | Range | Unit |
|---|---|---|
| Laying Temperature | Minimum -5 | °C |
| Operating Temperature | -30 to +90 | °C |
| Maximum Conductor Temperature | +90 | °C |
| Short-circuit Temperature | Maximum +250 for 5 seconds | °C/s |
Physical Properties
| Parameter | Specification |
|---|---|
| Minimum Bending Radius | 15 × cable diameter |
Parameter
| No. of Core & Size | Phase Core | Neutral Core | Complete Cable | |||||||
| No. & Section Area | No. of Wire | Dia. of Conductor (Approx.) | Insulation Thickness | No. & Section Area | No. of Wire | Dia. of Conductor (Approx.) | Insulation Thickness | Overall Dia. (Approx.) | Weight (Approx.) | |
| mm2 | mm2 | No. | mm | mm | mm2 | No. | mm | mm | mm | kg/km |
| 2x16 | 1x16 | 7 | 4.7 | 1.3 | 1x16 | 7 | 4.7 | 1.3 | 14.6 | 132 |
| 4x16 | 3x16 | 7 | 4.7 | 1.3 | 1x16 | 7 | 4.7 | 1.3 | 17.6 | 263 |
| 2x25 | 1x25 | 7 | 6.0 | 1.3 | 1x25 | 7 | 6.0 | 1.3 | 17.2 | 189 |
| 3x25 | 2x25 | 7 | 6.0 | 1.3 | 1x25 | 7 | 6.0 | 1.3 | 18.5 | 283 |
| 4x25 | 3x25 | 7 | 6.0 | 1.3 | 1x25 | 7 | 6.0 | 1.3 | 20.8 | 378 |
| 2x35 | 1x35 | 7 | 7.0 | 1.3 | 1x35 | 7 | 7.0 | 1.3 | 19.2 | 249 |
| 3x35 | 2x35 | 7 | 7.0 | 1.3 | 1x35 | 7 | 7.0 | 1.3 | 20.7 | 373 |
| 4x35 | 3x35 | 7 | 7.0 | 1.3 | 1x35 | 7 | 7.0 | 1.3 | 23.2 | 497 |
| 2x50 | 1x50 | 7 | 8.1 | 1.5 | 1x50 | 7 | 8.1 | 1.5 | 22.2 | 334 |
| 3x50 | 2x50 | 7 | 8.1 | 1.5 | 1x50 | 7 | 8.1 | 1.5 | 23.9 | 501 |
| 4x50 | 3x50 | 7 | 8.1 | 1.5 | 1x50 | 7 | 8.1 | 1.5 | 26.8 | 668 |
| 4x70 | 3x70 | 19 | 10.0 | 1.5 | 1x70 | 19 | 10.0 | 1.5 | 31.4 | 933 |
| 2x95 | 1x95 | 19 | 11.6 | 1.7 | 1x95 | 19 | 11.6 | 1.7 | 30.0 | 638 |
| 4x95 | 3x95 | 19 | 11.6 | 1.7 | 1x95 | 19 | 11.6 | 1.7 | 36.2 | 1276 |
| 4x120 | 3x120 | 19 | 13.0 | 1.7 | 1x120 | 19 | 13.0 | 1.7 | 39.6 | 1579 |
| 4x150 | 3x150 | 19 | 14.6 | 1.7 | 1x150 | 19 | 14.6 | 1.7 | 43.5 | 1883 |
