ABC Aluminum Aerial Bundle Cables DES/LVC-IEC 60502 Application
The aerial bundled cables designed for overhead distribution lines have all conductors made of aluminium 1350 and insulated with XLPE. Can be used for fixed installation as overhead power lines up to 1000 V incl.
ABC Aluminum Aerial Bundle Cables DES/LVC-IEC 60502 Strandard
DES/LVC/ABC Specification; IEC 60502
ABC Aluminum Aerial Bundle Cables DES/LVC-IEC 60502 CONSTRUCTION :
| CONDUCTOR |
H68 aluminium conductor and compacted circular stranded (RM). |
| INSULATION |
XLPE |
| ASSEMBY | The cores shall be laid up with a left-hand lay. |

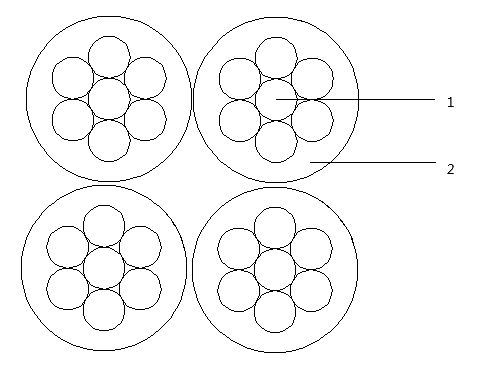

ABC Aluminum Aerial Bundle Cables DES/LVC-IEC 60502 CONSTRUCTION
1. CONCUTOR 2. INSULATION
Technical Data
|
Rated voltage |
kV |
0.6/1 |
|
Test voltage |
Veff kV/Hz |
4/50 |
|
Laying temperature |
°C |
min. -5 |
|
Operating temperature |
°C |
-30 ~ +90 |
|
Conductor temperature |
°C |
max. +90 |
|
Short-circuit temperature |
°C/s |
max. +250 /5 |
|
Bending radius (min.) |
mm |
15 × Ø of cable |
Parameter
| Number of Cores x Nominal Cross Section |
Min. Breaking Load of Conductor Strand |
Current Rating in the Air |
Outer Diameter |
Total Weight |
| mm^2 | kN | A | mm | kg/km |
| 4x25 RM | 3.5 | 84 | 21.5 | 420 |
| 4x35 RM | 4.9 | 104 | 23.9 | 550 |
| 4x120+1x25 RM | 16.8 | 246 | 43.8 | 1800 |
| 4x185+1x25 RM | 25.9 | 332 | 50.7 | 2700 |
