ABC Aluminum Aerial Bundle Cables HD 626 S1

ABC (Aerial Bundle Cables) manufactured and tested according to HD 626 S1 are high-quality overhead power distribution cables designed for use in various overhead electrical networks. The HD 626 S1 is a Turkish standard that specifies the requirements for insulated overhead conductors, including bundled configurations, suitable for voltages up to 36 kV.

  1. Home
  2. Aerial Bundle Cable (ABC)
  3. 0.6/1kV Aerial Bundle Cable
  4. ABC Aluminum Aerial Bundle Cables HD 626 S1
  • slide

ABC Aluminum Aerial Bundle Cables HD 626 S1

ABC Aluminum Aerial Bundle Cables HD 626 S1

  • Voltage 0.6/1kV
  • Conductor Aluminium conductor
  • Insulation XLPE
  • Number of cores 2-5 cores
  • Package Export wooden drum & iron wooden drum or as customer require

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

ABC Aluminum Aerial Bundle Cables HD 626 S1 Application

The aerial bundled cables designed for overhead distribution lines have all conductors made of aluminium conductor and insulated with XLPE. Can be used for fixed installation as overhead power lines up to 1000 V incl.

ABC Aluminum Aerial Bundle Cables HD 626 S1 Strandard

HD 626 S1

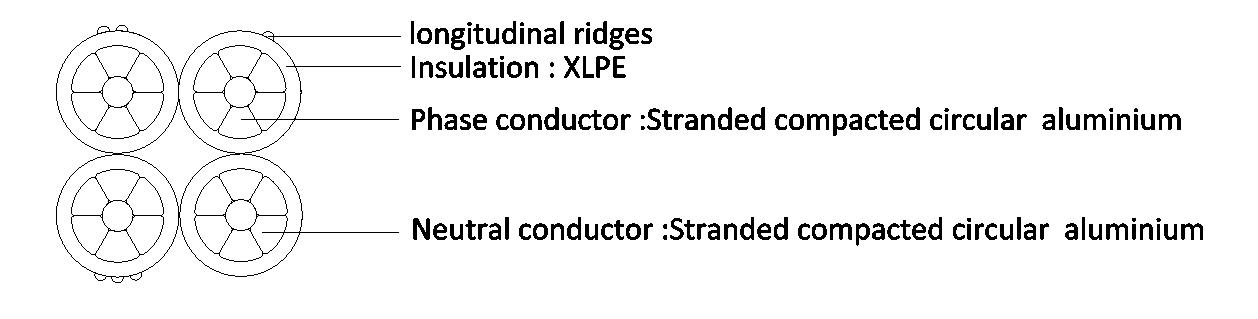

ABC Aluminum Aerial Bundle Cables HD 626 S1 Construction

CONDUCTOR
 Aluminium conductor, round stranded compressed (RM)
INSULATION
 XLPE
ASSEMBY The cores shall be laid up with a left-hand lay.

ABC Aluminum Aerial Bundle Cables HD 626 S1 Construction

ABC Aluminum Aerial Bundle Cables HD 626 S1 Construction

ABC Aluminum Aerial Bundle Cables HD 626 S1 Technical Data

Rated voltage

kV

0.6/1

Test voltage

Veff kV/Hz

4/50

Laying temperature

°C

min. -5

Operating temperature

°C

-30 ~ +90

Conductor temperature

°C

max. +90

Short-circuit temperature

°C/s

max. +250 /5

Bending radius (min.)

mm

15 × Ø of cable

Parameter

Number of Cores
x Nominal Cross Section		 Min. Breaking
Load of Conductor
Strand		 Current Rating
in the Air		 Outer
Diameter		 Total
Weight
mm^2 kN A mm kg/km
2x 16 RM 1910 2,5 72 147
2x 25 RM 1200 4,0 107 208
2x 35 RM 0,868 5,5 132 277
2x 50 RM 0,641 8,0 165 361
4x 16 RM 1910 2,5 72 286
4x 25 RM 1200 4,0 107 430
4x 35 RM 0,868 5,5 132 553
4x 50 RM 0,641 8,0 165 746
4x 70 RM 0,443 10,7 205 1009
4x 95 RM 0,320 13,7 240 1332
4x 120 RM 0,253 18,6 290 1632
4x 35 + 1x 35 RM 0,868/0,868 5,5/5,5 132/132 694
4x 50 + 1x 25 RM 0,641/1,200 8,0/4,0 165/107 814
4x 50 + 1x 35 RM 0,641/0,868 8,5/5,5 165/132 845
4x 70 + 1x 25 RM 0,443/1,200 10,7/4,0 205/107 1105
4x 70 + 2x 25 RM 0,443/1,200 10,7/4,0 205/107 1217
4x 70 + 1x 35 RM 0,443/0,868 10,7/5,5 205/132 1150
4x 70 + 2x 35 RM 0,443/0,868 10,7/5,5 205/132 1289
4x 95 + 1x 25 RM 0,320/1,200 13,7/4,0 240/107 1438
4x 95 + 1x 35 RM 0,320/0,868 13,7/5,5 240/132 1467
4x 95 + 2x 25 RM 0,320/1,200 13,7/4,0 240/107 1544
