ABC Aluminum Aerial Bundle Cables NFC 33-209

ABC Aluminum Aerial Bundle Cables NFC 33-209

  • Voltage 0.6/1kV
  • Conductor Stranded Round Aluminum Conductor
  • Insulation XLPE
  • Number of cores 2-5 cores
  • Package Export wooden drum & iron wooden drum or as customer require

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

ABC Aluminum Aerial Bundle Cables NFC 33-209 Application

Used to supply power,usually from a pole-mounted transformer, to the user's service head where connection to the service entrance.To be used at 600V or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulated or 90°C for cross linked.

ABC Aluminum Aerial Bundle Cables NFC 33-209 Strandard

Aerial Bundled Conductors are manufactured to National French Standard NFC 33-209.

CONSTRUCTION :

Phase Conductor
Multistrand round compacted hard drawn Aluminium conductor is insulated with black weather resistant
cross-linked thermosetting polyethylene (XLPE).

Neutral Conductor
Multistrand round Aluminium Alloy conductor is insulated with black weather resistant cross-linked thermosetting
polyethylene (XLPE).

Public lighting conductor
Multistrand round compacted hard drawn Aluminium conductor is insulated with black weather resistant
cross-linked thermosetting polyethylene (XLPE) conforming to NFC 33-209.

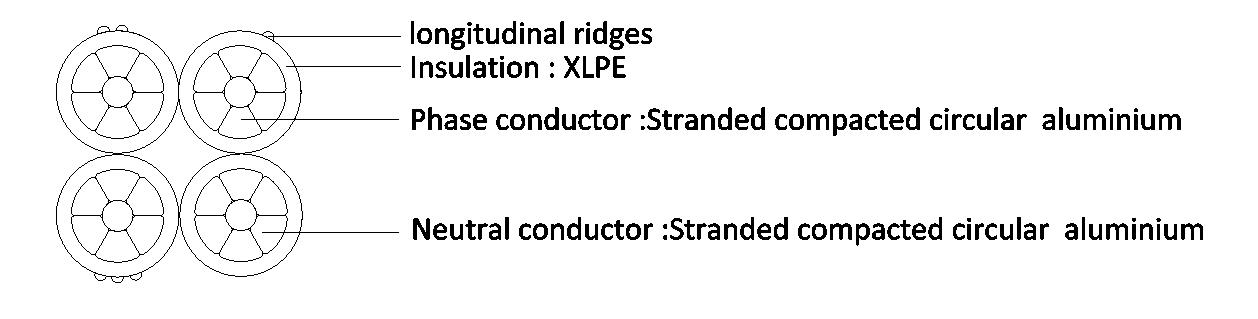

4core ABC Aluminum Aerial Bundle Cables NFC 33-209 Construction

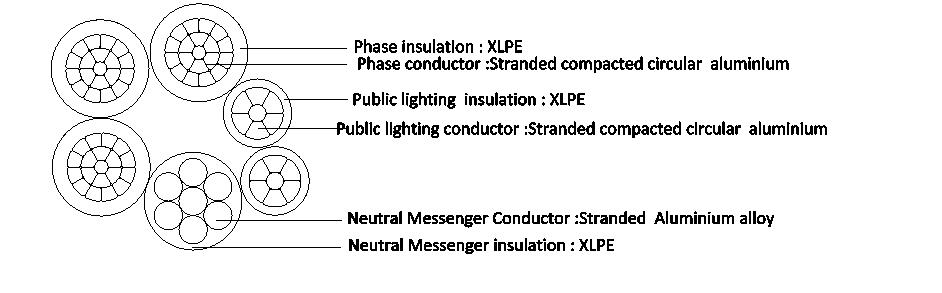

3+2+1 core ABC Aluminum Aerial Bundle Cables NFC 33-209 Construction

3+2+1 core ABC Aluminum Aerial Bundle Cables NFC 33-209 Construction

Technical Data

Rated voltage

kV

0.6/1

Test voltage

Veff kV/Hz

4/50

Laying temperature

°C

min. -5

Operating temperature

°C

-15 ~ +90

Conductor temperature

°C

max. +90

Short-circuit temperature

°C/s

max. +250 /5

Bending radius (min.)

mm

15 × Ø of cable

ABC Cable NFC 33209 Parameter

No. of Conductor
and Cross Section Area		 Phase Core Neutral Core Street Lighting Core Complete Cable
No. and
Section Area		 No. of Wire Dia. of Conductor
(Approx.)		 Insulation
Thickness		 No. and
Section Area		 No. of Wire Dia. of Conductor
(Approx.)		 Insulation
Thickness		 No. and
Section area		 No. of Wires Diameter
of
conductor		 Insulation
Thickness		 Overall Diameter
(Approx.)		 Weight
(Approx.)
mm2 mm2 No. mm mm mm2 No. mm mm mm2 No. mm mm mm kg/km
2x16 2x16 7 4.8  1.2  - - - - - - - - 14.2 126
2x25 2x25 7 6.0  1.4  - - - - - - - - 17.6 194
2x35 2x35 7 7.0  1.6  - - - - - - - - 20.4 266
2x50 2x50 7 8.1  1.6  - - - - - - - - 22.6 341
4x16 4x16 7 4.8  1.2  - - - - - - - - 17.2 252
4x25 4x25 7 6.0  1.4  - - - - - - - - 21.2 388
4x35 4x35 7 7.0  1.6  - - - - - - - - 24.6 533
3x25+54.6 3x25 7 6.0  1.4  1x54.6 7 9.45  1.6 - - - - 23.6  496
3x25+54.6+1x16 3x25 7 6.0  1.4  1x54.6 7 9.45  1.6 1x16 7 4.8 1.2 24.9 560
3x25+54.6+2x16 3x25 7 6.0  1.4  1x54.6 7 9.45  1.6 2x16 7 4.8 1.2 26.6 624
3x35+54.6 3x35 7 7.0  1.6  1x54.6 7 9.45  1.6 - - - - 26.1 604
3x35+54.6+1x16 3x35 7 7.0  1.6  1x54.6 7 9.45  1.6 1x16 7 4.8 1.2 27.2 668
3x35+54.6+2x16 3x35 7 7.0  1.6  1x54.6 7 9.45  1.6 2x16 7 4.8 1.2 28.7 732
3x50+54.6 3x50 7 8.1  1.6  1x54.6 7 9.45  1.6 - - - - 28.1 716
3x50+54.6+1x16 3x50 7 8.1  1.6  1x54.6 7 9.45  1.6 1x16 7 4.8 1.2 28.9 780
3x50+54.6+2x16 3x50 7 8.1  1.6  1x54.6 7 9.45  1.6 2x16 7 4.8 1.2 30.3 844
3x70+54.6 3x70 12 10.0  1.8  1x54.6 7 9.45  1.6 - - - - 32.2 940
3x70+54.6+1x16 3x70 12 10.0  1.8  1x54.6 7 9.45  1.6 1x16 7 4.8 1.2 32.7 1004
3x70+54.6+2x16 3x70 12 10.0  1.8  1x54.6 7 9.45  1.6 2x16 7 4.8 1.2 33.8 1068
3x70+54.6+1x25 3x70 12 10.0  1.8  1x54.6 7 9.45  1.6 1x25 7 6.0  1.4 33.6 1038
3x70+54.6+2x25 3x70 12 10.0  1.8  1x54.6 7 9.45  1.6 2x25 7 6.0  1.4 35.5 1137
3x70+70 3x70 12 10.0  1.8  1x70 7 10.20  1.5 - - - - 32.1 970
3x70+70+1x16 3x70 12 10.0  1.8  1x70 7 10.20  1.5 1x16 7 4.8 1.2 32.5 1035
3x70+70+2x16 3x70 12 10.0  1.8  1x70 7 10.20  1.5 2x16 7 4.8 1.2 33.6 1099
3x95+70 3x95 19 11.7  1.8  1x70 7 10.20  1.5 - - - - 35.6 1212
3x95+70+1x16 3x95 19 11.7  1.8  1x70 7 10.20  1.5 1x16 7 4.8 1.2 35.7 1276
3x95+70+2x16 3x95 19 11.7  1.8  1x70 7 10.20  1.5 2x16 7 4.8 1.2 36.6 1340
3x120+70 3x120 19 13.0  1.8  1x70 7 10.20  1.5 - - - - 38.0  1439
3x120+70+1x16 3x120 19 13.0  1.8  1x70 7 10.20  1.5 1x16 7 4.8 1.2 37.8 1503
3x120+70+2x16 3x120 19 13.0  1.8  1x70 7 10.20  1.5 2x16 7 4.8 1.2 38.6 1567
3x150+70 3x150 19 14.4  1.7  1x70 7 10.20  1.5 - - - - 40.2 1650
3x150+70+1x16 3x150 19 14.4  1.7  1x70 7 10.20  1.5 1x16 7 4.8 1.2 39.8 1714
3x150+70+2x16 3x150 19 14.4  1.7  1x70 7 10.20  1.5 2x16 7 4.8 1.2 40.4 1778
3x120+95 3x120 19 13.0  1.8  1x95 19 12.50  1.6 - - - - 39.5 1526
3x120+95+1x16 3x120 19 13.0  1.8  1x95 19 12.50  1.6 1x16 7 4.8 1.2 39.5 1590
3x120+95+2x16 3x120 19 13.0  1.8  1x95 19 12.50  1.6 2x16 7 4.8 1.2 39.8 1654
3x150+95 3x150 19 14.4  1.7  1x95 19 12.50  1.6 - - - - 41.7 1736
3x150+95+1x16 3x150 19 14.4  1.7  1x95 19 12.50  1.6 1x16 7 4.8 1.2 41.7 1800
3x150+95+2x16 3x150 19 14.4  1.7  1x95 19 12.50  1.6 2x16 7 4.8 1.2 41.6 1865
