Aluminum XHHW-2 Wire 600 Volts

Aluminum XHHW-2 wire is a heavy-duty electrical conductor rated for 600 volts, featuring cross-linked polyethylene (XLPE) insulation. It is widely used in residential, commercial, and industrial wiring for feeders, branch circuits, and conduit systems where high performance, durability, and safety are required.

  1. Home
  2. Aerial Bundle Cable (ABC)
  3. Aluminum XHHW SER SEU RHH RHW-2 XLP USE-2 Cable
  4. Aluminum XHHW-2 Wire 600 Volts
  • slide

Aluminum XHHW-2 Wire 600 Volts

aluminum xhhw-2 wire 600 volts with xlpe insulation

  • Conductor 8000 Series Aluminum Alloy
  • Insulation Cross-linked polyethylene insulation (XLPE)
  • Voltage 600V

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

Aluminum XHHW-2 Wire Application

XHHW-2 cables are primarily use for power distribution. The cables may be used in wet or dry locations, with conductor temperatures not exceeding 90℃. Voltage rating for XHHW-2 cable is 600V.

XHHW-2 cables are primarily use for power distribution. The cables may be used in wet or dry locations, with conductor temperatures not exceeding 90℃. UL standard 44

Requirements of the National Electrical Code

ASTM standards B 800, B 801

Federal Specification J–C-30B

Sunlight resistant

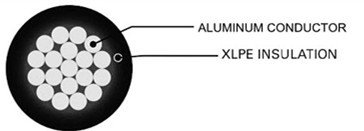

Aluminum XHHW-2 Wire Construction

Aluminum XHHW-2 Wire Construction

Aluminum XHHW-2 Wire Construction

Conductor Compact soft drawn bare 8000 series aluminum, with Class B stranding per ASTM.
Insulation Abrasion, heat and moisture resistant cross-linked polye
thylene insulation (XLPE), low coefficient of friction, “slippery” or “slick” material. It is available in ten solid colors.



Aluminum XHHW-2 Wire Parameter
PWC Part Number Size AWG/ KCM Stranding Conductor Diameter
(inches)		 Insulation Thickness
(inches)		 Overall Diameter
(inches)		 Weight
(lbs/1000’)		 Ampacity at 90°C *
8-01XHHW-2-ALUM 8 7 0.134 0.045 0.227 30 45
6-01XHHW-2-ALUM 6 7 0.169 0.045 0.262 42 55
4-01XHHW-2-ALUM 4 7 0.213 0.045 0.306 58 75
2-01XHHW-2-ALUM 2 7 0.268 0.045 0.361 86 100
1-01XHHW-2-ALUM 1 18 0.299 0.055 0.412 110 115
1/0-01XHHW-2-ALUM 1/0 18 0.335 0.055 0.449 134 135
2/0-01XHHW-2-ALUM 2/0 18 0.378 0.055 0.489 163 150
3/0-01XHHW-2-ALUM 3/0 18 0.423 0.055 0.536 200 175
4/0-01XHHW-2-ALUM 4/0 18 0.476 0.055 0.588 247 205
250-01XHHW-2-ALUM 250 35 0.520 0.065 0.653 296 230
300-01XHHW-2-ALUM 300 35 0.571 0.065 0.703 359 260
350-01XHHW-2-ALUM 350 35 0.614 0.065 0.749 401 280
400-01XHHW-2-ALUM 400 35 0.657 0.065 0.792 453 305
500-01XHHW-2-ALUM 500 35 0.736 0.065 0.869 556 350
600-01XHHW-2-ALUM 600 58 0.816 0.080 0.979 679 385
700-01XHHW-2-ALUM 700 58 0.877 0.080 1.040 782 425
750-01XHHW-2-ALUM 750 58 0.909 0.080 1.071 833 435
900-01XHHW-2-ALUM 900 58 0.999 0.080 1.169 983 480
1000-01XHHW-2-ALUM 1000 58 1.059 0.080 1.223 1090 500
