19/33kV Screened MV ABC Cable–Aerial Bundled Cables to IEC 60502

The 19/33kV Screened Medium Voltage Aerial Bundled Cable (ABC) designed in accordance with IEC 60502 standards is used for overhead power distribution in various environments. This cable features aluminum conductors with XLPE insulation, a screening layer for safety and performance, and protective outer sheaths such as HDPE, suitable for outdoor aerial applications.

  1. Home
  2. Aerial Bundle Cable (ABC)
  3. Medium Voltage ABC Cable
  4. 19/33kV Screened MV ABC Cable–Aerial Bundled Cables to IEC 60502
  • slide

19/33kV Screened MV ABC Cable–Aerial Bundled Cables to IEC 60502

19/33kV Screened MV ABC Cable–Aerial Bundled Cables to IEC 60502

  • Conductor Compact stranded hard drawn Aluminium Conductor ( Class2)
  • Conductor Screen Extruded semi-conductive layer
  • Insulation Cross-linked polyethylene (Natural)
  • Insulation Screen Extruded semi-conductive layer
  • Metallic Screen Copper wire screen or copper tape screen
  • Sheath HDPE

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

Screened MV ABC Cable Application:

Three XLPE insulated screened cores are bundled around the galvanized steel wires in a right hand lay.Primarily used for overhead service applications such as street lighting,outdoor lighting,and temporary service for construction. To be used at votages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75℃ for polyethylence insulated conductors or 90℃ for crossliked polyethylene(XLPE) insulated conductors

Screened MV ABC Cable Strandard

IEC 60502

Screened MV ABC Cable Construction

Phase Conductor Circular Compacted Stranded H68 Aluminium ( Class 2)
Conductor Screen Extruded Semi-conductive Layer.
Insulation XLPE.
Insulation Screen Extruded Semi-conductive Layer.
Metallic Screen Copper wire screen or copper tape screen
Separator Semi-conductive swellable tape.
Outer Sheath HDPE.
Support Conductor Galvanized steel wires.
Assembly XLPE insulated screened cores are bundled around the galvanized steel wires in a right hand lay

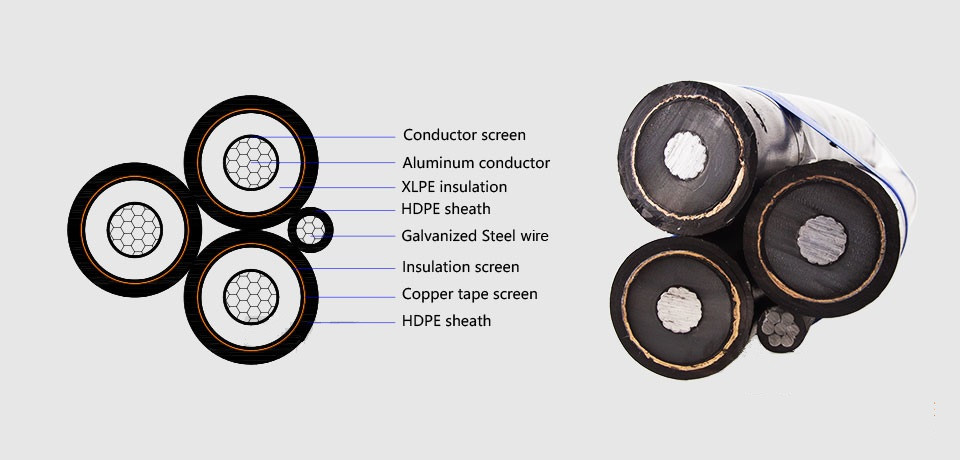

Screened MV ABC Cable Construction

Screened MV ABC Cable Construction

Screened MV ABC Cable Technical Data

Temperature :
- Normal operation 90°C.

- Emergency over load conditions 130°C.

- Short circuit conditions 250°C.

19/33kV Screened MV ABC Cable–Aerial Bundled Cables to IEC 60502 Parameter

NO.Cores X
Nominal Cross Section		 Phase Conductor Messenger Suspension Unit Contiuous Current Rating
at 300C Ambient Temp

Stranding Nominal Sectional Area Stranding Nominal Sectional Area Breaking Load
No.×mm² No.×mm mm2 No.×mm mm2 KN A
3X50 + 1X50 19/1.78 50 7/3.0 50 60 165
3X150 + 1X50 37/2.25 150 7/3.0 50 60 315
3X185+ 1X70 37/2.52 185 7/3.57 70 91 355
3X70+1X50 19/2.14 70 7/3.15 50 62 250
3X150 +1X50 37/2.25 150 7/3.15 50 62 370
