6.35/11kV & 12.7/22kV Non Screened MV ABC Cable Aerial Bundled Cables to AS/NZS 3599.1

The Non-Screened Medium Voltage Aerial Bundled Cables (ABC) rated at 6.35/11kV and 12.7/22kV, compliant with AS/NZS 3599.1, are designed for overhead power distribution applications. These cables feature aluminum conductors with XLPE insulation and outer protective sheaths, optimized for outdoor aerial installation without screening layers.

  1. Home
  2. Aerial Bundle Cable (ABC)
  3. Medium Voltage ABC Cable
  4. 6.35/11kV & 12.7/22kV Non Screened MV ABC Cable Aerial Bundled Cables to AS/NZS 3599.1
  • slide

6.35/11kV & 12.7/22kV Non Screened MV ABC Cable Aerial Bundled Cables to AS/NZS 3599.1

6.35/11kV & 12.7/22kV Non Screened MV ABC Cable Aerial Bundled Cables to AS/NZS 3599.1

  • Conductor Compact stranded hard drawn Aluminium Conductor ( Class2)
  • Conductor Screen Extruded semi-conductive layer
  • Insulation Cross-linked polyethylene (Natural)
  • Insulation Screen Extruded semi-conductive layer
  • Metallic Screen Copper wire screen or copper tape screen
  • Sheath HDPE

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

Non Screened MV ABC Cable Application

Non screened abc cable to AS/NZS 3599.1 is a new type of aerial cable for power transmitting. It is extensively used in overhead power transmission line. Used as bare overhead transmission cable and as primary and secondary distribution cable.

Cable Strandard

AS/NZS 3599.1

Non Screened MV ABC Cable Construction

Phase Conductor Circular Compacted Stranded H68 Aluminium ( Class 2)
Conductor Screen Extruded Semi-conductive Layer.
Insulation XLPE.
Insulation Screen Extruded Semi-conductive Layer.
Outer Sheath HDPE.
Support Conductor Aluminium Alloy Conductor (AAAC/1120).
Assembly Three XLPE Insulated Cores are Bundled Around the AAAC/1120 Support Conductor in a Right Hand Lay.

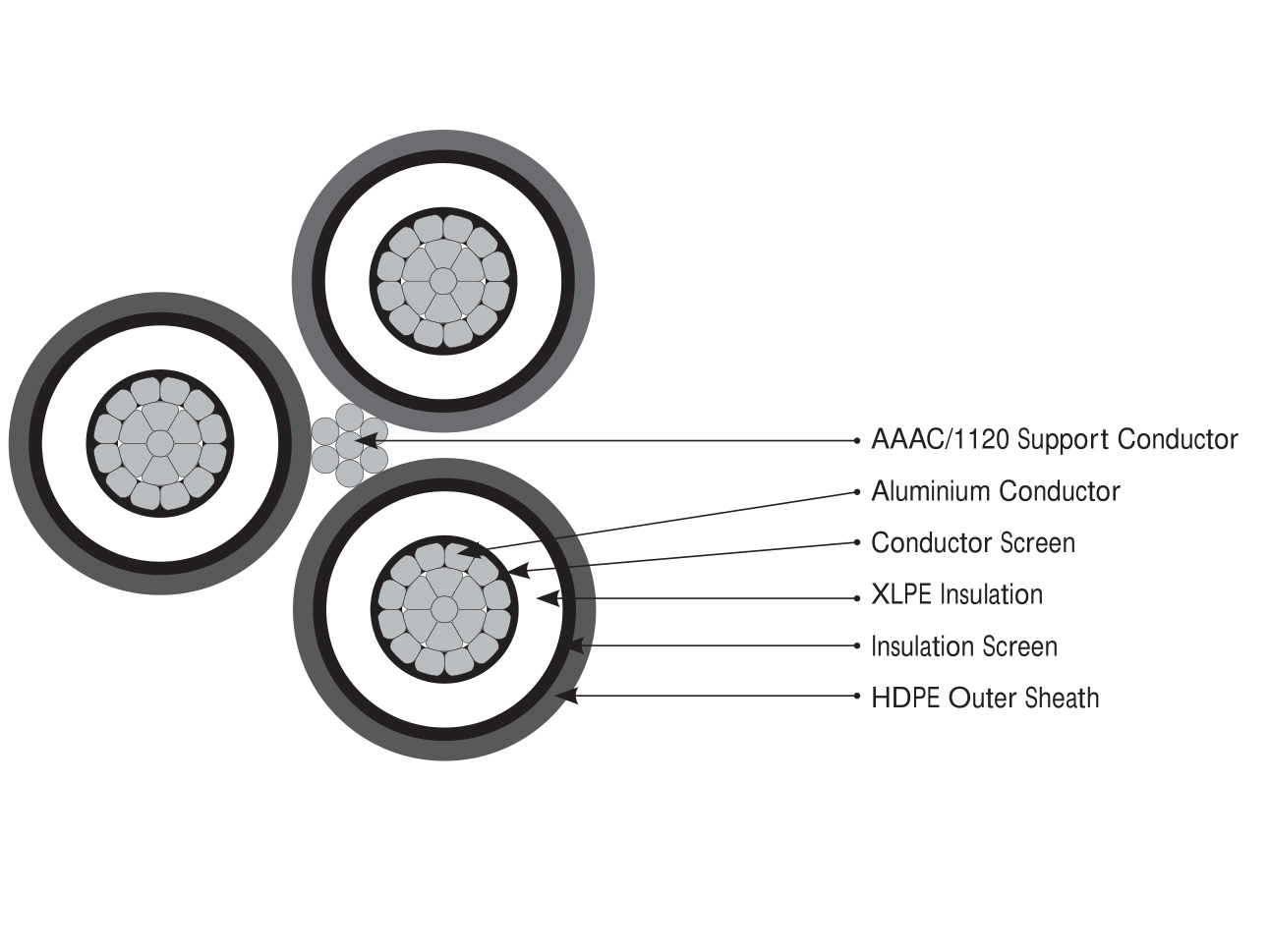

Non Screened MV ABC Cable Construction

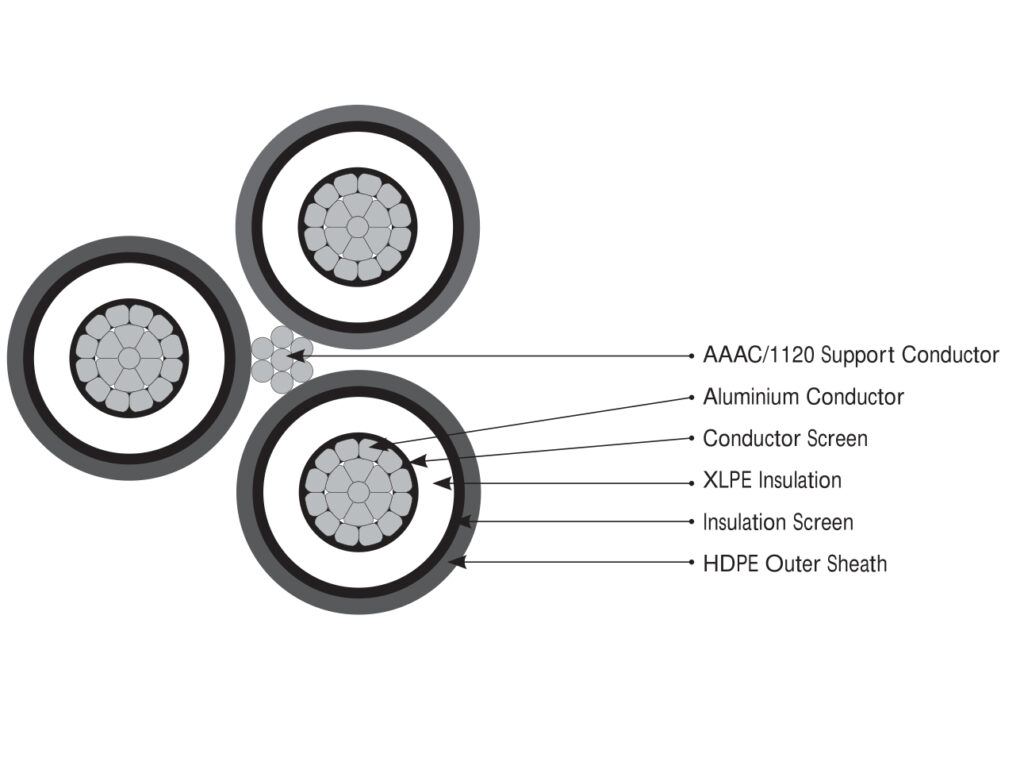

Non Screened MV ABC Cable Construction

Screened MV ABC Cable Technical Data

Temperature :
- Normal operation 90°C.

- Emergency over load conditions 130°C.

- Short circuit conditions 250°C.

Parameter

Number of Cores x Nominal Cross Section Nominal Conductor Diameter Nominal Insulation Thickness Nominal Insulation Screen Thickness Nominal Sheath Thickness AAAC/1120 Support Conductor size Nominal Overall Diameter Weight Continuous Current Rating, A
Still Air 1m/s Wind 2m/s Wind
mm^2 mm mm mm mm No/mm mm kg/km A A A
6.35/11kV Aerial Bundled Cable
3x35 6.9  3.4 0.8 1.2 7/4.75 52.4 1370 110 155 185
3x50 8.1 3.4 0.8 1.2 7/4.75 54.6 1530 130 185 225
3x70 9.7 3.4 0.8 1.2 7/4.75 57.8 1790 160 235 280
3x95 11.4 3.4 0.8 1.2 7/4.75 61.3 2100 195 285 345
3x120 12.8 3.4 0.8 1.2 19/3.50 67.3 2540 230 335 405
3x150 14.2 3.4 0.8 1.2 19/3.50 70.1 2840 255 380 460
3x185 15.7 3.4 0.8 1.2 19/3.50 73.1 3190 295 440 530
12.7/22kV Aerial Bundled Cable
3x35 6.9 5.5 0.8 1.2 7/4.75 61 1780 110 155 180
3x50 8.1 5.5 0.8 1.2 7/4.75 63.3 1970 130 185 220
3x70 9.7 5.5 0.8 1.2 7/4.75 66.5 2260 160 230 275
3x95 11.4 5.5 0.8 1.2 7/4.75 69.9 2600 195 285 335
3x120 12.8 5.5 0.8 1.2 19/3.50 75.9 3070 225 330 395
3x150 14.2 5.5 0.8 1.2 19/3.50 78.7 3390 255 375 450
3x185 15.7 5.5 0.8 1.2 19/3.50 81.7 3760 290 435 520
