NFC 33-209 Aerial Bundle Conductor ABC Cable 3×50+54.6+2x16mm2

The NFC 33-209 Aerial Bundle Conductor (ABC) Cable 3x50+54.6+2x16mm² is a pre-assembled overhead power distribution conductor designed for medium voltage applications, typically up to 33kV. This configuration includes three 50mm² conductors, one 54.6mm² conductor, and two 16mm² conductors twisted together, optimized for efficient and reliable electrical distribution in overhead networks.

  1. Home
  2. Aerial Bundle Cable (ABC)
  3. NFC 33-209 ABC Cable
  4. NFC 33-209 Aerial Bundle Conductor ABC Cable 3×50+54.6+2x16mm2
  • slide

NFC 33-209 Aerial Bundle Conductor ABC Cable 3x50+54.6+2x16mm2

Twist Cable 3X50+54.6+2X16mm2 Aluminum Overhead ABC Preassemble Cable

  • Conductor Stranded Round Aluminum Conductor
  • Insulation XLPE
  • Voltage 0.6/1kV
  • Number of cores 3+1+2 Core
  • Package 100 Meters One Roll with Export Wooden Case & Pallet

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

ABC Cable 3x50+54.6+2x16mm2 Application

Aerial Bundled Cable is designed for residential and rural areas for reducing the bushfire Aerial Bundled Cable is designed for residential and rural areas for reducing the bushfire hazards. The XLPE covering contains a high level of carbon black for UV resistance. It is designed for where reliability, safety and low installation cost are required, but it is only for short spans due to increased weight. To be used at 600V or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulated or 90°C for cross linked.

ABC Cable 3x50+54.6+2x16mm2 Standard

Aerial Bundled Conductors are manufactured to National French Standard NFC 33-209.

CONSTRUCTION :

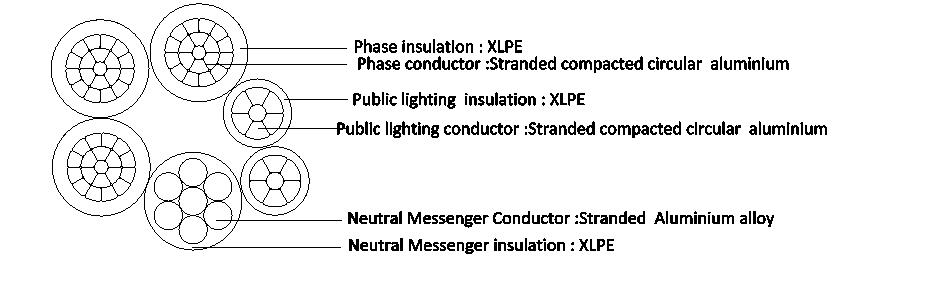

ABC Cable 3x50+54.6+2x16mm2 Construction

ABC Cable 3x50+54.6+2x16mm2 Construction

ABC Cable 3x50+54.6+2x16mm2 Construction

Phase Conductor Aluminium conductor, round stranded compressed (RM).
Neutral Conductor Alloy aluminium conductor  round stranded compressed (RM).
Lighting Conductor Aluminium conductor, round stranded (RM).
Insulation XLPE

ABC Cable 3x50+54.6+2x16mm2 Technical Data

Rated voltage kV 0.6/1
Test voltage Veff kV/Hz 4/50
Laying temperature °C min. -5
Operating temperature °C -15 ~ +90
Conductor temperature °C max. +90
Short-circuit temperature °C/s max. +250 /5
Bending radius (min.) mm 15 × Ø of cable

ABC Cable 3x50+54.6+2x16mm2 Parameter

Aerial Bundle Cable 3x50+1x54.6+2x16mm2
Phase conductor
Cross section area mm2 50
Number of wires No 7
Insulation thickness mm 1.6
D.C. Resistance at 20℃ Ω/km 0.641
Messager conductor
Cross section area mm2 54.6
Number of wires No 7
Insulation thickness mm 1.6
D.C. Resistance at 20℃ Ω/km 0.63
Minium Breaking Strength daN 1660
Public lighting conductor
Cross section area mm2 16
Number of wires No 7
Insulation thickness mm 1.2
D.C. Resistance at 20℃ Ω/km 1.91
Cable Overall Diameter mm 36
Cable Weight  kg/km 863
