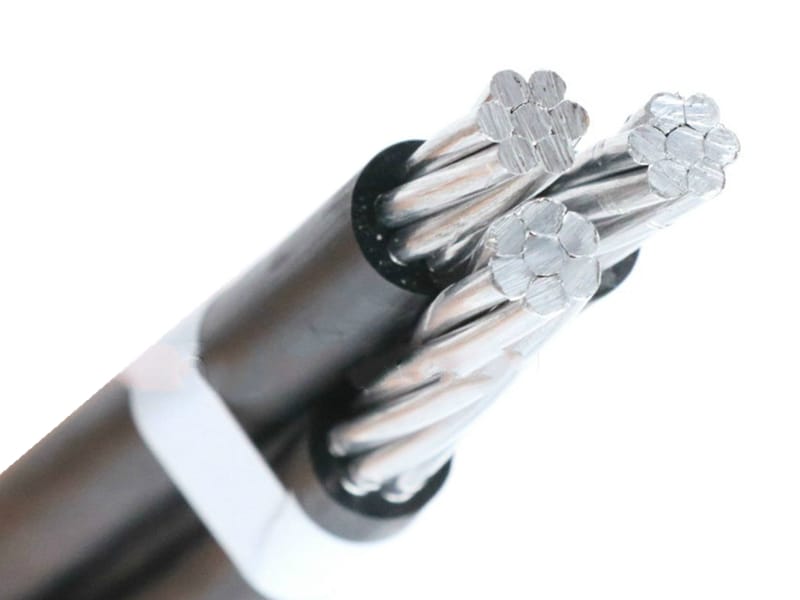

Our Aluminum Conductor Overhead Service Drop Cable Wire (600V) is a robust and reliable solution for efficient power delivery in various overhead service drop applications, including residential, commercial, and industrial settings. This 600V-rated cable features high-quality aluminum conductors and is engineered for overhead installation, typically connecting utility poles to buildings or homes. With its durable construction and robust insulation, it's built to withstand harsh environmental stressors like UV exposure, moisture, and mechanical impact.
The aluminum conductor offers a significant advantage with its reduced weight, making the cable easier to handle and install. This also contributes to excellent electrical conductivity for low-voltage power distribution, ensuring efficient and consistent power flow.

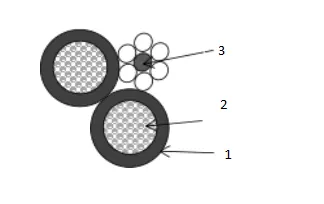

600V Overhead Cable
Key Specifications:
- Rated Voltage: 600V
- Conductor Material: Aluminum
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Operating Temperature: Maximum continuous operating temperature of the conductor should not exceed 90°C.
- Standards: Complies with ICEA S-76-474, ASTM B230, ASTM B231, ASTM B232, or other customer-required standards.
- Packaging: Available in Coils, Steel/Wooden Reels, Wooden Reels, or Steel Reels.
Applications:
This 600V overhead power cable is suitable for use in overhead transmission and distribution systems at 600V or less, making it highly versatile for:
- Utility Power Distribution: Used by utility companies to efficiently distribute electricity from substations to residential, commercial, and industrial customers. It's ideal for short to medium distances in local distribution networks, ensuring a consistent power supply even in adverse weather conditions.
- Rural Electrification: Facilitates the crucial extension of electrical power to rural and remote areas, supporting infrastructure development and enabling communities to access essential electrical services, which promotes economic and social development.
- Temporary Power Supply: Provides quick and easy temporary power solutions for construction sites, festivals, outdoor events, and other short-term projects. It ensures a stable power supply for tools, equipment, and event infrastructure.
- Street Lighting: Powers street lighting systems, traffic signals, and other essential public services, enhancing public safety and visibility at night in urban and suburban environments with reliable illumination.
- Emergency Power Restoration: A critical component for rapidly restoring power after natural disasters or outages. It's extensively used in emergency response operations to re-establish electrical services quickly, providing a dependable solution for rapid deployment in crisis situations.
Features and Benefits:
- Durability: Designed to withstand harsh environmental conditions, including intense UV radiation, extreme temperatures, strong winds, and heavy rain, ensuring a long service life.
- Safety: Constructed with high-quality insulation materials that minimize the risk of electrical faults, significantly reducing the potential for accidents.
- Efficiency: Ensures minimal power loss during transmission, maintaining a reliable and consistent flow of electricity to end-users.
- Flexibility: Available in various configurations (e.g., Duplex, Triplex, Quadruplex) and sizes to meet diverse application requirements.
- Cost-Effectiveness: Offers lower installation and maintenance costs compared to complex underground cable systems, providing a more economical solution for overhead power delivery.
Technical Characteristics of 600V Overhead Cable
| Code word | Size AWG or MCM | Standing | Diameter of Wire | Insulation Thickness | Approx. Overall Diameter | |||
| Phase | Neutral | Phase | Neutral | Mils | mm | |||
| SHEPHERD TERRIER VOLUTA STROMBUS | 1*6+6 1*4+4 2*6+6 2*4+6 | 7 7 7 7 | 6/1 6/1 6/1 6/1 | 1.56 1.96 1.56 1.96 | 1.68 2.12 1.68 1.68 | 45 45 45 45 | 1.14 1.14 1.14 1.14 | 12.12 14.64 13.79 15.51 |
| PERIWINKLE COCKLE CONCH NERITINA | 2*4+4 2*2+4 2*2+2 2*1/0+1/0 | 7 7 7 7 | 6/1 6/1 6/1 6/1 | 1.96 2.47 2.47 3.12 | 2.12 2.12 2.67 3.37 | 45 45 45 60 | 1.14 1.14 1.14 1.52 | 16.46 18.65 19.84 25.30 |
| JANTHINA CENIA RANELLA CAVOLINIA | 2*1/0+2 2*1/0+1/0 2*1/0+2 2*2/0+1 | 7 19 19 7 | 6/1 6/1 6/1 6/1 | 3.12 1.89 1.89 3.50 | 2.67 3.37 2.67 3.00 | 60 60 60 60 | 1.52 1.52 1.52 1.52 | 23.79 25.42 23.92 26.14 |
| RUNCINA TRITON MURSIA CERAPUS | 2*2/0+2/0 2*2/0+2/0 2*3/0+3/0 2*4/0+2/0 | 7 19 19 7 | 6/1 6/1 6/1 6/1 | 3.50 2.13 2.39 2.68 | 3.78 3.78 4.25 3.78 | 60 60 60 60 | 1.52 1.52 1.52 1.52 | 27.82 28.03 30.90 31.98 |
| ZUZARA LIMPET CHOLA HACKNEY | 2*4/0+4/0 2*336.4+336.4 3*6+6 3*4+4 | 19 19 7 1 | 6/1 6/1 6/1 6/1 | 2.68 3.38 1.56 1.96 | 4.77 3.47 1.68 2.12 | 60 80 45 45 | 1.52 2.03 1.14 1.14 | 34.11 42.85 15.86 18.83 |
| PALOMINO COSTENA GRULLO APPALOOSA BRONCO HURRICAANE | 3*2+2 3*1/0+1/0 3*2/0+2/0 3*4/0+4/0 3*336.4+336.4 3*500+336.4 | 7 19 19 19 19 37 | 6/1 6/1 6/1 6/1 6/1 26/7 | 3.12 1.89 2.13 2.68 3.38 2.95 | 2.67 3.37 3.78 4.77 3.47 2.89/2.25 | 45 60 60 60 80 95 | 1.14 1.52 1.52 1.52 2.03 2.41 | 22.60 29.00 31.92 38.69 48.79 57.61 |
600V Overhead Cable Installation Considerations:
Support Structures: Requires poles or towers for proper installation and support.
Clearance: Must be installed with adequate clearance to prevent interference with trees, buildings, and other structures.
Regulations: Installation must comply with local and national electrical codes and standards to ensure safety and reliability.
