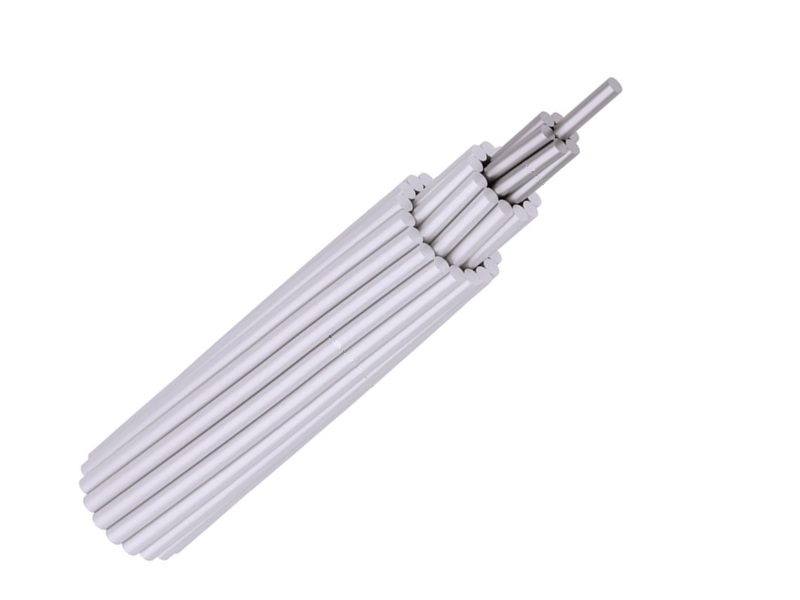

ACSR Cable Construction Chart
| Component |
Description |
| Conductor |
Hard-drawn 1350-H16 aluminum wires |

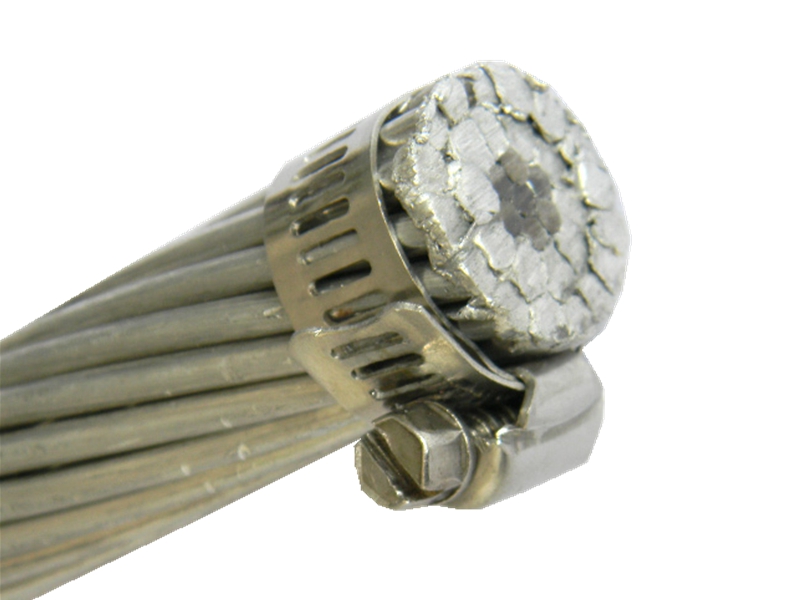

| Core |
Galvanized steel wire(s), single or stranded |

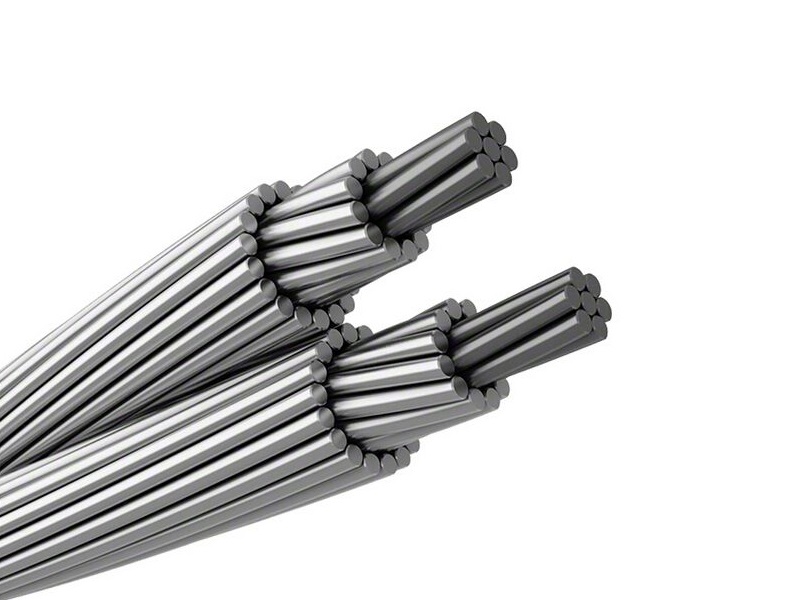

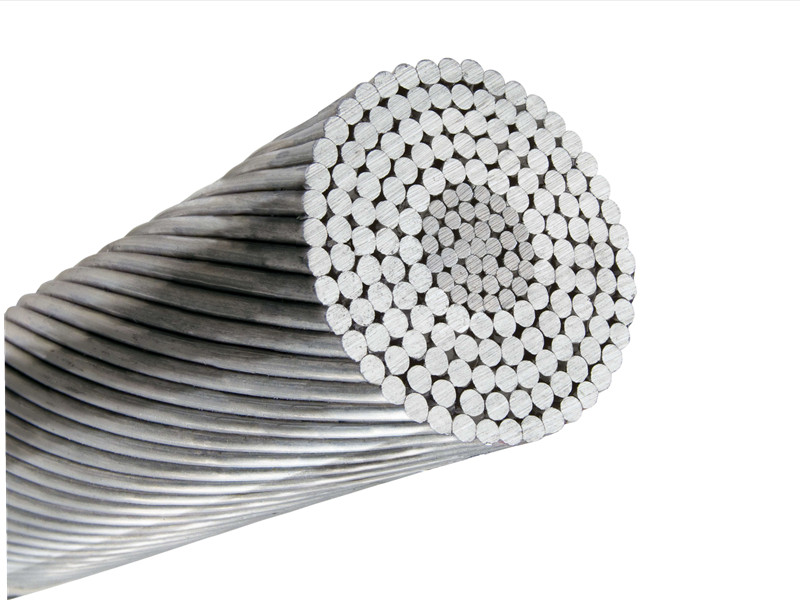

| Stranding |
Aluminum wires concentrically stranded around the steel core |
| Typical Ratio |
Aluminum : Steel cross-section ratio varies (e.g., 6/1, 18/1, 26/7, etc.) |
Example: ACSR “Drake” – 26/7 (26 aluminum strands around 7 steel strands).
Key Features
-
High tensile strength – suitable for long spans
-
Lightweight and high conductivity
-
Excellent performance under ice/wind load conditions
-
Customizable stranding and sizes
-
Available with anti-corrosion grease for harsh environments
Applications of ACSR Conductors
-
Overhead power transmission lines (medium to high voltage)
-
Primary and secondary distribution systems
-
River crossings and mountainous spans
-
Areas requiring high mechanical strength and conductivity

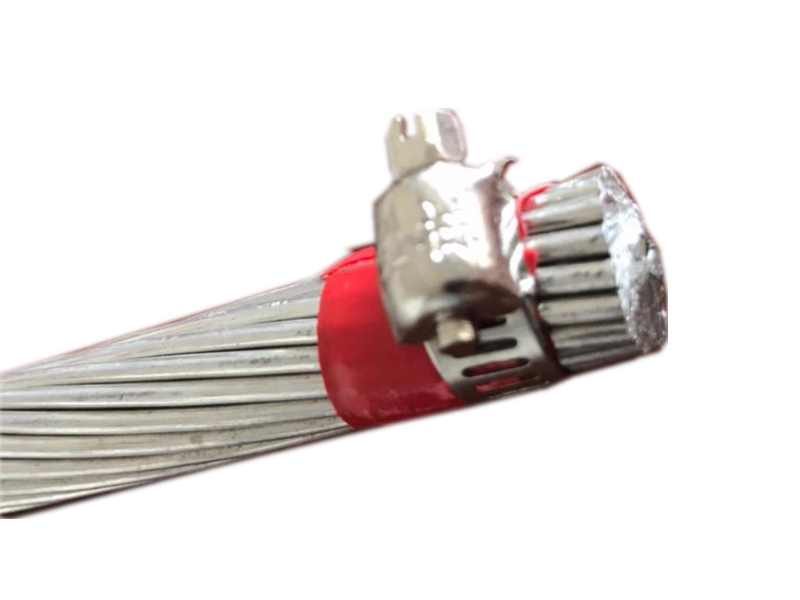

Why Choose TOT as Your ACSR Conductor Manufacturer?
TOT Wire & Cable is a professional ACSR conductor supplier, delivering quality cables for global utility, industrial, and EPC projects.
-
Full compliance with ASTM, IEC, BS standards
-
Wide size range from #6 AWG to 1113 MCM (or custom)
-
Fast delivery for bulk orders
-
Competitive factory pricing
-
Export-ready packaging and documentation
Contact us now for pricing, samples, or datasheets.

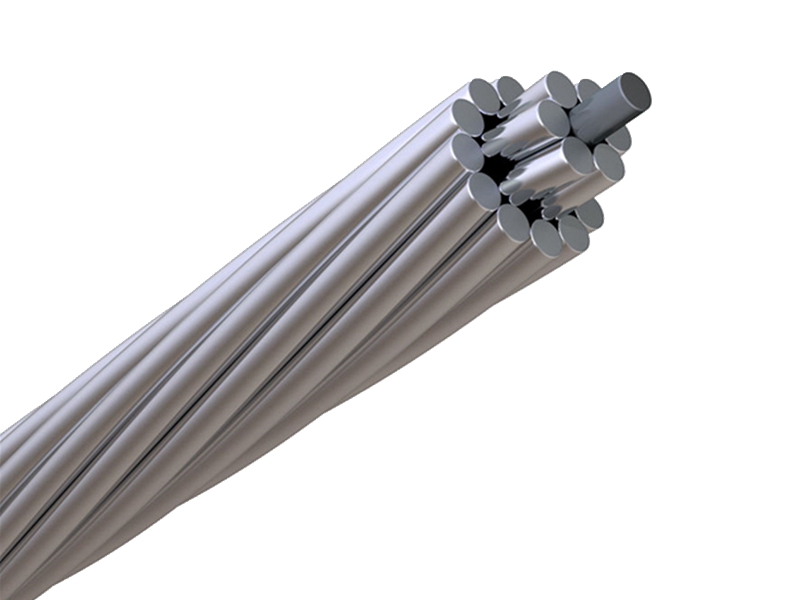

Common ACSR Conductor Types (Examples)
| Code Name |
Stranding |
Cross-Section |
Approx. OD |
Rated Strength |
Standards |
| Drake |
26/7 |
477 MCM |
28.1 mm |
13,200 lbs |
ASTM B232 |
| Dog |
6/1 |
100 mm² |
11.2 mm |
9.3 kN |
BS 215 |
| Rabbit |
6/1 |
50 mm² |
8.1 mm |
5.2 kN |
BS 215 |
Frequently Asked Questions
Q: What’s the difference between ACSR and AAAC?
A: ACSR includes a steel core for higher strength, while AAAC is all-aluminum alloy – better for corrosion resistance but lower in tensile strength.
Q: Can you supply greased ACSR for coastal areas?
A: Yes, we can apply anti-corrosion grease and PE wrapping for marine or humid environments.
Q: What’s your minimum order quantity?
A: MOQ depends on size, usually starts from 3 km. Contact us for details.
