ACSR Fox Conductor 35mm2 Application:
ACSR – The full name: Aluminum Conductor Steel Reinforced. Aluminum Conductor Steel Reinforced is used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
FEATURES
ACSR Fox Conductor 35mm2 Features:
With simple structure, the aluminum conductor steel reinforced is easy to set up and maintain, with low cost and high transmission capacity. It is advantageous for this ACSR to be put up across a valley or river or under other various special geographic conditions. The ACSR has advantages of sound electrical conductivity, high mechanical strength, high tensile strength, etc, and the pole distance can be lengthened. It is used for power transmission lines with various voltage levels and plays an important role in the electricity transmission field.
Construction
ACSR Fox Conductor 35mm2 Construction:
ACSR fox conductor strands 6 aluminums and 1 steel. But their diameter is the same, and they are 2.79 mm. We can know the overall diameter is 8.37 mm. From the standard, we can know the nominal aluminum area of acsr fox conductor is 35 mm2. When you want to buy acsr fox conductor, you should pay attention to this point. It isn’t suitable for the standard, and it is reasonable. The total sectional area is 42.77 mm2. After the cabling, the total linear mass is 149kg/km.
Through the test, the calculated breaking load should be 1320daN. At the 20℃, calculate D.C. resistance should be 0.7822.

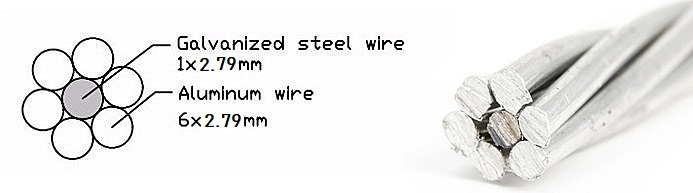

ACSR Fox Conductor 35mm2 Construction
