ACSR Rabbit Conductor 50mm2 Application:
ACSR – The full name: Aluminum Conductor Steel Reinforced. Aluminum Conductor Steel Reinforced is used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
FEATURES
ACSR Rabbit Conductor 50mm2 Features:
With simple structure, the aluminum conductor steel reinforced is easy to set up and maintain, with low cost and high transmission capacity. It is advantageous for this ACSR to be put up across a valley or river or under other various special geographic conditions. The ACSR has advantages of sound electrical conductivity, high mechanical strength, high tensile strength, etc, and the pole distance can be lengthened. It is used for power transmission lines with various voltage levels and plays an important role in the electricity transmission field.
Construction
ACSR Rabbit Conductor 50mm2 Construction:
The nominal aluminum area of acsr rabbit conductor is 50 mm2. it strands aluminum and steels with the same diameter. Their diameter is 3.35 mm. Among them, the aluminum number is 6, and the steel number is 1. From the accurate calculation, we can know the overall diameter is 10.05 mm. The sectional area of aluminum is 52.88 mm2, and total sectional area is 61.70 mm2. After the final cabling of acsr rabbit conductor, the total linear mass should be 214 kg/km. You can use this simple data to test if it is qualified. There are other acsr rabbit conductor specifications. For example, the calculated breaking load 1835 daN, and the calculated D.C resistance is 0.5426 Ω/km at 20 ℃. When rabbit conductor is working, the current rating should be 185A.

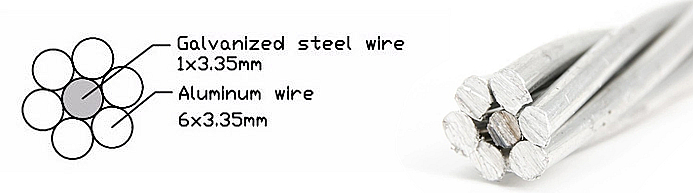

ACSR Rabbit Conductor 50mm2 Construction
