Annealed Copper Stranded Wire for Electrical Purpose (WOAS)

Our Annealed Copper Stranded Wire (WOAS) is manufactured from high-quality, annealed copper strands to ensure excellent flexibility, superior electrical conductivity, and ease of handling. Designed specifically for electrical applications, this wire features a stranded construction that enhances flexibility and reduces breakage during installation and operation. Ideal for wiring, grounding, and various electrical connections, the WOAS copper wire complies with industry standards for quality and safety, offering reliable performance in diverse electrical systems.

  1. Home
  2. Bare Stranded Conductors
  3. Bare Copper Stranded Conductor
  4. Annealed Copper Stranded Wire for Electrical Purpose (WOAS)
  • slide

Annealed Copper Stranded Wire for Electrical Purpose (WOAS)

Copper Wire WOAS

  • Shape of conductor Hard-drawn copper stranded wire
  • Sectional area 0.5-1000mm2
  • Insulation N/A
  • Standard KS C 3103, KS C IEC 60228

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

Annealed Copper Stranded Wire for Electrical Purpose (WOAS) APPLICATION

Electric conductor etc.

Standard

KS C 3103, KS C IEC 60228

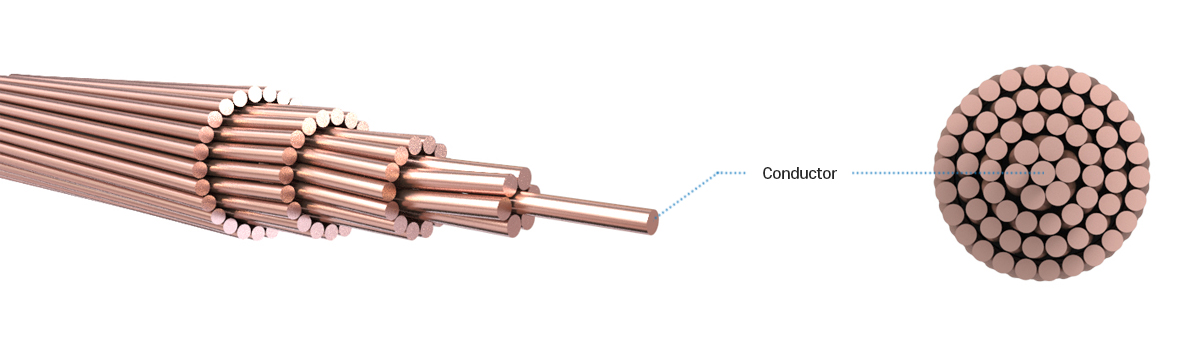

Construction

Annealed copper stranded wire Conductor

Annealed copper stranded wire Conductor



Annealed Copper Stranded Wire for Electrical Purpose (WOAS) Parameter
Nominal
Sectional
Area		 No. & Dia.
of
Wire		 Calculated
Section
Area		 Overall
Diameter		 Weight Max.
Conductor
Resistance
at 20℃		 Length Weight
㎟ No./㎜ ㎟ ㎜ ㎏/㎞ Ω/㎞ m/reel ㎏/reel
1,000 127/3.2 1,021 41.6 9,315 0.0173 300 2,795
850 127/2.9 838.8 37.7 7,651 0.0211 300 2,295
725 91/3.2 731.8 35.2 6,655 0.0241 300 1,997
600 91/2.9 601.1 31.9 5,166 0.0293 300 1,550
500 61/3.2 490.6 28.8 4,448 0.0359 300 1,334
400 61/2.9 402.9 26.1 3,654 0.0454 300 1,096
325 61/2.6 323.8 23.4 2,937 0.0543 300 881
250 61/2.3 253.5 20.7 2,298 0.0694 300 689
200 37/2.6 196.4 18.2 1,776 0.0893 500 888
150 37/2.3 153.7 16.1 1,390 0.114 600 834
125 19/2.9 125.5 14.5 1,129 0.139 600 677
100 19/2.6 100.9 13.0 907.6 0.173 600 545
80 19/2.3 78.95 11.5 710.3 0.221 1,000 710
60 19/2.0 59.70 10.0 537.0 0.292 1,000 537
50 19/1.8 48.36 9.0 435.1 0.361 1,000 435
38 7/2.6 37.16 7.8 334.4 0.470 300 100
30 7/2.3 29.09 6.9 261.7 0.600 300 79
22 7/2.0 21.99 6.0 197.9 0.793 300 59
14 7/1.6 14.08 4.8 126.7 1.24 500 63
8 7/1.2 7.917 3.6 71.19 2.20 500 36
5.5 7/1.0 5.498 3.0 49.46 3.17 500 25
3.5 7/0.8 3.519 2.4 31.66 4.96 500 16
2.0 7/0.6 1.979 1.8 17.80 8.82 500 9
1.4 7/0.5 1.357 1.5 12.37 12.7 500 6
1.25 7/0.45 1.113 1.35 10.02 15.8 500 5
0.9 7/0.4 0.8799 1.2 7.913 20.0 500 4
