GSW-Galvanized Steel Wire Conducutor IEC 61089 Standard

Our GSW Galvanized Steel Wire Conductor is manufactured in strict accordance with the IEC 61089 standard, ensuring high quality, reliability, and performance for electrical and structural applications. This galvanized steel wire is produced by applying a protective zinc coating to steel wire to enhance corrosion resistance and durability. It offers excellent tensile strength, flexibility, and longevity, making it ideal for overhead power lines, guy wires, earthing, and grounding systems. Compliance with IEC 61089 guarantees that the conductor meets international standards for dimensions, galvanization quality, and mechanical properties, providing a dependable solution for global infrastructure projects.

  1. Home
  2. Bare Stranded Conductors
  3. Guy Wire
  4. GSW-Galvanized Steel Wire Conducutor IEC 61089 Standard
  • slide

GSW-Galvanized Steel Wire Conducutor IEC 61089 Standard

GSW-Galvanized Steel Wire Conducutor IEC 61089 Standard

  • Shape of conductor circular and sectional
  • Conductor Material Galvanized Steel Wire Stranded
  • Insulation N/A
  • Standard IEC 61089

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

GSW-Galvanized Steel Wire Conducutor
GSW WIRE APPLICATION

Galvanized steel wire also names GSW Wire ,Messenger Wire, Overhead Ground or Stay Wire, Guy Wire, GI Wire
Galvanized steel strand wire can be used as ground wire of overhead line, but also can be used as structural cable, supporting cable, cable, block cable and cable reinforcement core. It is made of wire twisted together. There are mainly ASTM standards, BS standards, IEC standards and other production standards. It is widely used in energy, construction, bridge, water conservancy and geotechnical engineering.

Standard

ASTM A475, ASTM A363, IEC 61089 BS183:1972 and ect.Other International Standard.

CONSTRUCTION

1.The single wires are concentrically stranded and wrapped helically around a central wire.
2.Zinc-coated grade of steel strand wire /guy wire : Class A ,Class B and class C.
Concentrically stranded Galvanized steel wire strand available in class “A”, “B” and “C” galvanizing, “A” being the least heavy and “C” being the most heavy.

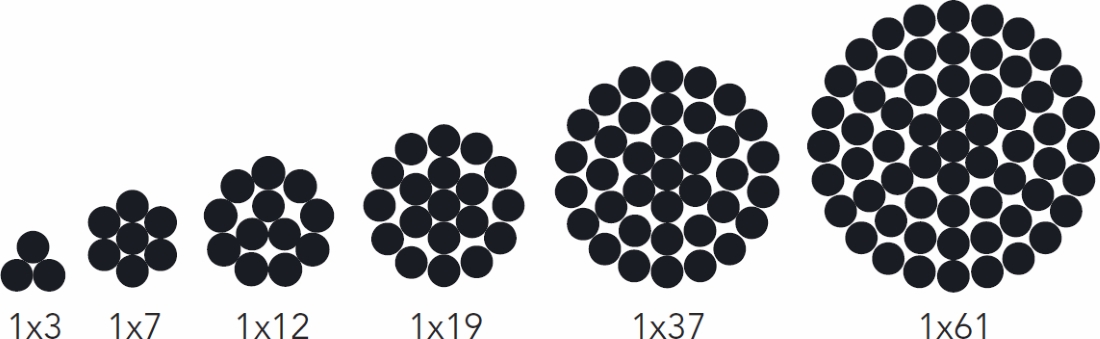

GSW-Galvanized Steel Wire Conducutor Construction

GSW-Galvanized Steel Wire Conducutor Construction

GSW Wire IEC 61089 Standard
Code
 No.		 Section
Area		 No. / Dia of Wire Approx. Overall
Dia.		 Approx.
Weight		 Breaking Load
S1A S1B S2A S3A
mm2 No./mm mm kg/km kN kN kN kN
4 27.1  7/2.22 6.66 213.3  36.3  33.6  39.3  43.9
6.3 42.7  7/2.79 8.36 335.9  55.9  51.7  60.2  67.9
10 67.8  7/3.51 10.53 553.2  87.4  80.7  93.5  103.0
12.5 84.7  7/3.93 11.78 666.5  109.3  100.8  116.9  128.8
16 108.4  7/4.44 13.32 853.1  139.9  129.0  199.7  164.8
16 108.4  19/2.70 13.48 857.0  142.1  131.2  152.9  172.4
25 169.4  19/3.37 16.85 1339.1  218.6  201.6  238.9  262.6
40 271.1  19/4.26 21.31 2141.6  349.7  322.6  374.1  412.1
40 271.1  37/3.05 21.38 2148.1  349.7  322.6  382.3  420.2
63 427.0  37/3.83 26.83 3383.2  550.8  508.1  589.3  649.0
