Copper Airdac SEN Cable

The Copper Airdac SEN Cable is a high-quality electrical cable designed for efficient and reliable signal transmission and control applications. Featuring copper conductors, this cable ensures excellent electrical conductivity, durability, and low signal loss. The Airdac construction provides enhanced flexibility, making it suitable for installations where ease of handling and bending are required. Typically used in industrial, commercial, and infrastructure projects, the SEN (Signal, Earth, or Neutral) designation indicates its suitability for signal wiring, earthing, or neutral connections in complex electrical systems. Manufactured to meet international standards, the Copper Airdac SEN Cable offers robust performance, resistance to environmental factors, and long-term operational stability.

  1. Home
  2. Concentric Service Cable
  3. Copper Concentric Service Cable
  4. Copper Airdac SEN Cable
  • slide

Copper Airdac SEN Cable

Copper Airdac SEN Cable

  • Type of cable Copper Airdac SEN Cable
  • Phase Conductor Copper
  • Insulation XLPE
  • Neutral Conductor Copper Wire
  • Sheath PE (Polyethylene)

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

Airdac SEN Cable Application

For use in electricity supply to houses, 600V. Strung in air from pole top distribution box to houses pre-paid electricity meter / main circuit breaker.

Airdac SEN Cable Standard

SANS 1507-6

CONSTRUCTION

Circular stranded hard drawn copper phase conductor, XLPE insulated with concentrically arranged identified neutral and bare earth conductors. Polyethylene sheathed 600/1000V service connection cable. Nylon ripcord laid under sheath. Manufactured to SANS 1507 -6.

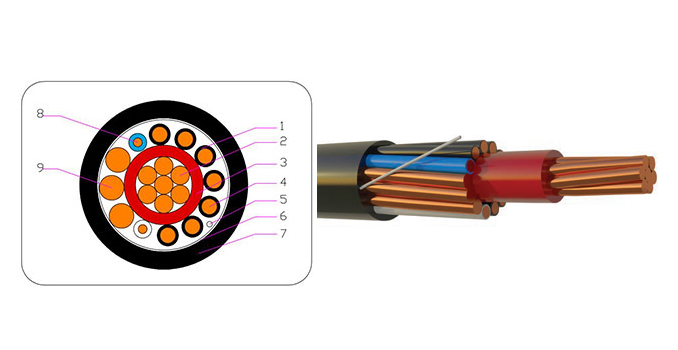

Airdac SEN Cable Construction

Airdac SEN Cable Construction

1.Insulation: black PE (Polyethylene)

2.Phase Conductor: Stranded Copper Conductor

3.Insulation: Red XLPE

4.Neutral Conductor:PE insulated Solid Copper Wire

5.Ripcord: Nylon

6.Binder Tape:Polyester Tape

7.Outer Sheath: Black PE (Polyethylene)

8.Pilot Core: PE Insulated Copper Wire

9.Earth Conductor: 3 bare Solid Copper Wire

CHARACTERISTICS

• Small overall diameter - concentric construction (SNE - Seperate Neutral Earth).
• Lower mass - due to smaller diameter - no steel wire armour.
• Increased safety - reliable earthing.
• Improved reliability - UV stable sheath and core insulation and water blocked.
• Tamper and vandal proof - unauthorised access to phase conductor inhibited by concentric layer.
• Easy strip with nylon ripcord.

SEN Cable Parameter
Size Phase Conductor XLPE  Insulation Earth Conductor Neutral Conductor Pilot Core PE Sheath Approx.
Weight
Structure O.D Thickness O.D Structure Structure Structure Thickness O.D
mm2 No./mm mm mm mm No./mm No./mm No./mm mm mm kg/km
4 7/0.92 2.76 1.0  4.76 3/1.05 7/0.86 2/1.13 1.4 10.0  168
10 7/1.35 4.05 1.0  6.05 3/1.78 7/1.33 2/1.13 1.6 12.7  334
16 7/1.70 5.10  1.0  7.10  3/2.20 7/1.76 2/1.13 1.6 14.5  502
