CVVS Control Cable-Copper Tape Shielded Industrial Cable

CVVS Control Cable

  • Rated Voltage 450/750 Volts
  • Conductor Material soft annealed copper
  • Insulation PVC
  • Sheath PVC
  • Shield Copper Tape

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

CVVS Control Cable Application

For supervisory electrical equipment, station control circuits.Suitable for indoor and outdoor installation in wet or dry locations,in conduit, duct, trench and cable tray.

CVVS Control Cable Standard

KS C IEC 60502-1

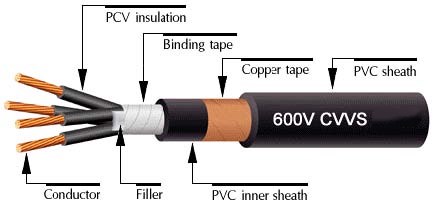

CVVS Control Cable Construction

Conductor:Concentric Stranded copper wire

Insulation:PVC Black color

Identification:Printed White number on the surface of Black insulation

Filler:Suitable filler

Binding tape:Suitable tape

Inner sheath:PVC Black color

Shield:Annealed copper tape

Outher Sheath:PVC Black color

CVVS Control Cable Construction

CVVS Control Cable Construction

Cable Type

Symbol MAX. Operating
Temperature of
Conductor (°C)		 Insulation Materials Sheath Materials Application
CVV 60 PVC PVC General use
CEV 75 Polyethylene PVC
CCV 90 Crosslinked
Polyethylene		 PVC
CEE 75 Polyethylene Polyethylene (Black) Chemical resistance
CCE 90 Crosslinked Polyethylene Polyethylene (Black)

Shield types and symbols

Shield Type Symbol Remarks
Annealed copper tape -S Annealed copper tape is wrapped around cores.
Aluminum laminated plastic tape -SLA Applied for grounding through drain wire.
Annealed copper wire braid -SB Shield is formed by braided copper wire.
Annealed copper tape and steel tape -SCF Annealed copper tape and steel tape are wrapped around cores.
CVVS Control Cable Parameter
Part NO. No.of core Nominal cross-sectional area sq.mm No.&dia.of wires No./mm Thickness of insulation mm Thickness of inner sheath mm Thickness of outer sheath mm Overall diameter (Approx.) Maximum conductor resistance (at 20C) Minimum insulation resistance Cable weight
mm Ohm/km (at 70C) (Approx.)
　 　 Ohm/km kg/km
CVVS-2C1.00SQ 2 1 7/0.40 0.8 1 1.8 13 18.1 0.0135 205
CVVS-2C1.50Q 1.5 7/0.50 0.8 1 1.8 14 12.1 0.0115 230
CVVS-2C2.50SQ 2.5 7/0.67 0.8 1 1.8 15 7.41 0.0093 280
CVVS-2C4.00SQ 4 7/0.85 1 1 1.8 17 4.61 0.0092 375
CVVS-2C6.00SQ 6 7/1.04 1 1 1.8 18.5 3.08 0.0078 450
CVVS-3C1.00SQ 3 1 7/0.40 0.8 1 1.8 13.5 18.1 0.0135 225
CVVS-3C1.50Q 1.5 7/0.50 0.8 1 1.8 14.5 12.1 0.0115 260
CVVS-3C2.50SQ 2.5 7/0.67 0.8 1 1.8 15.5 7.41 0.0093 325
CVVS-3C4.00SQ 4 7/0.85 1 1 1.8 18 4.61 0.0092 445
CVVS-3C6.00SQ 6 7/1.04 1 1 1.8 19 3.08 0.0078 545
CVVS-4C1.00SQ 4 1 7/0.40 0.8 1 1.8 14.5 18.1 0.0135 260
CVVS-4C1.50Q 1.5 7/0.50 0.8 1 1.8 15.5 12.1 0.0115 300
CVVS-4C2.50SQ 2.5 7/0.67 0.8 1 1.8 16.5 7.41 0.0093 385
CVVS-4C4.00SQ 4 7/0.85 1 1 1.8 19 4.61 0.0092 530
CVVS-4C6.00SQ 6 7/1.04 1 1 1.8 20.5 3.08 0.0078 660
CVVS-5C1.00SQ 5 1 7/0.40 0.8 1 1.8 15.5 18.1 0.0135 295
CVVS-5C1.50Q 1.5 7/0.50 0.8 1 1.8 16.5 12.1 0.0115 345
CVVS-5C2.50SQ 2.5 7/0.67 0.8 1 1.8 18 7.41 0.0093 445
CVVS-5C4.00SQ 4 7/0.85 1 1 1.8 20.5 4.61 0.0092 620
CVVS-5C6.00SQ 6 7/1.04 1 1 1.8 22.5 3.08 0.0078 780
CVVS-6C1.00SQ 6 1 7/0.40 0.8 1 1.8 16.5 18.1 0.0135 320
CVVS-6C1.50Q 1.5 7/0.50 0.8 1 1.8 17.5 12.1 0.0115 375
CVVS-6C2.50SQ 2.5 7/0.67 0.8 1 1.8 19 7.41 0.0093 290
CVVS-6C4.00SQ 4 7/0.85 1 1 1.8 22 4.61 0.0092 685
CVVS-6C6.00SQ 6 7/1.04 1 1 1.8 24 3.08 0.0078 865
CVVS-7C1.00SQ 7 1 7/0.40 0.8 1 1.8 16.5 18.1 0.0135 330
CVVS-7C1.50Q 1.5 7/0.50 0.8 1 1.8 17.5 12.1 0.0115 395
CVVS-7C2.50SQ 2.5 7/0.67 0.8 1 1.8 19 7.41 0.0093 520
CVVS-7C4.00SQ 4 7/0.85 1 1 1.8 22 4.61 0.0092 730
CVVS-7C6.00SQ 6 7/1.04 1 1 1.8 24 3.08 0.0078 930
