ZC KVV Control Cable is a flame-retardant, unarmoured control cable with soft annealed copper conductors and PVC insulation and sheath. Designed for fixed wiring in control, signaling, and measurement circuits, it offers excellent electrical performance, stable operation, and reliable flame-retardant characteristics.
🔧 Key Features
Flame Retardant (ZC Grade)
Meets stringent flame retardancy requirements to reduce fire risk in indoor applications.High Conductivity Copper
Made from pure, soft-annealed copper for excellent electrical performance.Flexible and Easy to Install
Ideal for fixed installations in trays, conduits, or embedded in walls.Chemical & Oil Resistance
PVC sheath offers basic resistance to oils, chemicals, and moisture.Long Service Life
Stable structure and durable materials for extended use in industrial settings.
Standard
IEC 60227, IEC 60502, GB/T 9330, BS 6500
Types
| Model | Name | Main application |
| KVV | Copper conductor PVC insulated PVC sheathed control cable | For laying indoors, in trenches and in ducts, for fixed installation |
| KVVP | Copper conductor PVC insulated PVC sheathed copper braiding screened control cable | For laying indoors, in trenches and in dusts, for fixed installation |
| KVVP2 | Copper conductor PVC insulated and sheathed control cable with steel tape shield | For laying indoors, in trenches and in dusts and in ground, able to withstand heavier mechanical force, for fixed installation |
| KVV22 | Copper conductor PVC insulated and sheathed control cable with steel tape armour | For laying indoors, in trenches and in dusts and in ground, able to withstand heavier mechanical force, for fixed installation |
| KVVR | Copper conductor PVC insulated flexible control cable | For laying indoors, movable and flexible |
| ZR-KVVRP | Copper conductor PVC insulated PVC sheathed flame retardant flexible control cable with braided shield | Fixed laying indoors with capability of moving and screening |
| ZR-KVV | Copper conductor PVC insulated and sheathed flame retardant control cable | For laying indoors, in trenches, in ducts and for fixed installation, the cable should be flame retardant |
| ZR-KVVP2 | Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape shield | For laying indoors, in trenches, in ducts and for fixed installation, the cable should be flame retardant |
| ZR-KVV22 | Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape armour | For laying indoors, in trenches, in ducts and underground, the cable should be flame-retardant and able to bear beavier external mechanical force, and for fixed installation |
| ZR-KVVR | Copper conductor PVC insulated and sheathed flame retardant flexible control cable | For laying indoors, and the cable should be flexible and movablea |

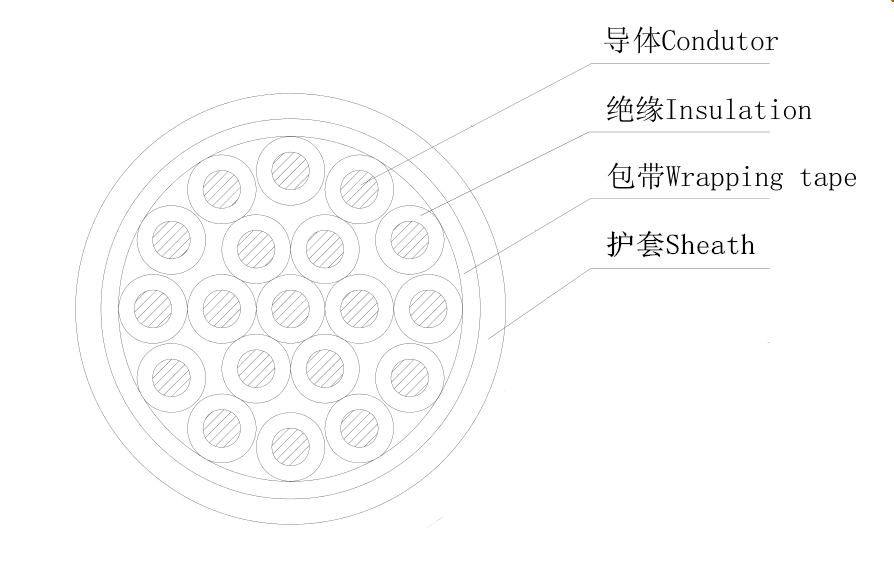

ZC KVV Cable Construction
⚙️ Technical Specifications
| Parameter | Value |
|---|---|
| Rated Voltage | 450/750 Volts |
| Test Voltage | 2.5 kV AC |
| Operating Temperature | -15°C to +70°C |
| Minimum Bending Radius | ≥6× cable outer diameter |
| Flame Retardancy | Compliant with GB/T 19666 / IEC 60332-3 |
| Standards | GB/T 9330, IEC 60227, IEC 60332 |
🏭 Typical Applications
ZC KVV cables are widely used in:
Power stations and substations
Industrial control panels
Automation and instrumentation systems
Internal fixed control wiring
Building management and HVAC systems
📦 Available Sizes
From 0.75 mm² to 10 mm², available in 2 to 61 cores, depending on customer requirements. Custom printing, core identification, and reel lengths available upon request.
