450/750V Halogen Free Polyolefine Insulated Wire HFIX

The 450/750V Halogen-Free Polyolefine Insulated Wire (often designated as HFIX) is a high-quality electrical wire designed for safe and reliable power distribution in various applications.

  1. Home
  2. Electrical Wire
  3. LSOH Electric Wire
  4. 450/750V Halogen Free Polyolefine Insulated Wire HFIX
  • slide

450/750V Halogen Free Polyolefine Insulated Wire HFIX

450/750V Halogen Free Polyolefine Insulated Wire HFIX

  • Conductor Material Copper
  • Insulation Halogen-free thermoplastic polyolefin
  • Voltage 450/750V
  • Number of cores Single Core
  • Package 100 Meters One Roll with Export Wooden Case & Pallet

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

HFIX Wire Application

This wire is mainly used in wiring of electric apparatus and equipment under AC 450/750V grade and halogen free flame-retardant polyolefin insulated wire.

HFIX Wire Standards:

KS C 3341: Flame retardant and low toxic cross-linked polyefin power cable and insulated wire

CONSTRUCTION :

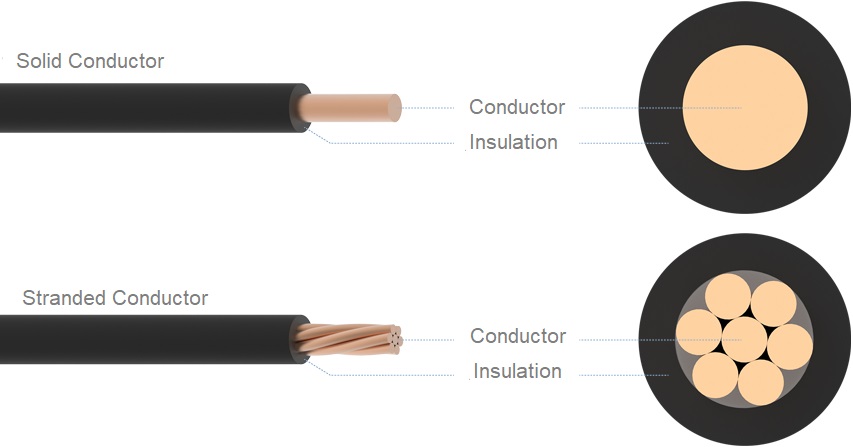

HFIX Wire Construction

HFIX Wire Construction

HFIX Wire Construction

– Conductor : Annealed copper wire for electrical use (solid wire, circular copper wire, circular compressed copper wire)
– Insulator : Low-toxicity flame-resistant polyolefin
– Color of insulator : Black, white, red, green, yellow, blue
– Highest temperature : 90 ℃

TECHNICAL :

HFIX Wire Technical Data
- Working voltage: 450/750
- Test voltage: 2500 volts
- Maximum operating temperature:90º C

HFIX Wire Parameter
Conductor Nominal
Insulation
Thickness		 Overall
Diameter		 Max.
Conductor
Resistance
at 20℃		 Min.
Insulation
Resistance
at 90℃		 Test
Voltage		 Approx.
Weight		 Standard
Length
Nominal
Sectional
Area		 Conductor
Class		 Lower
Limit		 Upper
Limit
mm2 mm mm Ω/km MΩ/km V/5min kg/km m
1.5 1 0.7 2.6 3.3 12.1 0.011 2500 20 300
1.5 2 0.7 2.7 3.4 12.1 0.01 2500 20 300
2.5 1 0.8 3.2 4 7.41 0.01 2500 40 300
2.5 2 0.8 3.3 4.1 7.41 0.009 2500 40 300
4 1 0.8 3.6 4.6 4.61 0.0085 2500 50 300
4 2 0.8 3.8 4.7 4.61 0.0077 2500 50 300
6 1 0.8 4.1 5.2 3.08 0.007 2500 70 300
6 2 0.8 4.3 5.4 3.08 0.0065 2500 70 300
10 1 1.0 5.3 6.6 1.83 0.007 2500 120 300
10 2 1.0 5.6 7 1.83 0.0065 2500 120 300
16 2 1.0 6.4 8 1.15 0.005 2500 170 300
25 2 1.2 8.1 10.1 0.727 0.005 2500 260 300
35 2 1.2 9 11.3 0.524 0.0043 2500 350 300
50 2 1.4 10.6 13.2 0.387 0.0043 2500 480 300
70 2 1.4 12.1 15.1 0.268 0.0035 2500 670 300
95 2 1.6 14.1 17.6 0.193 0.0035 2500 920 300
120 2 1.6 15.6 19.4 0.153 0.0032 2500 1,160 300
150 2 1.8 17.3 21.6 0.124 0.0032 2500 1,430 300
185 2 2.0 19.3 24.1 0.0991 0.0032 2500 1,780 300
240 2 2.2 22 27.5 0.0754 0.0032 2500 2,320 300
300 2 2.4 24.5 30.6 0.0601 0.0030 2500 2,930 300
