10mm2 16mm2 25mm2 Green Yellow Earth Grounding Cable Wire

The 10mm², 16mm², and 25mm² Green-Yellow Earth Grounding Cable Wires are high-quality copper conductors specifically designed for grounding and earthing applications. Featuring a bright green-yellow insulation, these cables ensure clear identification for safety purposes. They provide excellent electrical conductivity, flexibility, and durability, making them suitable for use in residential, commercial, and industrial electrical systems. These grounding wires help protect equipment and personnel by safely directing fault currents to the ground, ensuring overall electrical safety and compliance with safety standards.

  1. Home
  2. Electrical Wire
  3. PVC Electrical Wire
  4. 10mm2 16mm2 25mm2 Green Yellow Earth Grounding Cable Wire
  • 10mm2 16mm2 25mm2 Green Yellow Earth Grounding Cable Wire

10mm2 16mm2 25mm2 Green Yellow Earth Grounding Cable Wire

10mm2 16mm2 25mm2 Green Yellow Earth Grounding Cable Wire

  • Conductor Material Copper Conductor
  • Insulation PVC
  • Voltage 450/750V
  • Number of cores Single Core
  • Package 100 Meters One Roll with Export Wooden Case & Pallet

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

Green Yellow Earth Grounding Cable Wire Application

to supply power to household electrical appliance,Instrument and apparatus, telecommunications equipment and lighting in fixed installation.

Green Yellow Earth Grounding Cable Wire Standards:

IS 694, CENELEC HD 21, IEC 60227, BS 6004, DIN VDE 0281

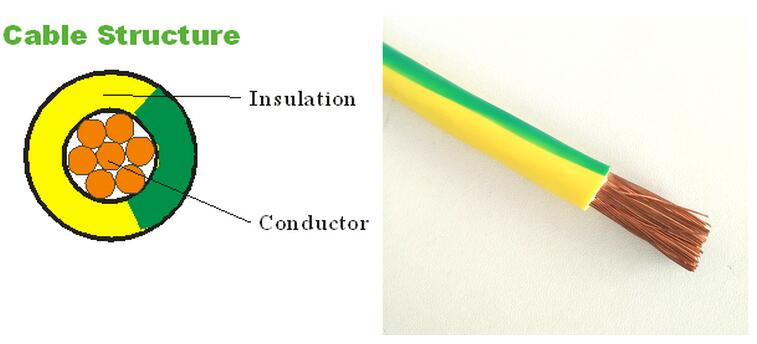

CONSTRUCTION :

Green Yellow Earth Grounding Cable Wire Construction

Green Yellow Earth Grounding Cable Wire Construction

Green Yellow Earth Grounding Cable Wire Construction

Conductor : Stranded bare copper
Insulation: PVC (Polyvinyl chloride)

TECHNICAL :

Green-Yellow Earth Ground Wire Technical Data

Nominal voltage Uo/U   [V] 300 / 500 volt
Test voltage   [V]AC 2000
Temperature range in motion   +5°C till +70°C
Operating temperature short circuit °C 160
Short circuit time max. [sec] 5
Bending radius min. x diameter 4
Flammability standard   EN 60332-1-2
Green Yellow Earth Grounding Cable Wire Parameter
Cross Section Conductor Construction Insulation Thickness Overall Diameter Max Min Insulation Resistance@ 70ºC Weight Approx
(mm2) (No/mm) (mm) (mm) (ohm/Km) (Kg/Km)
1x0.75 7/0.97 0.6 2.8 0.012 11
1x1.0 7/0.43 0.6 3 / 14
1x1.5 7/0.52 0.7 3.4 0.01 21
1x2.5 7/0.67 0.8 4.2 0.009 32
1x4 7/0.85 0.8 4.8 0.008 45
1x6 7/1.04 0.8 5.4 0.007 65
1x10 7/1.35 1 6.8 0.007 110
1x16 7/1.70 1 8 0.005 165
1x25 7/2.14 1.2 9.8 0.005 264
1x35 7/2.52 1.2 11 0.004 360
1x50 19/1.78 1.4 13 0.005 490
1x70 19/2.14 1.4 15 0.004 685
1x95 19/2.52 1.6 17.5 0.004 946
1x120 37/2.03 1.6 19 0.003 1181
1x150 37/2.25 1.8 21 0.003 1453
1x185 37/2.52 2 23.5 0.003 1821
1x240 61/2.24 2.2 26.5 0.003 2383
1x300 61/2.50 2.4 29.5 0.003 2983
1x400 61/2.85 2.6 33.5 0.003 3800
