Cable H05V-K H07V-K PVC Insulated Flexible Electrical Building Wire

H05V-K and H07V-K are flexible PVC-insulated electrical wires commonly used in building wiring. H05V-K is rated for up to 300/500V and is ideal for internal wiring of appliances, lighting, and control circuits where flexibility is needed. H07V-K, with a rating of up to 450/750V, is suitable for fixed wiring in power distribution and more demanding applications within buildings. Both cables are made of copper conductors, are flame retardant, and resistant to mechanical stress, making them reliable choices for indoor electrical installations.

Cable H05V-K H07V-K PVC Insulated Flexible Electrical Building Wire

Cable H05V-K H07V-K

Conductor Material Copper Conductor
Insulation PVC
Voltage 450/750V
Number of cores Single Core
Package 100 Meters One Roll with Export Wooden Case & Pallet

Conatact us

Cable H05V-K H07V-K Application

Cable designed for internal wiring in switch control, relay and instrumentation panels of power switchgear and for purposes such as
stationary, static appliances, internal connectors in rectifier equipment, motor starters and controllers.

Cable H05V-K H07V-K Standards::

DIN EN 50525-2-31, VDE 0285-525-2-31, BS EN 50525-2-31.

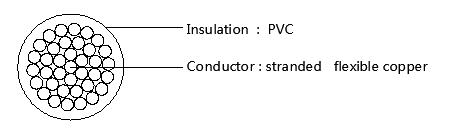

CONSTRUCTION :

Cable H05V-K H07V-K Construction

Conductor Class 5 flexible plain / metal coated stranded according to EN 60228.
Insulation PVC (Polyvinyl chloride) TI1 to BS EN 50363- 3.

TECHNICAL :

Cable H05V-K H07V-K Technical Data
Voltage Rating : H05V-K 0.5 to 1 mm² - 300 / 500V, H07V-K 1.5 to 240 mm² - 450 / 750V
Temperature Range : -30°C to +70°C
Minimum Bending Radius :
Cable diameter ≤ 8 mm : 4 x outer diameter
Approx. diameter > 8 to 12 mm : 5 x outer diameter
Approx. diameter > 12 mm : 6 x outer diameter
Test Voltage : 2500V

Cable H05V-K H07V-K Parameter

Part Number	Nominal CrossSectional Area (Sq. mm)	Nominal Thickness of Insulation (mm)	Mean Overall Diameter		Approx. Cable Weight (kg/km)
Part Number	Nominal CrossSectional Area (Sq. mm)	Nominal Thickness of Insulation (mm)	Lower Limit (mm)	Upper Limit (mm)	Approx. Cable Weight (kg/km)
H05V-K	0.5	0.6	2.1	2.5	9
	0.75	0.6	2.2	2.7	12
	1.0	0.6	2.4	2.8	15
H07V-K	1.5	0.7	2.8	3.4	21
	2.5	0.8	3.4	4.1	33
	4	0.8	3.9	4.8	47
	6	0.8	4.4	5.3	66
	10	1.0	5.7	6.8	112
	16	1.0	6.7	8.1	170
	25	1.2	8.4	10.2	261
	25	1.2	8.4	10.2	261
	35	1.2	9.7	11.7	358
	50	1.4	11.5	13.9	510
	70	1.4	13.2	16.0	927
	95	1.6	15.1	18.2	510
	120	1.6	16.7	20.2	1170
	150	1.8	18.6	22.5	1459
	185	2.0	20.6	24.9	1776
	240	2.2	23.5	28.4	2333
