H05V-R H07V-R PVC Insulated Building Wire

H05V-R and H07V-R are types of PVC-insulated building wires used in electrical installations. H05V-R is rated for up to 300/500V and is suitable for internal wiring of appliances, lighting, and low-voltage applications within buildings. H07V-R, with a rating of up to 450/750V, is designed for fixed wiring in power distribution and control circuits. Both wires are made of copper, are flame retardant, flexible, and resistant to mechanical stress, making them ideal for indoor use in dry or damp environments. They comply with safety standards and provide reliable performance for building electrical systems.

H05V-R H07V-R PVC Insulated Building Wire

Electric Wire and Cable H05V-R H07V-R

Conductor Material Copper Conductor
Insulation PVC
Voltage 450/750V
Number of cores Single Core
Package 100 Meters One Roll with Export Wooden Case & Pallet

Conatact us

H05V-R H07V-R Wire Application

These cables are preferably for installation indoors, in cable ducts and in industrial plants or switching stations, under ground installation. Can be used in switchboards and distributor boards or where a thicker strand of multi-wire is required. Found in electronic and electrical equipment and switchgear cabinets designed for export to a European country and for MRO replacement of European made equipment wire.

H05V-R H07V-R Wire Standards:

DIN VDE 0281-3 DIN EN 60228 BS6004

CONSTRUCTION :

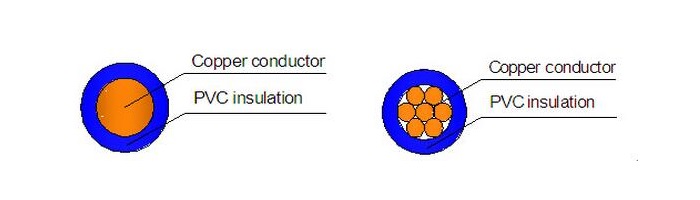

H05V-U H07-U Wire Construction

Conductor : Stranded bare copper
Insulation: PVC (Polyvinyl chloride)

TECHNICAL :

H05V-R H07V-R Wire Technical Data

Nominal voltage Uo/U		[V]	300 / 500 volt
Test voltage		[V]AC	2000
Temperature range	in motion		+5°C till +70°C
Operating temperature	short circuit	°C	160
Short circuit time	max.	[sec]	5
Bending radius	min.	x diameter	4
Flammability	standard		EN 60332-1-2

H05V-R H07V-R Parameter

Cross Section	Conductor Construction	Insulation Thickness	Overall Diameter Max	Min Insulation Resistance@ 70ºC	Weight Approx
(mm2)	(No/mm)	(mm)	(mm)	(ohm/Km)	(Kg/Km)
1x0.75	7/0.97	0.6	2.8	0.012	11
1x1.0	7/0.43	0.6	3	/	14
1x1.5	7/0.52	0.7	3.4	0.01	21
1x2.5	7/0.67	0.8	4.2	0.009	32
1x4	7/0.85	0.8	4.8	0.008	45
1x6	7/1.04	0.8	5.4	0.007	65
1x10	7/1.35	1	6.8	0.007	110
1x16	7/1.70	1	8	0.005	165
1x25	7/2.14	1.2	9.8	0.005	264
1x35	7/2.52	1.2	11	0.004	360
1x50	19/1.78	1.4	13	0.005	490
1x70	19/2.14	1.4	15	0.004	685
1x95	19/2.52	1.6	17.5	0.004	946
1x120	37/2.03	1.6	19	0.003	1181
1x150	37/2.25	1.8	21	0.003	1453
1x185	37/2.52	2	23.5	0.003	1821
1x240	61/2.24	2.2	26.5	0.003	2383
1x300	61/2.50	2.4	29.5	0.003	2983
1x400	61/2.85	2.6	33.5	0.003	3800
