PVC Insulated Wire (60227 KS IEC 01), 450/750V IV

The 450/750V IV PVC insulated wire is designed for internal wiring in buildings and electric equipment. It is commonly used for fixed wiring in lighting systems, control panels, switchboards, and electrical appliances operating at voltages up to 750V. Suitable for indoor installations where flexibility and easy handling are required.

PVC Insulated Wire (60227 KS IEC 01), 450/750V IV

PVC Insulated Wire IV

Conductor Material Copper Conductor
Insulation PVC
Voltage 450/750V
Number of cores Single Core
Package 100 Meters One Roll with Export Wooden Case & Pallet

Conatact us

Standards:
Manufactured in accordance with KS C IEC 60227-3 (equivalent to 60227 IEC 01) standard for PVC insulated cables for rated voltages up to and including 450/750V.

CONSTRUCTION :

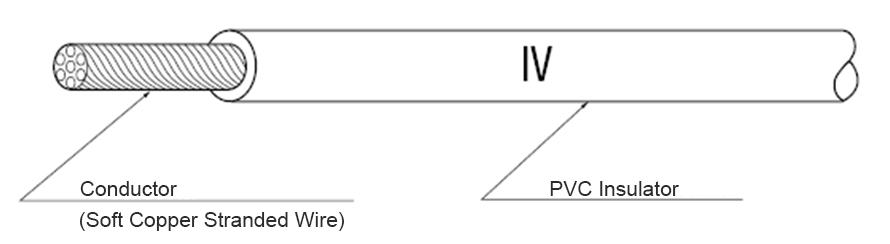

PVC Insulated Wires IV Construction

– Conductor : Annealed copper wire for electrical use (solid wire, circular copper wire, circular compressed copper wire)
– Insulator : Polyvinyl Chloride (PVC/C)
– Insulator coloring : Black, white, red, green, yellow, blue
– Highest temperature : 70℃

TECHNICAL :

PVC Insulated Wires IV Technical Data

Nominal voltage Uo/U		[V]	450 / 750 volt
Test voltage		[V]AC	2500
Temperature range	in motion		+5°C till +70°C
Operating temperature	short circuit	°C	160
Short circuit time	max.	[sec]	5
Bending radius	min.	x diameter	4
Flammability	standard		60227 KS IEC 01

PVC Insulated Wires IV Parameter

Conductor		Nominal Insulation Thickness	Overall Diameter	Max. Conductor Resistance at 20℃	Min. Insulation Resistance at 70℃	Test Voltage	Approx. Weight	Standard Length
Nominal Sectional Area	Conductor Class	Nominal Insulation Thickness	Overall Diameter	Max. Conductor Resistance at 20℃	Min. Insulation Resistance at 70℃	Test Voltage	Approx. Weight	Standard Length
mm2	Conductor Class	mm	mm	Ω/km	MΩ/km	V/5min	kg/km	m
1.5	1	0.7	3.2	12.1	0.011	2500	20	300
1.5	2	0.7	3.3	12.1	0.01	2500	25	300
2.5	1	0.8	3.9	7.41	0.01	2500	35	300
2.5	2	0.8	4.0	7.41	0.009	2500	35	300
4	1	0.8	4.4	4.61	0.0085	2500	50	300
4	2	0.8	4.6	4.61	0.0077	2500	55	300
6	1	0.8	5.0	3.08	0.007	2500	70	300
6	2	0.8	5.2	3.08	0.0065	2500	75	300
10	1	1.0	6.4	1.83	0.007	2500	115	300
10	2	1.0	6.7	1.83	0.0065	2500	120	300
16	2	1.0	7.8	1.15	0.005	2500	170	300
25	2	1.2	9.7	0.727	0.005	2500	270	300
35	2	1.2	10.9	0.524	0.0043	2500	370	300
50	2	1.4	12.8	0.387	0.0043	2500	510	300
70	2	1.4	14.6	0.268	0.0035	2500	685	300
95	2	1.6	17.1	0.193	0.0035	2500	935	300
120	2	1.6	18.8	0.153	0.0032	2500	1,170	300
150	2	1.8	20.9	0.124	0.0032	2500	1,450	300
185	2	2.0	23.3	0.0991	0.0032	2500	1,820	300
240	2	2.0	26.6	0.0754	0.0032	2500	2,305	200
300	2	2.4	29.6	0.0601	0.0030	2500	2,925	200
400	2	2.6	33.2	0.0470	0.0028	2500	3,820	200
