Thermoplastic Fixture (TF) Wire

The Thermoplastic Fixture (TF) Wire is a PVC-insulated electrical wire rated at 600 volts. Designed specifically for lighting fixtures and other fixture wiring applications, this wire offers excellent electrical insulation, flexibility, and durability. Its thermoplastic insulation provides reliable performance in residential, commercial, and industrial environments, ensuring safe and efficient electrical connections for various lighting and fixture installations.

  1. Home
  2. Electrical Wire
  3. PVC Electrical Wire
  4. Thermoplastic Fixture (TF) Wire
  • Thermoplastic Fixture Tf Wire

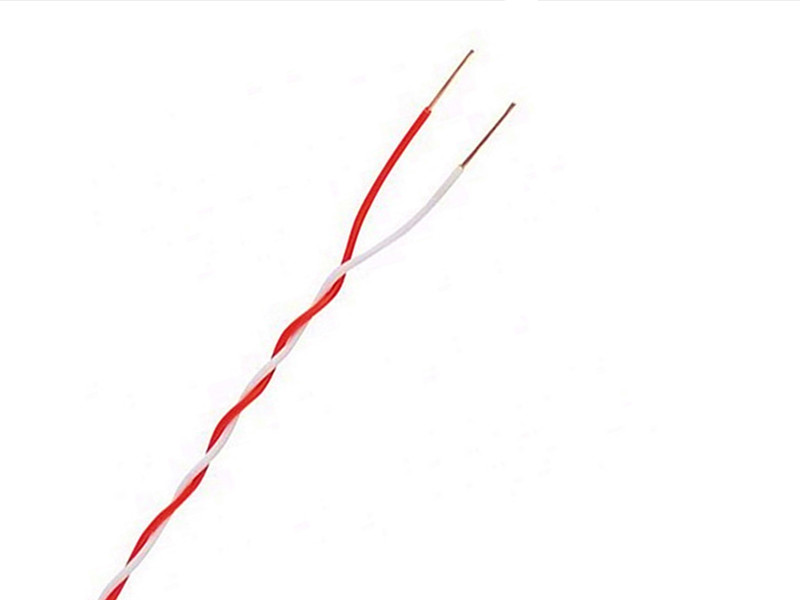

Thermoplastic Fixture (TF) Wire

PVC insulated Wire 600 Volts

  • Conductor Material Copper Conductor
  • Insulation PVC
  • Voltage 600V
  • Number of cores Single Core or Two Core
  • Package 150 Meters One Roll

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

Thermoplastic Fixture (TF) Wire Application

Thermoplastic Fixture PVC Insulated Wire (TF Wire) is suitable used for types of services where its conductor temperature does not exceed 60°C in both dry and wet locations. The copper conductors are available in both solid and stranded. Furthermore, TF Wires are manufactured in either a single conductor standard or a twisted pair. They are mainly applied in machine tools, lighting fixtures where the wire will be protected from bending, appliance, and branch circuit control wiring. TF Wires are also heat, moisture, oil, and gasoline resistant.

Thermoplastic Fixture (TF) Wire Standards:

PNS 35
UL 83
PEC
UL 1685

CONSTRUCTION :

Thermoplastic Fixture (TF) Wire Construction
Conductor : Solid or stranded soft drawn copper conductor.
Insulation: Polyvinyl Chloride (PVC) Lead Free is flame retardant and resistant to moisture.

Parameter
Size of Conductor  No& Nomial Diameter of Wire Wall Thickness Approximate Overall Diameter Cable Nominal Weight
MM2 AWG MM MM MM KG/KM
Solid
Single Conductor
1.0mm 18 1.024 0.8 2.624 19.26
1.2mm 16 1.291 0.8 2.891 21.33
Two Conductor
1.0mm 18 2x1.024 0.8 5.248 31.78
1.2mm 16 2x1.291 0.8 5.782 43.52
Stranded
Single Conductor
0.75mm2 18/7 7x0.4 0.8 2.8 15.58
1.25mm2 16/7 7x0.5 0.8 3.1 21.33
Two Conductor
0.75mm2 18/7 7x0.4 0.8 5.6 28.5
1.25mm2 16/7 7x0.5 0.8 6.2 39.3
