THW Wire For Philippines 8mm2 14mm2 22mm2 30mm2 38mm2

THW wire is widely used in the Philippines for various electrical applications due to its durability and reliability. Available in multiple sizes such as 8mm², 14mm², 22mm², 30mm², and 38mm², these wires are suitable for different load requirements and installation types. With its high-quality copper conductor and thermoplastic insulation, THW wire provides excellent thermal resistance, flexibility, and safety for residential, commercial, and industrial wiring projects. Proper selection of size ensures efficient power distribution and compliance with safety standards in the Philippines.

  1. Home
  2. Electrical Wire
  3. TW-THW-THHW Wires
  4. THW Wire For Philippines 8mm2 14mm2 22mm2 30mm2 38mm2
  • slide

THW Wire For Philippines 8mm2 14mm2 22mm2 30mm2 38mm2

THW Wire For Philippines 8mm2 14mm2 22mm2 30mm2 38mm2

  • Name THW Wire For Philippines
  • Conductor Material Copper Conductor ( Solid , Stranded )
  • Insulation PVC
  • Voltage 600V
  • Number of cores Single Core
  • Package 100 Meters One Roll with Export Wooden Case & Pallet

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

THW/TW Copper Electrical Wire Application

The copper conductors type THW are used for power and lighting circuits in industrial, commercial and residential facilities where it is required of more security, just as it is specified in the National Electrical Code. This type of conductor can be used in dry and wet places; its maximum temperature of operation is of 75 ºC and its voltage of service for all the applications it is 600 V.

THW/TW Copper Electrical Wire Standards

• ASTM B-3: Copper Annealed or Soft Wires.
• ASTM B-8: Copper Stranded Conductors in Concentric Layers, Hard, Semi-hard or Soft.
• UL - 83: Wires and Cables Insulated with Thermoplastic Material.
• NEMA WC-5: Wires and Cables Insulated with Thermoplastic Material (ICEA S-61-402) for Transmission and Distribution of Electric Power

CONSTRUCTION :

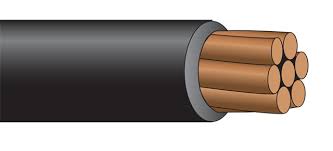

THW/TW Copper Electrical Wire Construction

THW/TW Copper Electrical Wire Construction

THW/TW Copper Electrical Wire Construction

Conductor Annealed copper wire (Solid, Stranded Circular)
Insulation PVC
Available Color  Black, White, Red, Green, Yellow, Blue, Green-Yellow or as require



THW TW Wire Parameter For Philippines

Cross
Section
mm2

Approximate Size
AWG or
MCM

Stranding
Number of
wire x diameter

mm.

Insulation
Thickness

mm.

Approx. Outside
Diameter
mm.

Approx.
Net Weight
Kg/Km

Ampacity
75℃

2.0mm2

14

7*0.6

1.2

4.2

34.31

20

3.5mm2

12

7*0.8

1.2

4.8

51.86

25

5.5mm2

10

7*1.0

1.2

5.4

73.51

35

8.0mm2

8

7*1.2

1.6

6.8

110.49

50

14mm2

6

7*1.6

1.6

8.0

176.55

65

22mm2

4

7*2.0

1.6

9.2

258.98

85

30mm2

2

7*2.3

1.6

10.1

331.46

115

38mm2

1-19

19*1.6

2.0

12

447

130

50mm2

1/0-19

19*1.8

2.0

13

543.44

150

60mm2

2/0-19

19*2.0

2.0

14

656.85

175

80mm2

3/0-19

19*2.3

2.0

15.5

847.9

200

100mm2

4/0-19

19*2.6

2.0

17

1063.71

230

125mm2

250mcm

37*2.1

2.4

19.5

1362.26

255

150mm2

300mcm

37*2.3

2.4

20.9

1613.79

285



350mcm

37*2.47

2.4

22.1

1840.86

310

200mm2

400mcm

37*2.6

2.4

23

2029.87

335

250mm2

500mcm

61*2.3

2.4

25.5

2590.95

380



600mcm

61*2.52

2.4

27.5

3073.95

420

325mm2

650mcm

61*2.6

2.8

29

3288.51

435



750mcm

61*2.82

2.8

30.9

3859.4

475

400mm2

800mcm

61*2.9

2.8

31.7

4077.32

490

500mm2

1000mcm

61*3.2

2.8

34.4

4919.24

545
