🔌 Welding Cable & Battery Cable – Durable, Flexible, High-Conductivity Solutions

TOT Wire & Cable offers a complete range of welding cable and battery cable designed for high-performance power transmission in industrial, automotive, and heavy-duty applications.

Whether you're sourcing flexible Class K welding cable for electrode grounding or heavy-duty battery cables for vehicles and backup power, we deliver dependable products that exceed industry standards.

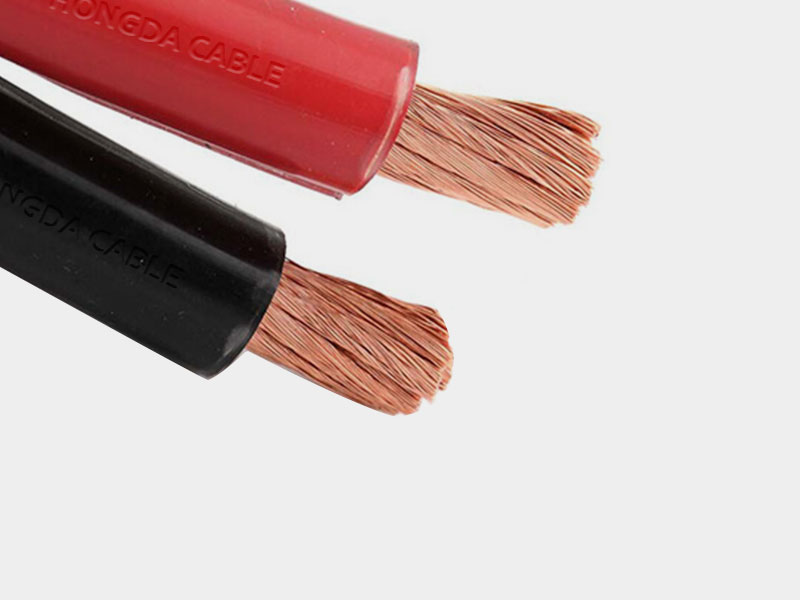

Welding Cables

Welding Cables

Shape of conductor: circular and sectional
Sectional area: 1.5 - 500mm2
Insulation: PVC / XLPE
Learn More
Quote Now

⚙️ Welding Cable Overview

Our welding cables are made with 99.9% pure copper wire, Class K stranded for superior flexibility and current-carrying capacity.

FeatureDetails
ConductorAnnealed copper, Class K, 30 AWG strands
InsulationHigh-grade EPDM or CPE for abrasion and oil resistance
TemperatureUp to 105°C continuous, 90°C wet conditions
Voltage Rating600 Volts (UL / CSA approved)
ApplicationsWelding machines, electrode holders, industrial power lines

✅ Complies with UL 1581, ICEA S-95-658, and RoHS requirements.
✅ Available in sizes from 6 AWG to 500 MCM.

🔋 Battery Cable Overview

Our battery cables are designed for high power transfer and low voltage drop in automotive, marine, RV, and solar systems.

FeatureDetails
ConductorPure copper, stranded (Class K or Class M options)
InsulationPVC or XLPE, resistant to heat, oil, abrasion, and acid
StandardSAE J1127 (Type SGT / STX / SGX)
Voltage Rating60V DC / 600V depending on insulation
Color OptionsRed, black, blue, green
Temperature-40°C to +105°C (depending on jacket type)

✅ Suitable for battery connections, starter motors, grounding systems, and inverters.

📦 Applications

Welding Cable Uses:

  • Arc welders and electrode holders

  • Heavy equipment grounding

  • Temporary power supply in construction sites

  • Marine and mining equipment

Battery Cable Uses:

  • Automotive battery to starter connections

  • Solar battery banks

  • Power inverters for RV, marine, and off-grid systems

  • Forklifts and backup UPS power

🏭 Why Choose TOT as Your Welding & Battery Cable Supplier?

  • 🧰 Factory-direct pricing and wide inventory

  • 🔧 Customization available for color, print, drum packaging

  • 📜 Certified to UL, SAE, IEC, RoHS, and CSA standards

  • 🚛 Fast delivery for domestic and international projects

  • 💬 Multilingual support & engineering consultation

📊 Common Sizes and Specifications

Cable TypeSize (AWG)Strand ClassVoltage RatingJacketColor
Welding Cable1/0 AWGClass K600VEPDMBlack
Welding Cable2 AWGClass K600VCPERed
Battery Cable4 AWGClass K60V DCPVC (SGT)Black
Battery Cable2/0 AWGClass M600VXLPE (SGX)Red

❓ Frequently Asked Questions

Q: What’s the difference between welding cable and battery cable?
A: Welding cable typically has thinner copper strands and more flexible jackets for frequent movement. Battery cables are thicker and more rugged, designed for fixed power connections.

Q: Can you customize welding cable for outdoor use?
A: Yes, we offer weather-resistant EPDM/CPE jacketing, UV protection, and grease resistance for outdoor welding applications.

Q: Are your cables UL listed or SAE certified?
A: Yes. Our welding cables are UL/CSA approved, and battery cables meet SAE J1127 (SGT, STX, SGX) requirements.

📩 Get a Quote Today from a Trusted Welding & Battery Cable Supplier

Whether you need high-flex welding cables for heavy-duty equipment or durable battery cables for automotive and solar systems, TOT Wire & Cable has you covered.

📞 Contact us now to get the best prices, datasheets, and samples.
