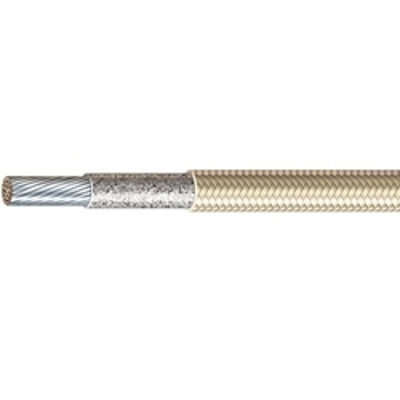

TOT Wire & Cable’s 10 Gauge High Temperature Wire is built for high-heat performance in demanding environments. Engineered with premium insulation materials like Silicone Rubber, PTFE (Teflon), or Fiberglass, this wire ensures reliable conductivity and insulation stability at elevated temperatures.
✅ Product Highlights
-
Heat Resistance: Withstands temperatures up to 200°C – 250°C depending on insulation
-
Pure Copper Conductor: Solid or stranded bare copper for maximum conductivity
-
Multiple Insulation Options: Choose from Silicone, Teflon, or Fiberglass to suit your application
-
UL & RoHS Compliant for safe and environmentally-friendly use
-
Flexible yet tough: Easy to install, resistant to abrasion, oil, and chemicals
🔧 Technical Specifications
| Property | Value |
|---|---|
| Conductor Size | 10 AWG |
| Conductor Type | Solid or Stranded Bare Copper |
| Insulation Materials | Silicone Rubber / PTFE (Teflon) / Fiberglass |
| Temperature Rating | 150°C – 250°C (based on insulation type) |
| Voltage Rating | 300V – 600V |
| Outer Diameter | Approx. 4.5 mm – 5.5 mm |
| Compliance Standards | UL 1332 / UL 5107 / UL 5256 / RoHS |
⚙️ Common Applications
-
High-temperature machinery and motor wiring
-
Electric furnaces and heating equipment
-
Lighting systems in heat-prone areas
-
HVAC systems, boilers, and ovens
-
Aerospace, automotive, and marine wiring
-
Power distribution in industrial facilities
💼 Why Choose TOT Wire & Cable?
-
🧰 Customizable Options – Pick insulation, conductor type, and cut lengths
-
🚛 Bulk Orders Ready – Fast delivery from verified ISO-certified facilities
-
💡 Expert Support – Free consultation and engineering assistance
-
💸 Factory-Direct Prices – Lower cost, consistent quality
📞 Get a Quote Today
Need a reliable 10 AWG high temperature wire for your project or production line?
Contact TOT Wire & Cable now for technical details, MOQ, and competitive pricing.
