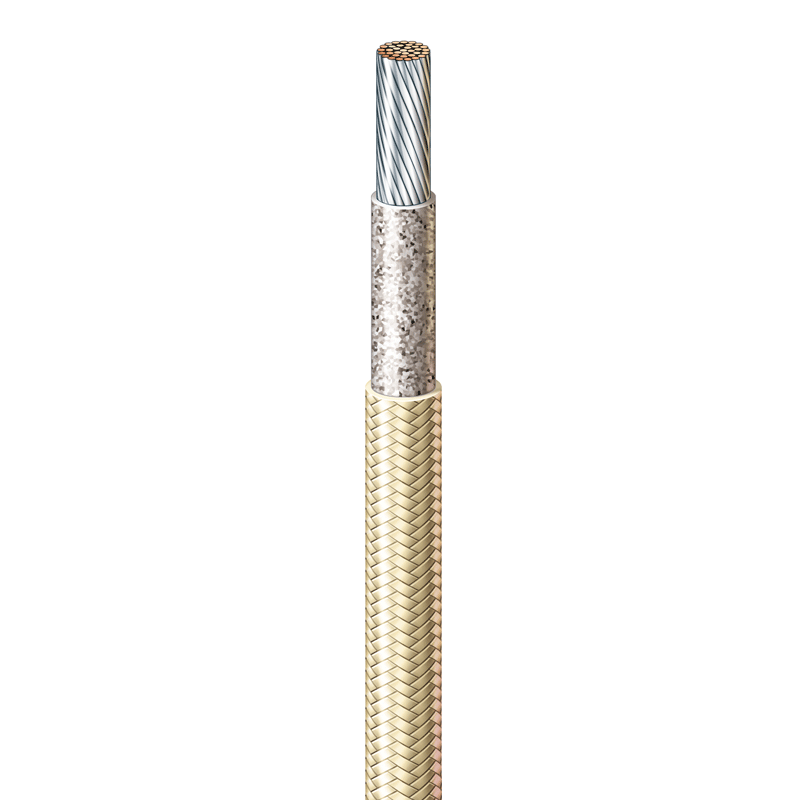

TOT Wire & Cable’s 16 Gauge High Temperature Wire is specifically designed for electrical systems exposed to elevated temperatures. Manufactured using high-conductivity bare copper and high-performance insulation such as silicone rubber, PTFE (Teflon), or fiberglass, this wire provides reliable operation in high-heat industrial, automotive, and HVAC applications.
🔧 Key Features
-
Heat Resistance: Withstands continuous temperatures up to 200°C–250°C depending on insulation
-
Copper Conductor: Solid or stranded bare copper ensures excellent conductivity
-
Flexible Insulation Options: Choose from Silicone, PTFE, or Fiberglass for various environments
-
UL Listed & RoHS Compliant
-
Durable Performance: Resists oil, chemicals, moisture, and mechanical stress
📐 Technical Specifications
| Property | Value |
|---|---|
| Conductor Size | 16 AWG |
| Conductor Type | Solid or Stranded Bare Copper |
| Insulation Material | Silicone / PTFE (Teflon) / Fiberglass |
| Temperature Rating | 150°C – 250°C (varies by insulation type) |
| Voltage Rating | 300V – 600V |
| Outer Diameter | Approx. 2.5 mm – 3.4 mm |
| Compliance | UL 5256 / UL 5107 / UL 1332 / RoHS |
📌 Applications
-
High-temperature lighting systems
-
HVAC systems and furnace wiring
-
Electric motors and heating elements
-
Industrial ovens and equipment
-
Aerospace, marine, and automotive wiring
✅ Why Choose TOT Wire & Cable?
-
Custom Insulation & Spool Sizes Available
-
Reliable Quality – ISO-certified factory & UL-tested products
-
Fast Turnaround – Ideal for urgent or bulk projects
-
Cost-Effective – Factory-direct pricing
📞 Request Pricing or Samples
Need 16 gauge high temperature wire for your next project?
Get in touch for detailed specs, volume pricing, and free technical consultation.
