Unarmoured Instrumentation Cable PVC-OS-PVC BS5308 Cable Part 2 Type1

The Unarmoured Instrumentation Cable PVC-OS-PVC BS 5308 Cable Part 2 Type 1 is a high-quality cable designed for instrumentation and control applications. It features insulated conductors with oil-resistant (OS) PVC insulation and an outer PVC sheath, providing reliable performance in various environments. Suitable for indoor installations and environments where mechanical protection is not required, this cable ensures flexibility, durability, and compliance with BS 5308 Part 2 Type 1 standards for safe and efficient operation in instrumentation systems.

  1. Home
  2. Instrumentation Cable
  3. PVC Instrumentation Cable
  4. Unarmoured Instrumentation Cable PVC-OS-PVC BS5308 Cable Part 2 Type1
  • slide

Unarmoured Instrumentation Cable PVC-OS-PVC BS5308 Cable Part 2 Type1

Unarmoured Instrumentation Cable PVC-OS-PVC BS5308 Cable Part 2 Type1

  • Conductor Material Annealed copper
  • Insulation Polyvinyl chloride compound (PVC)
  • Binder tape Polyester tape
  • Screen Al-PET tape with tinned copper drain wire
  • Outer sheath Polyvinyl chloride compound (PVC)
  • Package Export wooden drum & iron wooden drum or as customer require

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

Unarmoured Instrumentation Cable PVC-OS-PVC BS5308 Cable Part 2 Type1 Application:

The unarmoured versions (Part 2 Type 1) are generally use for indoor installation and suitable for wet and damp areas. Generally used within industrial process manufacturing plants for communication, data and voice transmission signals and services, Also used for the interconnection of electrical equipment and instruments, typically in chemical or petrolchemical industry.

Unarmoured Instrumentation Cable PVC-OS-PVC BS5308 Cable Part 2 Type1 Standard:

Cable design: BS 5308 BS EN 50288-7
Conductor: IEC 60228

CONSTRUCTION :

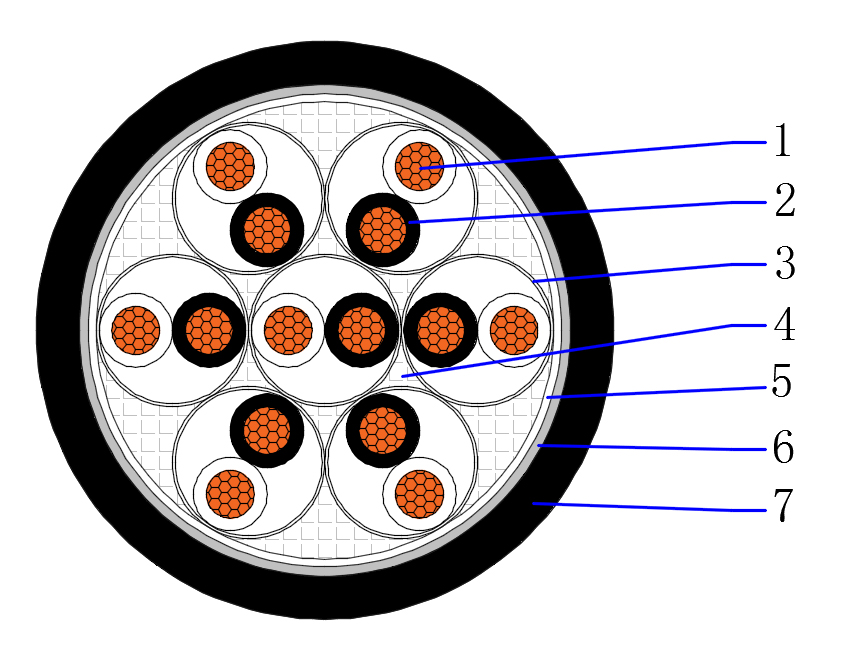

Unarmoured Instrumentation Cable PVC-OS-PVC BS5308 Cable Part 2 Type1 Construction

Unarmoured Instrumentation Cable PVC-OS-PVC BS5308 Cable Part 2 Type1 Construction

Unarmoured Instrumentation Cable PVC-OS-PVC BS5308 Cable Part 2 Type1 Construction

1.Conductor - Annealed or tinned copper, sizes: 0.5mm^2 and 0.75mm^2 mulitistranded(Class 5), 1.5mm^2 multistranded(Class 2) to BS6360
2.Insulation - PVC (polyvinyl chloride), type TI1 to BS 6746
Pairing -Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
Color Code-Multicore cables: up to 40 cores yellow with black numbers, 41 -80 cores black with yellow numbers. Multipair cables:See technical information
3.Binder tape -PETP transparent tape
4.Filler - Non-hygroscopic material (if necessary)
5.Binder tape - Polyester tape
6.Collective Screen - Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm^2
7.Outer sheath - PVC Sheath, type TM 1 or type 6 to BS 6746
Sheath Color-Black or blue

TECHNICAL :

Conductor operating temperature: -20℃~70℃

Min. installation temperature: 0℃

Minimum bending radius: 5 x overall diameter

Conductor Area Size mm 2 0.5 0.75 1.5
Conductor Stranding No. x mm 16 x 0.2 24 x 0.2 7 x 0.53
Conductor resistance max ohm/km 39.7 26.5 12.3
Insulation resistance min Mohm/km 25 25 25
Max. Mutual Capacitance:pair or adjacent cores pF/m 250 250 250
Capacitance between any core or screen max. pF/m 400 400 400
Max. L/R Ratio for adjacentcores(Inductance/Resistance) μH/ohm 25 25 40
Test voltage Core to core V 1000 1000 1000
Core to screen V 1000 1000 1000
Rated voltage max V 300/500 300/500 300/500
PARAMETER
No.of Cores No.and Dia. of Wires Nominal Conductor Cross-Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Dia. of Cable Approx. Weight
no./mm mm^2 mm mm mm kg/km
1 16/0.2 0.5 0.6 0.8 6.2 60
2 16/0.2 0.5 0.6 0.8 7.6 80
5 16/0.2 0.5 0.6 1.1 12.4 200
10 16/0.2 0.5 0.6 1.2 16.5 340
15 16/0.2 0.5 0.6 1.3 19.2 480
20 16/0.2 0.5 0.6 1.3 21.7 570
30 16/0.2 0.5 0.6 1.5 26.4 880
50 16/0.2 0.5 0.6 1.7 33.4 1310
1 24/0.2 0.75 0.6 0.8 6.7 75
2 24/0.2 0.75 0.6 0.8 8.2 100
5 24/0.2 0.75 0.6 1.2 13.8 250
10 24/0.2 0.75 0.6 1.3 18.4 450
15 24/0.2 0.75 0.6 1.3 21.1 600
20 24/0.2 0.75 0.6 1.5 24.4 800
30 24/0.2 0.75 0.6 1.7 29.5 1080
50 24/0.2 0.75 0.6 2 37.6 1860
1 7/0.53 1.5 0.6 0.8 7.5 100
2 7/0.53 1.5 0.6 0.9 9.3 150
5 7/0.53 1.5 0.6 1.2 15.6 360
10 7/0.53 1.5 0.6 1.3 20.9 670
15 7/0.53 1.5 0.6 1.5 24.6 970
20 7/0.53 1.5 0.6 1.5 27.8 1230
30 7/0.53 1.5 0.6 1.7 33.7 1730
50 7/0.53 1.5 0.6 2 43 2740
