Armoured Instrumentation Cable XLPE-OS-SWA-PVC BS 5308 Cable Part 1 Type 2

The Armoured Instrumentation Cable XLPE-OS-SWA-PVC BS 5308 Part 1 Type 2 is a robust and durable cable designed for industrial control and instrumentation applications. It features cross-linked polyethylene (XLPE) insulation for excellent thermal and chemical resistance, oil-resistant (OS) properties, steel wire armoring (SWA) for mechanical protection, and a PVC outer sheath for environmental protection. Compliant with BS 5308 Part 1 Type 2 standards, this cable ensures reliable performance in demanding industrial environments, providing secure signal transmission and long-lasting durability.

  1. Home
  2. Instrumentation Cable
  3. XLPE Instrumentation Cable
  4. Armoured Instrumentation Cable XLPE-OS-SWA-PVC BS 5308 Cable Part 1 Type 2
  • slide

Armoured Instrumentation Cable XLPE-OS-SWA-PVC BS 5308 Cable Part 1 Type 2

Collectively Screened (Overall Screened) Armoured Instrument Cables

  • Conductor Material Annealed copper
  • Insulation Crosslinked Polyethylene (XLPE)
  • Binder tape Polyester tape
  • Screen Al-PET tape with tinned copper drain wire
  • Armoured Steel Wire
  • Outer sheath Polyvinyl chloride compound (PVC)

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

Armoured Instrumentation Cable XLPE-OS-SWA-PVC BS 5308 Cable Part 1 Type 2 Application:

The BS 5308 Part 1 Type 2 instrument cables with collectively screen and steel wire armouring are generally used when the risk of mechanical damage is increased. The galvanized steel wire armouring provides excellent protection. Generally used within industrial process manufacturing plants for communication, data and voice transmission signals and services, Also used for the interconnection of electrical equipment and instruments, typically in chemical or petrochemical industry. The armored versions are generally use for outdoor installation for direct burial or installed in the duct and suitable for wet and damp areas.

Armoured Instrumentation Cable XLPE-OS-SWA-PVC BS 5308 Cable Part 1 Type 2 Standard:

Cable design: BS 5308 BS EN 50288-7
Conductor: IEC 60228

CONSTRUCTION :

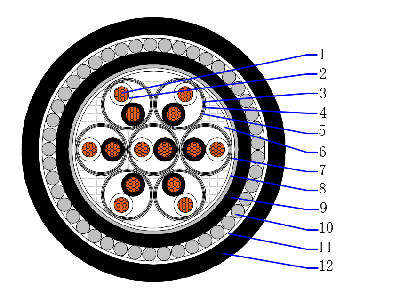

Armoured Instrumentation Cable XLPE-OS-SWA-PVC BS 5308 Cable Part 1 Type 2 Construction

Armoured Instrumentation Cable XLPE-OS-SWA-PVC BS 5308 Cable Part 1 Type 2 Construction

Armoured Instrumentation Cable XLPE-OS-SWA-PVC BS 5308 Cable Part 1 Type 2 Construction


1.Conductor - Annealed or tinned copper, sizes: 0.5mm^2 and 0.75mm^2 mulitistranded(Class 5), 1.5mm^2 multistranded(Class 2) to BS6360
2.Insulation - XLPE (Crosslinked Polyethylene)
Pairing -Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
Color Code-Black and white
3.Binder tape -PETP transparent tape
4.Filler - Non-hygroscopic material (if necessary)
5.Binder tape - PETP transparent tape
6.Collective Screen - Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm^2
7.Inner sheath - Polyvinyl chloride compound (PVC)
8.Armor - Galvanized steel wires
9.Binder tape - Non-hygroscopic material tape
10.Outer sheath - PVC Sheath, type TM 1 or type 6 to BS 6746
Sheath Color-Black or blue

TECHNICAL :

Conductor operating temperature: -20℃~90℃

Min. installation temperature: 0℃

Minimum bending radius: 5 x overall diameter

Conductor Area Size mm 2 0.5 0.75 1.5
Conductor Stranding No. x mm 16 x 0.2 24 x 0.2 7 x 0.53
Conductor resistance max ohm/km 39.7 26.5 12.3
Insulation resistance min Mohm/km 25 25 25
Max. Mutual Capacitance:pair or adjacent cores pF/m 250 250 250
Capacitance between any core or screen max. pF/m 400 400 400
Max. L/R Ratio for adjacentcores(Inductance/Resistance) μH/ohm 25 25 40
Test voltage Core to core V 1000 1000 1000
  Core to screen V 1000 1000 1000
Rated voltage max V 300/500 300/500 300/500
Armoured Instrumentation Cable XLPE-OS-SWA-PVC BS 5308 Cable Part 1 Type 2 Parameter
No.of Cores No.and Dia. of Wires Nominal Conductor Cross-Sectional Area Nominal Thickness of Insulation Nominal Thickness of bedding Nominal Dia. over Bedding Nominal Thickness of Armour Nominal Thickness of Sheath Nominal Dia. of Cable Approx.Weight
no./mm mm^2 mm mm mm mm mm mm kg/km
1 16/0.2 0.5 0.6 0.8 6.2 0.9 1.3 10.6 260
2 16/0.2 0.5 0.6 0.8 7.1 0.9 1.3 11.5 305
5 16/0.2 0.5 0.6 1.1 12.4 0.9 1.5 17.2 610
10 16/0.2 0.5 0.6 1.2 16.5 1.25 1.6 22.2 1060
15 16/0.2 0.5 0.6 1.3 19.2 1.6 1.7 25.8 1330
20 16/0.2 0.5 0.6 1.3 21.7 1.6 1.8 28.5 1800
30 16/0.2 0.5 0.6 1.5 26.4 1.6 1.9 33.4 1980
50 16/0.2 0.5 0.6 1.7 33.4 2 2.1 41.6 3070
1 24/0.2 0.75 0.6 0.8 6.7 0.9 1.3 11.1 305
2 24/0.2 0.75 0.6 0.8 7.7 0.9 1.4 12.3 360
5 24/0.2 0.75 0.6 1.2 13.8 1.25 1.5 19.3 820
10 24/0.2 0.75 0.6 1.3 18.4 1.6 1.7 25 1250
15 24/0.2 0.75 0.6 1.3 21.1 1.6 1.8 27.9 1600
20 24/0.2 0.75 0.6 1.5 24.4 1.6 1.8 31.2 1800
30 24/0.2 0.75 0.6 1.7 29.6 2 2 37.6 2570
50 24/0.2 0.75 0.6 2 37.4 2.5 2.3 47.3 3800
1 7/0.53 1.5 0.6 0.8 7.5 0.9 1.4 12.1 360
2 7/0.53 1.5 0.6 0.9 8.8 0.9 1.4 13.4 460
5 7/0.53 1.5 0.6 1.2 15.6 1.25 1.6 21.3 1040
10 7/0.53 1.5 0.6 1.3 20.9 1.6 1.8 27.7 1610
15 7/0.53 1.5 0.6 1.5 24.6 1.6 1.9 31.6 2060
20 7/0.53 1.5 0.6 1.5 27.8 1.6 2 35 2630
30 7/0.53 1.5 0.6 1.7 33.7 2 2.1 41.9 3460
50 7/0.53 1.5 0.6 2 43 2.5 2.4 52.8 5520
