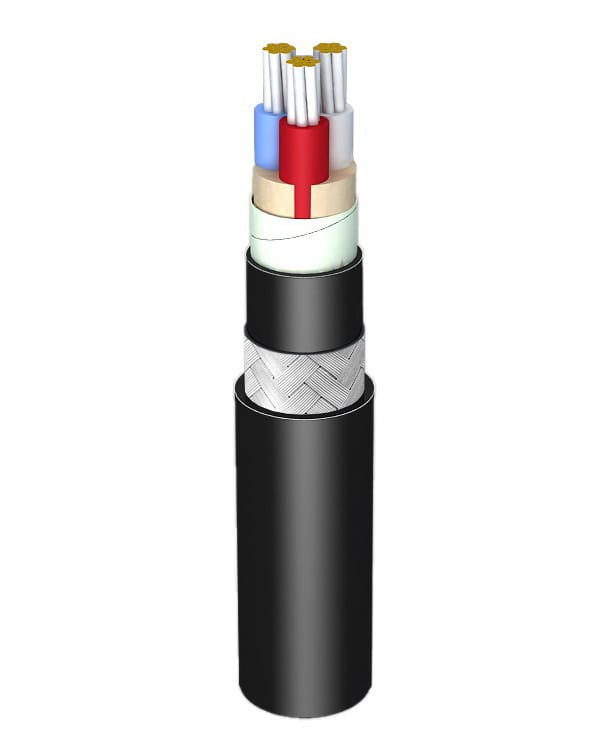

WDZN-BYJ(F)E Building Wire

WDZN-BYJ(F)E is a low-smoke, halogen-free fire-resistant building wire with copper conductor and irradiated cross-linked polyethylene (XLPE) insulation. It is engineered for use in emergency and safety-critical circuits, where enhanced thermal, electrical, and fire protection properties are essential.

  1. Home
  2. LSZH Cable
  3. WDZN-BYJ(F)E Building Wire
  • Wdzn Byjfe Building Wire

WDZN-BYJ(F)E Building Wire

Key Specifications

  • Rated Voltage 450/750V
  • Conductor Annealed Copper
  • Insulation Irradiated XLPE (Cross-linked)
  • Outer Sheath LSZH (Low Smoke Zero Halogen)
  • Fire Resistance IEC 60331 / GB/T 19216
  • Flame Rating IEC 60332 / IEC 60754 / IEC 61034
  • Operating Temperature Up to 125°C
  • Application Emergency lighting, alarms, evacuation systems, critical building circuits

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

Description

WDZN-BYJ(F)E Building Wire

Copper Conductor, Irradiated XLPE Insulated, LSZH, Fire-Resistant Installation Wire

WDZN-BYJ(F)E is a low-smoke, halogen-free fire-resistant building wire with copper conductor and irradiated cross-linked polyethylene (XLPE) insulation. It is engineered for use in emergency and safety-critical circuits, where enhanced thermal, electrical, and fire protection properties are essential.

Key Features

  • ✅ Fire-resistant design – maintains power during fire conditions

  • ✅ LSZH insulation – no toxic gases, minimal smoke emission

  • ✅ Irradiated XLPE – improved thermal aging and insulation strength

  • ✅ Safe for enclosed, public, and high-density spaces

  • ✅ Excellent environmental and mechanical durability

Contact Us for a Quote

If you are interested in purchasing the WDZN-BYJ(F)E Building Wire or have any technical questions about the product,please click here to request a quote. Our team will provide you with professional service and customized solutions promptly.
