Muti Core PVC Insulated and Sheathed Unarmoured Cable IEC60502-1 600/1000V

Multi Core PVC Insulated and Sheathed Unarmoured Cable is a versatile 600/1000V power cable compliant with IEC60502-1 standards, featuring multiple copper conductors individually insulated with PVC and enclosed in an overall PVC protective sheath without armor reinforcement, engineered for fixed electrical installations in buildings, industrial facilities, and utility networks where moderate mechanical protection is sufficient for reliable power distribution and control applications.

  1. Home
  2. Low Voltage Cables – LV
  3. Low Voltage Non-armored Copper Power Cable
  4. Muti Core PVC Insulated and Sheathed Unarmoured Cable IEC60502-1 600/1000V
  • slide

Muti Core PVC Insulated and Sheathed Unarmoured Cable IEC60502-1 600/1000V

Muti Core PVC Insulated and Sheathed Unarmoured Cable IEC60502-1 600/1000V

  • Rated Voltage 0.6/1kV
  • Conductor Material Aluminum/plain annealed copper
  • Insulation Material PVC
  • Sheath PVC
  • Number of cores Multi Core
  • Package Export wooden drum & iron wooden drum or as customer require

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

Application
These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage
Standards:
IEC 60502-1, GB/T 12706.1
Note: we can aslo manufacture cables according to BS 5467, AS/NZS 5000.1

Construction
Conductor:Aluminum/plain annealed copper
Insulation : PVC(Polyvinyl chloride), rated at 70°C
Colours for core identification
Single core: black or brown
Two core: red, blue or blue brown
Three core: red, yellow and blue or brown black grey
Four core: red, yellow, blue and green or blue brown black grey
Five core: red, yellow, blue, yellow and yellow/green or blue brown black grey yellow/green

Assembly(for multi-cores cables)

Two, three, four or five insuated conductors are laid up together if necessary filled with non-hygroscopic material compatble with the insulation and covered with a layer of PVC bedding which maybe an integral part of the filling

Sheath:PVC
Sheath colour:Black, other colors are available upon request

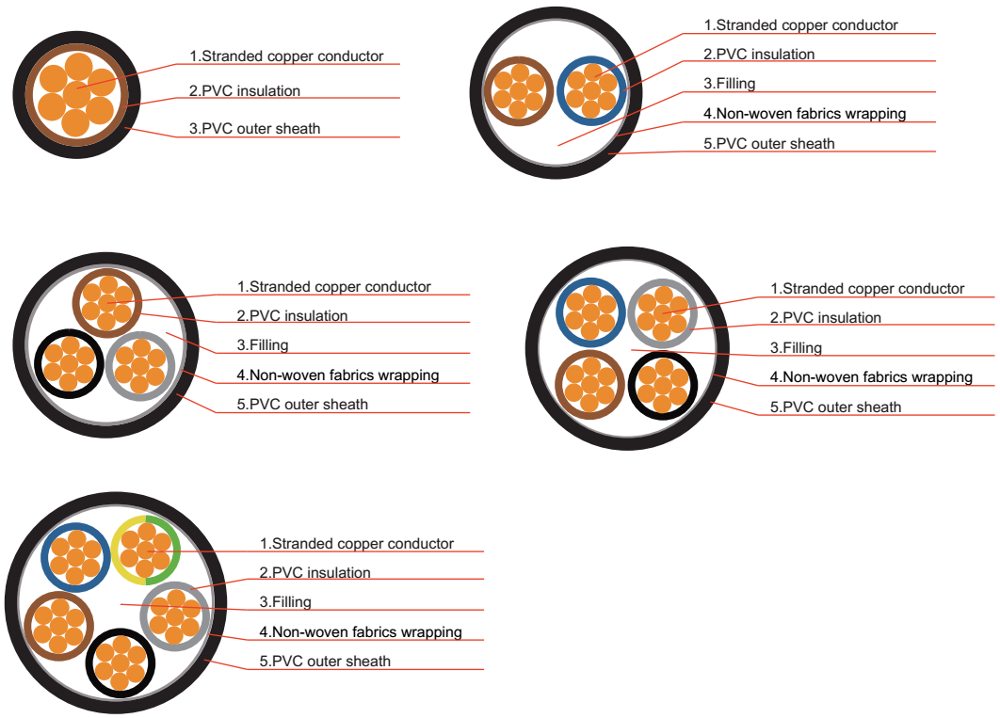

Muti Core PVC Insulated and Sheathed Unarmoured Cable Construction

Muti Core PVC Insulated and Sheathed Unarmoured Cable Construction

2 CORES
Two Cores Non-Armored PVC Cable
Cross
Section		 Conductor Dia.
(Approx.)		 PVC Insulation
Thickness		 PVC Sheath
Thickness		 Overall Dia.
(Approx.)		 Weight of Cable
(Approx.)
Copper Aluminum
mm2 mm mm mm mm kg/km kg/km
2x1.5 1.38 0.8 1.8 10.2 122.1 --
2x2.5 1.78 0.8 1.8 11 148.6 118.7
2x4 2.25 1 1.8 12.7 210.7 162.1
2x6 2.76 1 1.8 13.7 257.7 --
*2x6 2.83 1 1.8 13.9 -- 190.7
2x10 4.05 1 1.8 16.3 376.3 254.2
2x16 5.1 1 1.8 18.4 523.1 328.7
2x25 5.9 1.2 1.8 20.8 718.2 414.1
2x35 6.9 1.2 1.8 22.8 928.6 504.9
2x50 9.4 1.4 1.8 20.3 1124.5 551.3
2x70 11.2 1.4 1.9 22.9 1555.9 721
2x95 13.2 1.6 2 26 2108.2 955.6
2x120 14.9 1.6 2.1 28.2 2604.4 1146.5
2x150 16.4 1.8 2.2 31.5 3213.9 1425.8
2x185 18.5 2 2.4 34.8 4007.1 1766.7
2x240 21.6 2.2 2.5 40.8 5232 2265
2x300 24.2 2.4 2.7 45 6490 2782
2x400 27.4 2.6 2.9 50.2 8268 3501
2x500 31.1 2.8 3.2 55.8 10517 4389
NOTE: The sectional area with '*', the conductor is made by solid copper or aluminum material
3 CORES
Three Cores Non-Armored PVC Cable
Cross
Section		 Conductor Dia.
(Approx.)		 PVC Insulation
Thickness		 PVC Sheath
Thickness		 Overall Dia.
(Approx.)		 Weight of Cable
(Approx.)
Copper Aluminum
mm2 mm mm mm mm kg/km kg/km
3x1.5 1.38 0.8 1.8 10.6 145.6 --
3x2.5 1.78 0.8 1.8 11.5 185.5 140.7
3x4 2.25 1 1.8 13.4 262.8 189.9
3x6 2.76 1 1.8 14.5 332.7 --
*3x6 2.83 1 1.8 14.6 -- 231.6
3x10 4.05 1 1.8 17.3 492.2 309
3x16 5.1 1 1.8 19.5 693.3 401.8
3x25 5.9 1.2 1.8 22.1 988.3 532.2
3x35 6.9 1.2 1.8 24.3 1291.7 656.2
3x50 9.3 1.4 1.8 26.2 1657.7 797.9
3x70 11.2 1.4 1.9 30.1 2305.6 1053.3
3x95 13.2 1.6 2.1 34 3137.7 1408.8
3x120 14.8 1.6 2.2 36.7 3874 1687.1
3x150 16.3 1.8 2.3 39.5 4751 2068.9
3x185 18.3 2 2.5 43.4 5920.7 2560.1
3x240 20.92 2.2 2.7 48.4 7642.6 3231.5
3x300 23.38 2.4 2.8 52.9 9490.5 3976.7
3x400 26.46 2.6 3.1 58.9 12191.1 5041.8
3x500 30 2.8 3.3 67 15534 6342
NOTE: The sectional area with '*', the conductor is made by solid copper or aluminum material
3+1 CORES
Three Cores Non-Armored PVC Cable With One Neutral Core
Cross
Section		 Conductor Dia.
(Approx.)		 PVC Insulation
Thickness		 PVC Sheath
Thickness		 Overall Dia.
(Approx.)		 Weight of Cable
(Approx.)
Copper Aluminum
Phase Earth Phase Earth Phase Earth
mm2 mm2 mm mm mm mm mm mm kg/km kg/km
3x2.5 1x1.5 1.78 1.38 0.8 0.8 1.8 12.1  211.4  --
3x4 1x2.5 2.25 1.78 1.0  0.8 1.8 14.0  299.0  211.1
3x6 1x4 2.76 2.25 1.0  1.0  1.8 15.4  391.9  --
*3x6 *1x4 2.83 2.25 1.0  1.0  1.8 15.5  -- 266.4
3x10 1x6 4.05 2.76 1.0  1.0  1.8 18.1  570.4  --
*3x10 *1x6 4.05 2.83 1.0  1.0  1.8 18.1  -- 353.5
3x16 1x10 5.1 4.05 1.0  1.0  1.8 20.7  818.3  465.7
3x25 1x16 5.9 5.1 1.2 1.0  1.8 23.6  1179.0  625.8
3x35 *1x16 6.9 5.1 1.2 1.0  1.8 25.4  1476.5  743.8
3x50 1x25 9.1 5.9 1.4 1.2 1.8 26.2  1931.6  919.8
3x70 1x35 10.94 6.9 1.4 1.2 1.8 30.0  2660.3  1196.2
3x95 1x50 12.91 9.0  1.6 1.4 1.9 34.0  3612.1  1596.6
3x120 1x70 14.51 10.83 1.6 1.4 2.0  37.0  4552.0  1947.7
3x150 *1x70 16.11 10.83 1.8 1.4 2.1 40.2  5405.5  2306.0
3x185 1x95 18.04 12.17 2.0  1.6 2.2 44.2  6804.5  2867.5
3x240 1x120 20.65 14.39 2.2 1.6 2.4 49.6  8797.3  3657.3
3x300 1x150 23.08 15.93 2.4 1.8 2.5 54.5  10885.9  4478.1
3x400 1x185 25.49 17.77 2.6 2.0  2.8 60.8  13922.7  5653.2
NOTE: The sectional area with '*', the conductor is made by solid copper or aluminum material
4 CORES
Four Cores Non-Armored PVC Cable
Cross
Section		 Conductor Dia.
(Approx.)		 PVC Insulation
Thickness		 PVC Sheath
Thickness		 Overall Dia.
(Approx.)		 Weight of Cable
(Approx.)
Copper Aluminum
mm2 mm mm mm mm kg/km kg/km
4x1.5 1.38 0.8 1.8 11.4  175.9  --
4x2.5 1.78 0.8 1.8 12.4  224.4  164.6
4x4 2.25 1.0  1.8 14.5  318.6  221.4
4x6 2.76 1.0  1.8 15.7  415.1  -
*4x6 2.83 1.0  1.8 15.9  -- 280.0
4x10 4.05 1.0  1.8 18.8  619.3  375.1
4x16 5.1 1.0  1.8 21.4  880.8  492.0
4x25 5.9 1.2 1.8 24.3  1256.5  648.4
4x35 6.9 1.2 1.8 26.7  1651.8  804.4
4x50 9.1 1.4 1.9 26.5  2147.2  1000.8
4x70 10.95 1.4 2.0  30.2  2994.8  1325.0
4x95 12.88 1.6 2.2 34.6  4089.0  1783.7
4x120 14.48 1.6 2.3 37.8  5063.5  2147.7
4x150 16.05 1.8 2.5 42.1  6259.8  2683.6
4x185 17.99 2.0  2.6 46.3  7785.7  3304.9
4x240 20.6 2.2 2.9 52.5  10136.9  4255.4
4x300 23.04 2.4 3.1 57.8  12581.8  5230.0
4x400 26.11 2.6 3.4 64.6  16154.6  6622.3
4x500 29.5 2.8 3.6 76.9  20660.0  8404.0
NOTE: The sectional area with '*', the conductor is made by solid copper or aluminum material
