N2XOH Cable Triple

Cable Freetox N2XOH Triple 0.6/1 kV

  • Rated Voltage 0.6/1kV
  • Conductor Material Plain annealed copper
  • Insulation Material XLPE
  • Sheath LSZH
  • Number of cores Triplex
  • Package Export wooden drum & iron wooden drum or as customer require

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

Cable Freetox N2XOH Triple Application

N2xoh cable suitable in low voltage power distribution networks. Special application in places with poor ventilation, direct application in places with public attendance high. It can be installed in ducts, ladders or cable trays, in dry, humid or wet environments.

Cable Freetox N2XOH Triple Standards:

National : NTP-IEC 60228; NTP-IEC 60502-1

International : IEC 60228; IEC 60332-1; IEC 60332-3-24 Cat.C; IEC 60502-1; IEC 60684-2; IEC 60754-2; IEC 60811-1-1; IEC 60811-1-2; IEC 60811-1-3; IEC 60811-1-4; IEC 60811-2-1; IEC 60811-3-1; IEC 61034

Construction

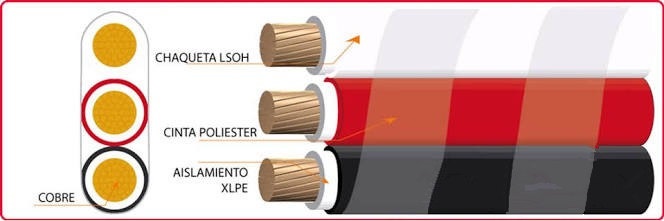

Cable Freetox N2XOH Triple Construction

Cable Freetox N2XOH Triple Construction

1. Conductor: Soft copper, class 2.

2. Insulation: Cross linked polyethylene XLPE.

3. Outer sheath: Halogen free thermoplastic compound HFFR-UV.

4. Tape: Polyester tape.

Colour:

Insulation: Natural.

TECHNICAL DATA :

Main characteristics:

The cable has excellent electric properties. The cross-linked polyethylene insulation allows a higher power capacity current under any operation conditions, lower dielectric losses, high insulation resistance. The outer sheath has the following characteristics: Fire retardant, low emission dense smoke and halogen free. Sunlight resistance.

Rated voltage:0.6/1kV
Test voltage:3.5kV A.C.
Maximum conductor temperature : 90°C.
Maximum operating temperature:130 °C
Short-circuit max. conductor temperature:250 °C

PARAMETER :

N2XOH TRIPLE CABLES Design Parameters

No. Conductor x Section No x mm2 Minimum number of wires Conductor diameter mm Insulation thickness mm Sheath thickness mm Outside diameter mm Nominal Weight kg/km Current capacity (*)
Buried A Air A Duct A
3-1x4 7 2,5 0,7 1,4 7,5x23 255 65 55 55
3-1x6 7 3,0 0,7 1,4 8,0x24 330 85 65 68
3-1x10 7 3,8 0,7 1,4 8,5x26 450 115 90 95
3-1x16 7 4,8 0,7 1,4 10x30 660 155 125 125
3-1x25 7 6,0 0,9 1,4 12x36 990 200 160 160
3-1x35 7 7,2 0,9 1,4 13x39 1 260 240 200 195
3-1x50 19 8,8 1,0 1,4 15x45 1 680 280 240 230
3-1x70 19 10,4 1,1 1,4 17x51 2 310 345 305 275
3-1x95 19 12,0 1,1 1,5 19x57 3 120 415 375 330
3-1x120 37 13,5 1,2 1,5 21x63 3 840 470 435 380
3-1x150 37 15,2 1,4 1,6 23x69 4 710 520 510 410
3-1x185 37 16,8 1,6 1,6 25x75 5 850 590 575 450
3-1x240 37 19,2 1,7 1,7 28x84 7 560 690 690 525
3-1x300 37 21,5 1,8 1,8 31x93 9 420 775 790 600
3-1x400 61 24,9 2,0 1,9 35x105 12 030 895 955 680
3-1x500 61 27,8 2,2 2,0 39x117 15 180 1 010 1100 700
