VVR PVC Insulated Cable

VVR cable is a type of flexible cable with PVC insulation, mainly used for power transmission and wiring. It consists of copper conductors with multiple stranded insulated cores, offering good flexibility and heat resistance. VVR cables are suitable for indoor wiring, power lines, and control circuits. Due to their excellent insulation properties and aging resistance, they are widely used in various buildings, machinery, and electronic equipment.

  1. Home
  2. Low Voltage Cables – LV
  3. Low Voltage Non-armored Copper Power Cable
  4. VVR PVC Insulated Cable
  • Vvr Pvc Insulated Cable

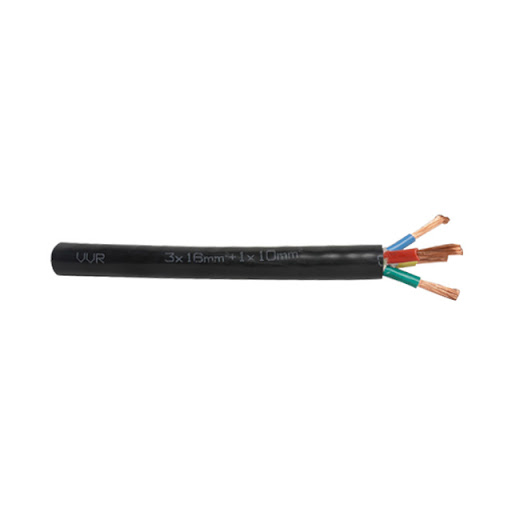

VVR PVC Insulated Cable

VVR PVC Insulated Cable

  • Rated Voltage 300/500V (for sizes < 1.5 mm²) 450/750V (for sizes ≥ 1.5 mm²)
  • Conductor Solid or stranded annealed copper Cross-sectional area: 0.5 mm² to 35 mm²
  • Insulation Material Polyvinyl Chloride (PVC)
  • Sheath PVC, white outer sheath
  • Package Export wooden drum & iron wooden drum or as customer require

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

VVR cable is a type of flexible cable with PVC insulation, mainly used for power transmission and wiring. It consists of copper conductors with multiple stranded insulated cores, offering good flexibility and heat resistance. VVR cables are suitable for indoor wiring, power lines, and control circuits. Due to their excellent insulation properties and aging resistance, they are widely used in various buildings, machinery, and electronic equipment.

Application and Description

VVR cable is designed for fixed installations in exposed wiring systems, either in air, conduits, or raceways, and is suitable for both dry and wet locations. It is also applicable for direct burial in the ground. Commonly used in industrial environments and residential wiring systems, VVR cables provide a reliable and cost-effective solution for low-voltage power distribution.

Standards

  • Reference Standard: TIS 11-2531

  • Voltage Grade: Not exceeding 300V

  • Test Voltage: 2000V (5 minutes)

VVR Cable Construction

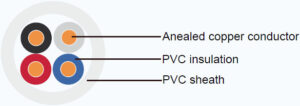

VVR Cable Construction

Cable Construction

  • Conductor: Solid or stranded annealed copper

    • Cross-sectional area: 0.5 mm² to 35 mm²

  • Insulation: Polyvinyl Chloride (PVC)

  • Sheath: PVC, white outer sheath

  • Color Coding:

    • 1 Core: Light gray

    • 2 Cores: Light gray & Black

    • 3 Cores: Light gray, Black & Red

    • 4 Cores: Light gray, Black, Red & Blue

Technical Characteristics

  • Maximum Conductor Temperature: 70°C

  • Rated Voltage:

    • 300/500V (for sizes < 1.5 mm²)

    • 450/750V (for sizes ≥ 1.5 mm²)

  • Minimum Insulation Resistance (at 70°C): Varies with size, ≥ 0.0043 MΩ·km

  • Operating Temperature Range: -15°C to +70°C

  • Installation: Suitable for fixed installations in air, conduit, ducts, or underground.

Product Features

  • Excellent insulation and electrical properties

  • Flame-retardant PVC insulation

  • Easy to install in confined spaces due to flexibility (for stranded versions)

  • Cost-effective solution for general-purpose wiring

Available Configurations

  • Number of Cores: 1, 2, 3, or 4

  • Sizes: 0.5 mm² to 35 mm²

  • Stranding: Available in both solid and stranded versions (1/solid or 7/stranded, 19/stranded for larger sizes)

VVR Cable Data Sheet
No. of core Nominal cross section area Number And diameter of wire Insulation thickness Sheath thickness Max overall diameter Minimum Insulation resistance at 70 °C Maximum continuous current rating in free air Cable weight
mm^2 No./mm mm mm mm MΩ-Km A Kg/Km
1 0.5 1 / 0.80 0.6 0.9 4.4 0.0146 10 21
1 1 1 / 1.13 0.6 0.9 4.8 0.0115 15 28
1 1 7 / 0.43 0.6 0.9 5.0 0.0110 15 30
1 1.5 1 / 1.38 0.6 0.9 5.2 0.0100 19 34
1 1.5 7 / 0.53 0.6 0.9 5.4 0.0094 19 37
1 2.5 1 / 1.78 0.7 0.9 5.8 0.0092 26 48
1 2.5 7 / 0.67 0.7 0.9 6.2 0.0084 26 50
1 4 1 / 2.25 0.8 0.9 6.6 0.0086 35 65
1 4 7 / 0.85 0.8 0.9 7.0 0.0078 35 70
1 6 7 / 1.04 0.8 0.9 7.6 0.0066 46 95
1 10 7 / 1.35 0.9 0.9 8.6 0.0059 64 140
1 16 7 / 1.70 1.0 1.2 11.0 0.0053 87 220
1 25 7 / 2.14 1.2 1.2 12.5 0.0051 117 330
1 35 19 / 1.53 1.2 1.2 14.0 0.0043 144 430
2 0.5 1 / 0.80 0.6 0.9 6.8 0.0146 9 48
2 1 1 / 1.13 0.6 0.9 7.6 0.0115 14 65
2 1 7 / 0.43 0.6 0.9 8.0 0.0110 14 65
2 1.5 1 / 1.38 0.6 1.2 8.8 0.0100 18 90
2 1.5 7 / 0.53 0.6 1.2 9.2 0.0094 18 90
2 2.5 1 / 1.78 0.7 1.2 10.0 0.0092 24 130
2 2.5 7 / 0.67 0.7 1.2 11.0 0.0084 24 130
2 4 1 / 2.25 0.8 1.2 11.5 0.0086 32 180
2 4 7 / 0.85 0.8 1.2 12.5 0.0078 32 180
2 6 7 / 1.04 0.8 1.2 13.5 0.0066 43 260
2 10 7 / 1.35 0.9 1.2 16.0 0.0059 60 390
2 16 7 / 1.70 1.0 1.4 19.0 0.0053 80 580
2 25 7 / 2.14 1.2 1.4 22.5 0.0051 107 870
2 35 19 / 1.53 1.2 1.4 25.5 0.0043 132 1130
3 0.5 1 / 0.80 0.6 0.9 7.2 0.0146 7 55
3 1 1 / 1.13 0.6 0.9 8.0 0.0115 11 80
3 1 7 / 0.43 0.6 0.9 8.4 0.0110 11 80
3 1.5 1 / 1.38 0.6 1.2 9.2 0.0100 15 110
3 1.5 7 / 0.53 0.6 1.2 9.6 0.0094 15 110
3 2.5 1 / 1.78 0.7 1.2 10.5 0.0092 20 160
3 2.5 7 / 0.67 0.7 1.2 11.5 0.0084 20 160
3 4 1 / 2.25 0.8 1.2 12.5 0.0086 27 230
3 4 7 / 0.85 0.8 1.2 13.0 0.0078 27 230
3 6 7 / 1.04 0.8 1.2 14.5 0.0066 36 330
3 10 7 / 1.35 0.9 1.2 17.0 0.0059 50 490
3 16 7 / 1.70 1.0 1.4 20.0 0.0053 67 740
3 25 7 / 2.14 1.2 1.8 25.0 0.0051 90 1180
3 35 19 / 1.53 1.2 1.8 28.0 0.0043 110 1530
4 0.5 1 / 0.80 0.6 0.9 7.8 0.0146 7 65
4 1 1 / 1.13 0.6 0.9 8.6 0.0115 10 100
4 1 7 / 0.43 0.6 0.9 9.0 0.0110 10 100
4 1.5 1 / 1.38 0.6 1.2 10.0 0.0100 13 130
4 1.5 7 / 0.53 0.6 1.2 10.5 0.0094 13 130
4 2.5 1 / 1.78 0.7 1.2 11.5 0.0092 18 190
4 2.5 7 / 0.67 0.7 1.2 12.5 0.0084 18 190
4 4 1 / 2.25 0.8 1.2 13.5 0.0086 25 290
4 4 7 / 0.85 0.8 1.2 14.0 0.0078 25 290
4 6 7 / 1.04 0.8 1.2 15.5 0.0066 33 410
4 10 7 / 1.35 0.9 1.4 19.0 0.0059 45 640
4 16 7 / 1.70 1.0v 1.4 22.0 0.0053 60 940
4 25 7 / 2.14 1.2 1.8 27.5 0.0051 81 1490
4 35 19 / 1.53 1.2 1.8 30.5 0.0043 99 1950
