YVV Cable

0.6/1 kV PVC Insulated Multicore Low Voltage Power Cables

  • Rated Voltage 0.6/1kV
  • Construction Cu / Pvc / Pvc / Pvc
  • Standard IEC60502-1
  • Max. operating temperature +70°C
  • Max. curcuit temperature 160°C
  • Min. bending radius 12xD
  • Cable Type YVV Cable

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

YVV Cable Application

Used as lighting and power distribution cable, installed in areas where severe mechanical stress is avoided. Can be laid in doors,out-doors,buried or in cable tranches.

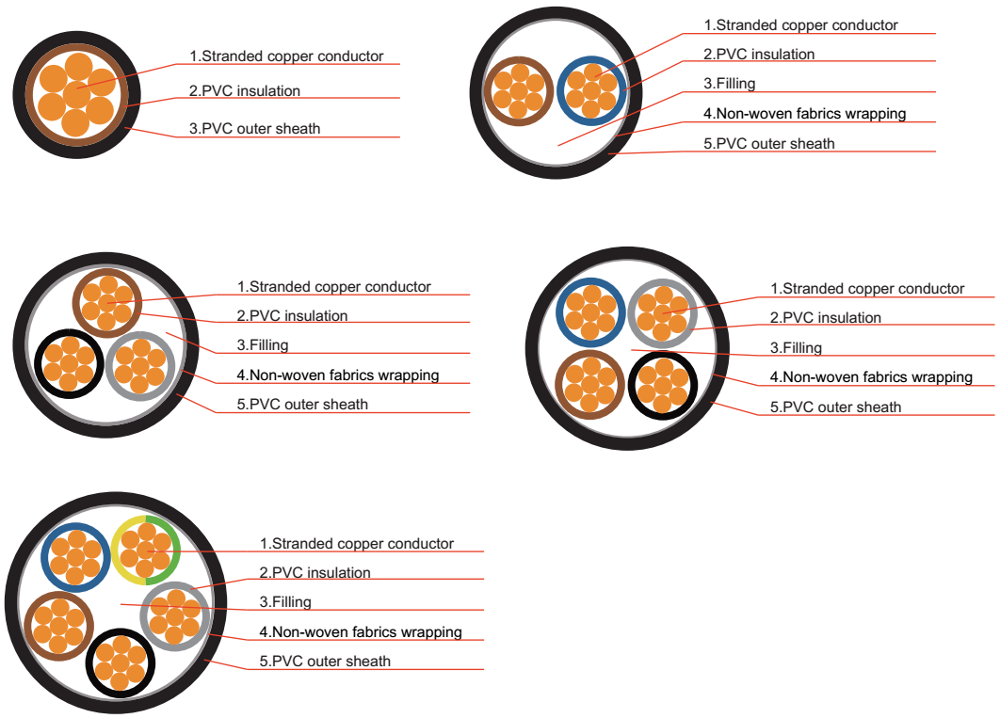

YVV Cable CONSTRUCTION :

YVV Cable Construction
PARAMETER :

YVV CABLE PARAMETER

Nominal Cross Section
(mm²)		 Overall Diameter
(mm)		 Net Weight
(kg/km) approx.		 Conductor DC resistance at 20°C
(ohm/km) max.		 Current Carrying Capacity in
Ground (A) Air (A)
2x1,5 re 10,50 150 12,1 15 18,5
2x2,5 re 11,50 200 7,41 20 25
2x4 re 13,00 270 4,61 27 34
2x6 re 14,00 310 3,08 34 43
2X10 rm 15,80 450 1,83 46 60
2x16 rm 18,00 640 1,15 62 80
2x25 rm 21,00 930 0,727 80 101
2x35 rm 23,00 1200 0,524 99 126
2x250 rm 27,00 1600 0,387 118 153
2x70 rm 30,00 2150 0,268 149 196
2x95 rm 34,00 2850 0,193 179 238
2x120 rm 38,00 3550 0,153 206 276
2x150 rm 41,00 4300 0,124 225 318
2x185 rm 46,00 5300 0,0991 255 364
2x240 rm 52,00 6900 0,0754 297 430
3x1,5 re 10,5 180 12,1 15 18,5
3x2,5 re 11,5 230 7,41 20 25
3x4 re 13,5 320 4,61 27 34
3x6 re 14,5 400 3,08 34 43
3x10 rm 17,5 570 1,83 46 60
3x16 rm 19 800 1,15 62 80
3x25 rm 23 1180 0,727 80 101
3x35 rm 25 1500 0,524 99 126
3x50 rm 28 2000 0,387 118 153
3x70 rm 32 2750 0,268 149 196
3x95 rm 37 3750 0,193 179 238
3x120 rm 41 4600 0,153 206 276
3x150 rm 44 5600 0,124 225 318
3x185 + 95 55,00 8050 0,0991/0,193 255 364
3x240 + 120 60,00 10500 0,0754/0,153 206 276
3x300 + 150 66,00 13000 0,0601/0,124 339 497
3x400 + 185 74,00 16300 0,0470/0,0991 410 530
