NAYY Cable

NAYY cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be expected.

  1. Home
  2. Low Voltage Cables – LV
  3. Low Voltage Non-armoured Aluminum Power Cable
  4. NAYY Cable
  • slide

NAYY Cable

0.6/1kV Aluminum Conductor Low Voltage Power Cable with PVC Insulation and Sheath AL-PVC-PVC

  • Rated Voltage 0.6/1kV
  • Conductor Material Aluminum
  • Insulation Material PVC
  • Sheath PVC
  • Number of cores Multi Core
  • Package Export wooden drum & iron wooden drum or as customer require

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

NAYY Cable Application:

NAYY cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be expected.

NAYY Cable Standards:

DIN VDE 0276-603 HD 603 S1 DIN EN 60228 class 1 and 2 (construction) HD 308 S2 (core identification)

CONSTRUCTION :

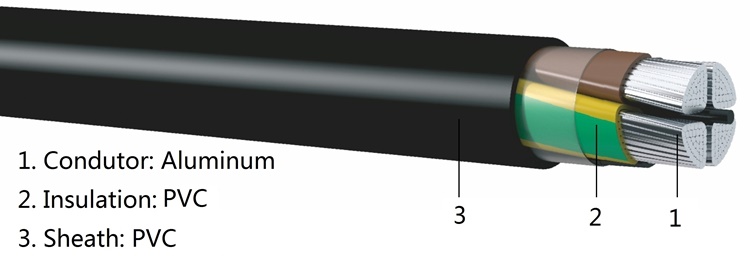

NAYY Cable Construction

NAYY Cable Construction

1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Polyvinyl chloride PVC
3. Outer sheath: Polyvinyl chloride PVC

TECHNICAL DATA :
Voltage Rating Uo/U (Um) 0.6/1 (1.2)kV
Nominal Voltage DC (core-earth/core-core) :1.8/1.8kV
Test Voltage:4kV

Temperature Rating:
Flexed: 5°C to +70°C
Fixed: -35°C to +70°C

Maximum Short Circuit Temperature:

+160°C (max 5 seconds)

Minimum Bend Radius:
Single core: 15 x overall diameter
Multi core: 12 x overall diameter

PARAMETER :

0.6/1kV-1 core aluminum conductor PVC insulated PVC sheathed power
0.6/1kV-1 core aluminum conductor PVC insulated PVC sheathed power cable
No. of cores and nominal cross section Thickness of Insulation  Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor（20℃） Current carrying capacity
(mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
1X10 1.0 1.4 8.6 97 3.08 42 65
1X16 1.0 1.4 9.6 125 1.91 58 85
1X25 1.2 1.4 11.2 171 1.2 74 105
1X35 1.2 1.4 12.2 206 0.868 90 125
1X50 1.4 1.4 13.6 265 0.641 110 150
1X70 1.4 1.4 15.5 343 0.443 140 185
1X95 1.6 1.5 17.7 453 0.32 170 225
1X120 1.6 1.5 19.1 545 0.253 200 255
1X150 1.8 1.6 21 675 0.206 230 285
1X185 2.0 1.7 23.3 821 0.164 265 323
1X240 2.2 1.8 26.2 1044 0.125 320 380
1X300 2.4 1.9 29 1284 0.1 370 430
1X400 2.6 2 32.3 1638 0.0778 435 490
1X500 2.8 2.1 36.2 2063 0.0605 510 565
1X630 2.8 2.2 40 2515 0.0469 600 655
0.6/1kV-2 core aluminum conductor PVC insulated PVC sheathed power
0.6/1kV-2 core aluminum conductor PVC insulated PVC sheathed power cable
No. of cores and nominal cross section Thickness of Insulation  Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor（20℃） Current carrying capacity
(mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
2X2.5 0.8 1.8 10.9 118 12.1 19 -
2X4 1 1.8 12.7 156 7.41 26 -
2X6 1 1.8 13.7 185 4.61 34 -
2X10 1 1.8 16.2 255 3.08 44 65
2X16 1 1.8 18.4 330 1.91 59 85
2X25 1.2 1.8 21.7 454 1.2 76 110
2X35 1.2 1.8 23.0 538 0.868 93 135
2X50 1.4 1.8 26.4 699 0.641 115 160
2X70 1.4 1.9 29.7 899 0.443 145 195
2X95 1.6 2.0 34.2 1196 0.32 170 235
2X120 1.6 2.1 37.2 1436 0.253 205 270
2X150 1.8 2.2 41.2 1776 0.206 235 305
2X185 2 2.4 45.5 2165 0.164 275 345
0.6/1kV-3 core aluminum conductor PVC insulated PVC sheathed power
0.6/1kV-3 core aluminum conductor PVC insulated PVC sheathed power cable
No. of cores and nominal cross section Thickness of Insulation  Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor（20℃） Current carrying capacity
(mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
3X2.5 0.8 1.8 11.4 137 12.1 17 -
3X4 1.0 1.8 13.3 188 7.41 22 -
3X6 1.0 1.8 14.5 224 4.61 29 -
3X10 1.0 1.8 17.1 307 3.08 38 55
3X16 1.0 1.8 19.5 403 1.91 51 73
3X25 1.2 1.8 23.1 559 1.2 65 94
3X35 1.2 1.8 24.5 673 0.868 80 110
3X50 1.4 1.8 28.2 882 0.641 98 135
3X70 1.4 1.9 31.8 1150 0.443 120 165
3X95 1.6 2.1 36.6 1538 0.32 150 200
3X120 1.6 2.2 39.9 1855 0.253 180 230
3X150 1.8 2.3 44.2 2301 0.206 200 255
3X185 2 2.5 48.8 2810 0.164 235 290
3X240 2.2 2.7 55.0 3597 0.125 280 335
3X300 2.4 2.8 60.8 4428 0.1 320 375
0.6/1kV-4 core aluminum conductor PVC insulated PVC sheathed power cable
0.6/1kV-4 core aluminum conductor PVC insulated PVC sheathed power cable
No. of cores and nominal cross section Thickness of Insulation  Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor（20℃） Current carrying capacity
(mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
4X2.5 0.8 1.8 12.3 160 12.1 17 -
4X4 1 1.8 14.4 224 7.41 22 -
4X6 1 1.8 15.7 270 4.61 29 -
4X10 1 1.8 18.7 373 3.08 38 55
4X16 1 1.8 21.3 494 1.91 51 73
4X25 1.2 1.8 25.3 692 1.2 65 94
4X35 1.2 1.8 26.9 838 0.868 80 110
4X50 1.4 1.9 31.2 1118 0.641 98 135
4X70 1.4 2.0 35.3 1464 0.443 120 165
4X95 1.6 2.2 40.7 1962 0.32 150 200
4X120 1.6 2.3 44.3 2371 0.253 180 230
4X150 1.8 2.5 49.2 2946 0.206 200 255
4X185 2 2.6 54.4 3603 0.164 235 290
4X240 2.2 2.9 61.3 4619 0.125 280 335
4X300 2.4 3.1 67.8 5694 0.1 320 375
0.6/1kV-5 core aluminum conductor PVC insulated PVC sheathed power cable
0.6/1kV-5 core aluminum conductor PVC insulated PVC sheathed power cable
No. of cores and nominal cross section Thickness of Insulation  Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor（20℃） Current carrying capacity
(mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
5X2.5 0.8 1.8 13.3 195.8 12.1 22 -
5X4 1 1.8 15.6 271.3 7.41 29 -
5X6 1 1.8 17.1 320.4 4.61 38 -
5X10 1 1.8 20.4 455.3 3.08 51 55
5X16 1 1.8 23.4 593.7 1.91 65 73
5X25 1.2 1.8 27.9 837.1 1.2 80 94
5X35 1.2 1.9 29.7 1026.1 0.868 98 110
5X50 1.4 2.0 34.6 1377.5 0.641 120 135
5X70 1.4 2.2 39.2 1806.4 0.443 150 165
5X95 1.6 2.3 45.2 2425.6 0.32 180 200
5X120 1.6 2.5 49.3 2934.6 0.253 200 230
5X150 1.8 2.6 54.8 3650.9 0.206 235 255
5X185 2 2.8 60.5 4468.0 0.164 280 290
5X240 2.2 3.1 68.3 5734.5 0.125 320 335
5X300 2.4 3.3 75.5 7074.1 0.1 380 375
0.6/1kV-3+1 core aluminum conductor PVC insulated PVC sheathed power cable
0.6/1kV-3+1 core aluminum conductor PVC insulated PVC sheathed power cable
No. of cores and nominal cross section Thickness of Insulation  Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor（20℃） Current carrying capacity
(mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
3*4+1*2.5 1.0/0.8 1.8 13.9 217 7.41/12.1 29 -
3*6+1*4 1.0/1.0 1.8 15.4 259 4.61/7.41 38 -
3*10+1*6 1.0/1.0 1.8 18.0 347 3.08/4.61 51 55
3*16+1*10 1.0/1.0 1.8 20.7 464 1.91/3.08 65 73
3*25+1*16 1.2/1.0 1.8 24.4 659 1.2/1.91 80 94
3*35+1*16 1.2/1.0 1.8 25.6 764 0.868/1.91 98 110
3*50+1*25 1.4/1.2 1.9 29.8 1025 0.641/1.2 120 135
3*70+1*35 1.4/1.2 2.0 33.3 1323 0.443/0.868 150 165
3*95+1*50 1.6/1.4 2.1 38.4 1765 0.32/0.641 180 200
3*120+1*70 1.6/1.4 2.2 42.2 2145 0.253/0.443 200 230
3*150+1*70 1.8/1.4 2.4 45.9 2537 0.206/0.443 235 255
3*185+1*95 2.0/1.6 2.5 51.0 3207 0.164/0.32 280 290
3*240+1*120 2.2/1.6 2.7 57.2 4033 0.125/0.253 320 335
3*300+1*150 2.4/1.8 2.9 63.3 4980 0.1/0.206 380 375
0.6/1kV-4+1core aluminum conductor PVC insulated PVC sheathed power cable
0.6/1kV-4+1core aluminum conductor PVC insulated PVC sheathed power cable
No. of cores and nominal cross section Thickness of Insulation  Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor（20℃） Current carrying capacity
(mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
4*4+1*2.5 1.0/0.8 1.8 15.2 249 7.41/12.1 29 -
4*6+1*4 1.0/1.0 1.8 16.8 309 4.61/7.41 38 -
4*10+1*6 1.0/1.0 1.8 19.7 420 3.08/4.61 51 55
4*16+1*10 1.0/1.0 1.8 22.8 563 1.91/3.08 65 73
4*25+1*16 1.2/1.0 1.8 27.0 792 1.2/1.91 80 94
4*35+1*16 1.2/1.0 1.8 28.4 932 0.868/1.91 98 110
4*50+1*25 1.4/1.2 2.0 33.2 1282 0.641/1.2 120 135
4*70+1*35 1.4/1.2 2.1 37.3 1648 0.443/0.868 150 165
4*95+1*50 1.6/1.4 2.3 43.1 2245 0.32/0.641 180 200
4*120+1*70 1.6/1.4 2.4 47.3 2731 0.253/0.443 200 230
4*150+1*70 1.8/1.4 2.5 51.6 3229 0.206/0.443 235 255
4*185+1*95 2.0/1.6 2.7 57.5 4042 0.164/0.32 280 290
4*240+1*120 2.2/1.6 3.0 64.5 5143 0.125/0.253 320 335
4*300+1*150 2.4/1.8 3.2 71.4 6342 0.1/0.206 380 375
0.6/1kV-3+2 core aluminum conductor PVC insulated PVC sheathed power cable
0.6/1kV-3+2 core aluminum conductor PVC insulated PVC sheathed power cable
No. of cores and nominal cross section Thickness of Insulation  Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor（20℃） Current carrying capacity
(mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
3*4+2*2.5 1.0/0.8 1.8 14.7 234 7.41/12.1 29 -
3*6+2*4 1.0/1.0 1.8 16.5 298 4.61/7.41 38 -
3*10+2*6 1.0/1.0 1.8 19.0 394 3.08/4.61 51 55
3*16+2*10 1.0/1.0 1.8 22.2 533 1.91/3.08 65 73
3*25+2*16 1.2/1.0 1.8 26.0 739 1.2/1.91 80 94
3*35+2*16 1.2/1.0 1.8 27.0 841 0.868/1.91 98 110
3*50+2*25 1.4/1.2 1.9 32.0 1212 0.641/1.2 120 135
3*70+2*35 1.4/1.2 2.0 35.4 1486 0.443/0.868 150 165
3*95+2*50 1.6/1.4 2.2 41.0 2004 0.32/0.641 180 200
3*120+2*70 1.6/1.4 2.3 45.3 2477 0.253/0.443 200 230
3*150+2*70 1.8/1.4 2.4 48.5 2859 0.206/0.443 235 255
3*185+2*95 2.0/1.6 2.6 54.4 3628 0.164/0.32 280 290
3*240+2*120 2.2/1.6 2.8 60.7 4570 0.125/0.253 320 335
3*300+2*150 2.4/1.8 3.0 67.2 5624 0.1/0.206 380 375
