U-1000 Ar2V Cable

Cable NF C 32-321 U-1000 Ar2V AL Unarmoured Aluminium Cable for Industrial

  • Rated Voltage 0.6/1kV
  • Conductor Material Aluminum
  • Insulation Material XLPE
  • Sheath Polyvinylchloride compound PVC 5V-90
  • Number of cores Multi Core
  • Package Export wooden drum & iron wooden drum or as customer require

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

U-1000 Ar2V Cable Application:

Low voltage power cable for fixed application, Aluminium conductor, XLPE insulation, and PVC outer sheath. U-1000 AR2V aluminum cables can be used in all low-voltage power installations.can be fixed on cable trays, within conduits or fixed to walls. They also can be buried directly with extra mechanical protection

U-1000 Ar2V Cable Standards:

XP C 32-321（ formerly NF C 32-321） , EN 60332-1/NF C 32-070

CONSTRUCTION :

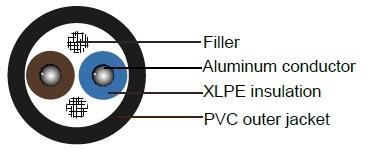

U-1000 Ar2V Cable Construction

U-1000 Ar2V Cable Construction

Conductors: Al, class 2 according to EN 60228
Insulation: : XLPE compound
Bedding: Extruded elastomere or plastomere
compound
Sheath: PVC compound

TECHNICAL DATA :

U-1000 AR2V - Technical data and tests
Standards NF C 32-321 C32-321/A1; IEC 60502-1 NF EN 60332-1-2; NF C 15-100
Nominal voltage U0/U 0,6/1 kV
Test voltage (50 Hz) 4 kV
Maximun voltage Um 1,2 kV
Maximun operating temperature +90° C
Maximun short circuit temperature +250° C
Min. operating temperature
(without mechanical shocks)		 -25° C
Minimum installation and use temp. -10° C
Minimum bending radius per
D cable diameter (in mm)		 6 x D
Maximum pulling stress 5 kg/mm² (of copper cross section)
Sheath colour  black

PARAMETER :

AWG CROSS SECTION MM2 INSULATION THICKNESS MM MINIMUM SHEATH THICKNESS MM MAXIMUM OVERALL DIAMETER MM APPROX CABLE WEIGHT KG/KM
2 1x35 0.9 1.09 13.5 190
1 1x50 1 1.09 15 245
2/0 1x70 1.1 1.09 17 325
3/0 1x95 1.1 1.18 19 425
4/0 1x120 1.2 1.18 21 520
300MCM 1x150 1.4 1.26 23 630
500MCM 1x185 1.6 1.26 25.5 780
750MCM 1x240 1.7 1.35 28.5 990
- 1x300 1.8 1.43 31 1210
- 1x400 2 1.52 34.2 1510
- 1x500 2.2 1.6 38 1860
- 1x630 2.4 1.77 44 2400
8 2x10 0.7 1.43 16,0 275
6 2x16 0.7 1.43 18,5 360
4 2x25 0.9 1.43 22,0 530
2 2x35 0.9 1.43 24,5 640
8 3x10 0.7 1.43 17,0 300
6 3x16 0.7 1.43 19,5 400
4 3x25 0.9 1.43 23,5 600
2 3x35 0.9 1.43 26,0 750
1 3x50 1 1.43 29,0 970
2/0 3x70 1.1 1.52 34,0 1310
3/0 3x95 1.1 1.6 38,5 1730
4/0 3x120 1.2 1.69 42,5 2120
300MCM 3x150 1.4 1.86 47,5 2640
500MCM 3x185 1.6 1.94 53,0 3290
750MCM 3x240 1.7 2.11 59,5 4210
  3x300 1.8 2.28 66,0 5210
4 4x25 0.9 1.43 25,5 720
2 4x35 0.9 1.43 28,5 910
1 3x50+35 1 1.52 31,1 1130
2/0 3x70+50 1.1 1.6 36,2 1540
3/0 3x95+50 1.1 1.69 40,6 1940
4/0 3x120+70 1.2 1.86 45,4 2430
300MCM 3x150+70 1.4 1.94 49,5 2890
500MCM 3x185+70 1.6 2.11 54,4 3660
750MCM 3x240+95 1.7 2.28 61,5 4680
