N2XB2Y Cable

Power cable 0,6/1 kV with Cu conductors, XLPE insulated and HDPE sheathed

  • Rated Voltage 0.6/1kV
  • Conductor Material Plain annealed copper
  • Insulation Material XLPE
  • Sheath HDPE
  • Armour Double galvanized steel tape
  • Package Export wooden drum & iron wooden drum or as customer require

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

N2XB2Y Cable Application

N2XB2Y cable is used for laying in the ground,but also in water, within facilities, in cable canals, in concrete. Used in electric power plants, transformer stations, industrial plants, metropolitan networks and other electric plants. Applied in conditions requiring protection against heavier mechanical damages, but where cables are not exposed to heavier tensile strain.

N2XB2Y Cable Standards:

HD 603 S1, IEC 60502-1

CONSTRUCTION :

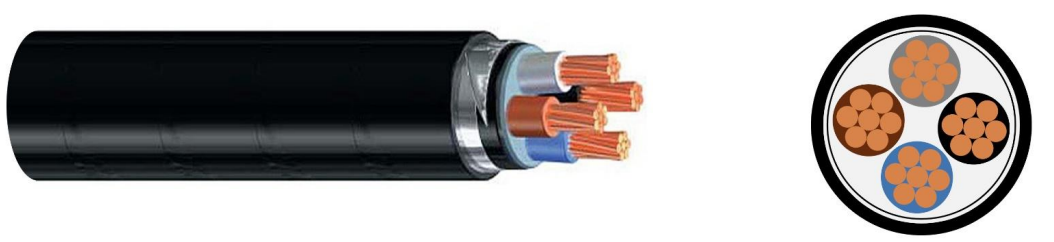

N2XB2Y Cable Construction

N2XB2Y Cable Construction

Conductor: Copper  Class 1: solid conductor, or Class 2: stranded conductor
Insulation:Cross-linked polyethylene XLPE
Filler: Non-hygroscopic material
Binder tape: Non-hygroscopic material
Inner sheath: Polyvinyl chloride PVC
Armour: Double galvanized steel tape
Outer sheath: HDPE

TECHNICAL DATA :

Voltage Rating Uo/U (Um) 0.6/1 (1.2)kV
Nominal Voltage DC (core-earth/core-core) :1.8/1.8kV
Test Voltage:4kV
Min. temp. for cable laying: -5°C
Max. working temperature: 90°C
Max. short-circuit temperature: 250°C
Minimum Bend Radius:
Single core: 15 x overall diameter
Multi core: 12 x overall diameter

PARAMETER :

NOMINAL CROSS-SECTION MAX.
RESISTANCE AT 20°C		 CURRENT CAPACITY IN
AIR		 CURRENT CAPACITY IN
EARTH		 OUTER DIAM. (APPROX.) CABLE WEIGHT (APPROX.)
mm² Ω/km A A mm kg/km
2x4 4,61 42 52 14,2 326
2x6 3,08 53 64 15,2 390
2x10 1,83 74 86 17,2 521
2x16 1,15 98 112 19,0 706
2x25 0,727 133 145 22,0 1001
2x35 0,524 162 174 24,2 1275
2x50 0,387 197 206 27,4 1729
2x70 0,268 250 254 31,4 2299
3x10 1830 74 86 18,0 637
3x16 1150 98 112 19,9 884
3x25 0,727 133 145 23,2 1275
3x35 0,524 162 174 24,5 1341
3x50 0,387 197 206 28,3 2044
3x70 0,268 250 254 32,5 2709
3x95 0,193 308 305 35,7 3493
3x120 0,153 359 348 39,1 4363
3x150 0,124 412 392 43,2 5336
3x185 0,0991 475 444 47,1 6470
3x240 0,0754 564 517 52,5 8185
4x10 1830 74 86 19,3 841
4x16 1150 98 112 21,5 1162
4x25 0,727 133 145 25,1 1671
4x35 0,524 162 174 27,1 1847
4x50 0,387 197 206 31,2 2741
4x70 0,268 250 254 35,8 3662
4x95 0,193 308 305 39,6 4821
4x120 0,153 359 348 43,4 5903
4x150 0,124 412 392 48,8 7290
4x185 0,0991 475 444 53,2 8815
4x240 0,0754 564 517 59,3 11194
5x10 1830 74 86 20,7 885,6
5x16 1150 98 112 23,1 1258,4
5x25 0,727 133 145 27,2 1847,4
5x35 0,524 162 174 30,2 2429,2
5x50 0,387 197 206 35,6 3545,1
5x70 0,268 250 254 40,7 4781,6
5x95 0,193 308 305 45,4 6287,1
