NA2XBY Cable

Low Voltage Aluminum XLPE Cable with Double Galvanized Steel Tape Armoured

Rated Voltage 0.6/1kV
Conductor Material Aluminum
Insulation Material XLPE
Sheath Polyvinylchloride compound PVC 5V-90
Armour Double galvanized steel tape
Package Export wooden drum & iron wooden drum or as customer require

Conatact us

NA2XBY cable represents a premium medium voltage power cable solution designed for reliable electrical distribution in demanding applications.

What is NA2XBY Cable?

NA2XBY cable is a medium voltage power cable featuring cross-linked polyethylene (XLPE) insulation with aluminum conductors and PVC outer sheath. The designation 'NA2XBY' follows European cable naming conventions and indicates specific construction characteristics that make it suitable for underground distribution, industrial installations, and power transmission applications.

Cable Designation Breakdown N - Standard medium voltage cable according to VDE standards A - Aluminum conductor 2X - Cross-linked polyethylene (XLPE) insulation B - Moisture barrier (lead sheath or equivalent) Y - PVC outer sheath

NA2XBY Cable Application

NA2XBY cable represents a proven solution for medium voltage power distribution applications requiring reliable performance, cost-effectiveness, and long-term durability. Its combination of aluminum conductors, XLPE insulation, and protective sheathing systems makes it ideal for underground distribution, industrial installations, and commercial applications.

NA2XBY Cable Standards:

IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)

CONSTRUCTION :

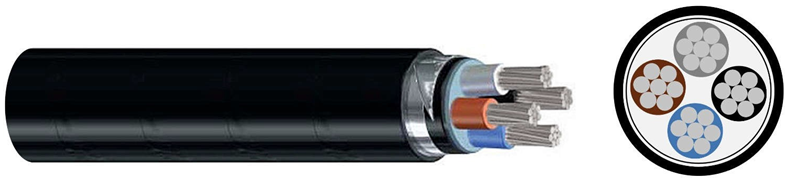

NA2XBY Cable Construction

NA2XBY Cable Construction

Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
Insulation:Cross-linked polyethylene XLPE
Filler: Non-hygroscopic material
Binder tape: Non-hygroscopic material
Inner sheath: Polyvinyl chloride PVC
Armour: Double galvanized steel tape
Outer sheath: Polyvinyl chloride PVC

TECHNICAL :

Voltage Rating Uo/U (Um) 0.6/1 (1.2)kV
Nominal Voltage DC (core-earth/core-core) :1.8/1.8kV
Test Voltage:4kV
Temperature Rating:
Flexed: 5°C to +90°C
Fixed: -35°C to +90°C
Maximum Short Circuit Temperature:
+250°C (max 5 seconds)
Minimum Bend Radius:
Single core: 15 x overall diameter
Multi core: 12 x overall diameter

Whether used in urban distribution networks, industrial facilities, or commercial buildings, NA2XBY cable provides the reliability and performance required for modern electrical infrastructure.

As electrical systems continue to evolve with smart grid technologies and renewable energy integration, NA2XBY cable remains a fundamental component in delivering safe, reliable, and efficient electrical power distribution for diverse applications worldwide.

PARAMETER :

0.6/1kV-1 core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable

0.6/1kV-1 core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable
Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	Approx.	Max.D.C resistance of conductor（20℃）	Current carrying capacity
Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm2	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
1X10	0.7	0.2	1.8	11.8	206	3.08	58	47
1X16	0.7	0.2	1.8	12.9	247	1.91	75	62
1X25	0.9	0.2	1.8	14.6	310	1.2	100	78
1X35	0.9	0.2	1.8	15.2	352	0.868	120	94
1X50	1	0.2	1.8	16.7	423	0.641	145	110
1X70	1.1	0.2	1.8	18.5	523	0.443	190	135
1X95	1.1	0.2	1.8	20.1	629	0.32	235	160
1X120	1.2	0.2	1.8	21.7	738	0.253	270	185
1X150	1.4	0.2	1.8	23.7	877	0.206	310	205
1X185	1.6	0.2	1.8	25.7	1031	0.164	355	235
1X240	1.7	0.2	1.8	28	1254	0.125	-	-
1X300	1.8	0.2	1.9	31	1495	0.1	-	-
1X400	2	0.2	2	35	1904	0.0778	-	-

0.6/1kV-2 core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable

0.6/1kV-2 core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable
Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	Approx.	Max.D.C resistance of conductor（20℃）	Current carrying capacity
Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm2	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
2X2.5	0.7	0.2	1.8	13.4	236	12.1	-	23
2X4	0.7	0.2	1.8	14.3	269	7.41	-	30
2X6	0.7	0.2	1.8	15.3	307	4.61	-	38
2X10	0.7	0.2	1.8	17.8	397	3.08	50	47
2X16	0.7	0.2	1.8	20	493	1.91	64	62
2X25	0.9	0.2	1.8	23.3	643	1.2	86	78
2X35	0.9	0.2	1.8	24.6	738	0.868	105	94
2X50	1	0.2	1.8	27.2	896	0.641	125	110
2X70	1.1	0.2	1.9	31.4	1164	0.443	165	135
2X95	1.1	0.2	2	35.5	1480	0.32	200	160
2X120	1.2	0.5	2.2	40.2	2164	0.253	235	185
2X150	1.4	0.5	2.3	44.2	2572	0.206	270	205
2X185	1.6	0.5	2.5	48.9	3089	0.164	310	235

0.6/1kV-3 core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable

0.6/1kV-3 core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable
Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	Approx.	Max.D.C resistance of conductor（20℃）	Current carrying capacity
Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm2	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
3X2.5	0.7	0.2	1.8	13.9	257	12.1	-	23
3X4	0.7	0.2	1.8	14.8	296	7.41	-	30
3X6	0.7	0.2	1.8	16	342	4.61	-	38
3X10	0.7	0.2	1.8	18.6	447	3.08	50	47
3X16	0.9	0.2	1.8	21	563	1.91	64	62
3X25	0.9	0.2	1.8	24.6	744	1.2	86	78
3X35	0.9	0.2	1.8	26	869	0.868	105	94
3X50	1	0.2	1.9	28.9	1074	0.641	125	110
3X70	1.1	0.2	2	33.9	1443	0.443	165	135
3X95	1.1	0.5	2.2	39	2183	0.32	200	160
3X120	1.2	0.5	2.3	42.7	2593	0.253	235	185
3X150	1.4	0.5	2.4	47.5	3155	0.206	270	205
3X185	1.6	0.5	2.6	52.1	3743	0.164	310	235
3X240	1.7	0.5	2.8	58.3	4641	0.125	365	260
3X300	1.8	0.5	2.9	63.6	5508	0.1	420	290

0.6/1kV-4 core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable

0.6/1kV-4 core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable
Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	Approx.	Max.D.C resistance of conductor（20℃）	Current carrying capacity
Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm2	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
4X2.5	0.7	0.2	1.8	14.7	288	12.1	-	23
4X4	0.7	0.2	1.8	15.8	334	7.41	-	30
4X6	0.7	0.2	1.8	17	384	4.61	-	38
4X10	0.7	0.2	1.8	20	509	3.08	50	47
4X16	0.9	0.2	1.8	22.7	649	1.91	64	62
4X25	0.9	0.2	1.8	26.7	880	1.2	86	78
4X35	0.9	0.2	1.8	28.3	1040	0.868	105	94
4X50	1	0.2	2.1	32	1365	0.641	125	110
4X70	1.1	0.5	2.1	38.5	2138	0.443	165	135
4X95	1.1	0.5	2.3	42.9	2638	0.32	200	160
4X120	1.2	0.5	2.4	47.4	3202	0.253	235	185
4X150	1.4	0.5	2.6	52.3	3847	0.206	270	205
4X185	1.6	0.5	2.7	57.5	4585	0.164	310	235
4X240	1.7	0.5	3	64.3	5709	0.125	365	260
4X300	1.8	0.5	3.1	70.3	6805	0.1	420	290

0.6/1kV-5 core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable

0.6/1kV-5 core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable
Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	Approx.	Max.D.C resistance of conductor（20℃）	Current carrying capacity
Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm2	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
5X2.5	0.7	0.2	1.8	15.6	321	12.1	-	23
5X4	0.7	0.2	1.8	16.8	376	7.41	-	30
5X6	0.7	0.2	1.8	18.2	443	4.61	-	38
5X10	0.7	0.2	1.8	21.6	592	3.08	50	47
5X16	0.7	0.2	1.8	24.6	763	1.91	64	62
5X25	0.9	0.2	1.8	29	1029	1.2	86	78
5X35	0.9	0.2	1.9	31	1236	0.868	105	94
5X50	1	0.2	2.1	35.7	1616	0.641	125	110
5X70	1.1	0.5	2.3	42.4	2528	0.443	165	135
5X95	1.1	0.5	2.4	47.2	3172	0.32	200	160
5X120	1.2	0.5	2.6	51.8	3801	0.253	235	185
5X150	1.4	0.5	2.7	57.6	4604	0.206	270	205
5X185	1.6	0.5	2.9	63.8	5574	0.164	310	235
5X240	1.7	0.5	3.2	70.7	6859	0.125	365	260
5X300	1.8	0.5	3.4	78	8305	0.1	420	290

0.6/1kV-3+1core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable

0.6/1kV-3+1core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable
Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	Approx.	Max.D.C resistance of conductor（20℃）	Current carrying capacity
Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm2	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
3X4+1X2.5	0.7/0.7	0.2	1.8	15.5	318	7.41/12.1	-	30
3X6+1X4	0.7/0.7	0.2	1.8	16.8	371	4.61/7.41	-	38
3X10+1X6	0.7/0.7	0.2	1.8	19.3	478	3.08/4.61	50	47
3X16+1X10	0.7/0.7	0.2	1.8	22.1	615	1.91/3.08	64	62
3X25+1X16	0.9/0.7	0.2	1.8	25.1	794	1.2/1.91	86	78
3X35+1X16	0.9/0.7	0.2	1.8	26.8	926	0.868/1.91	105	94
3X50+1X25	1/0.9	0.2	1.9	30.2	1175	0.641/1.2	125	110
3X70+1X35	1.1/0.9	0.2	2	35.1	1570	0.443/0.868	165	135
3X95+1X50	1.1/1.0	0.5	2.2	40.4	2359	0.32/0.641	200	160
3X120+1X70	1.2/1.1	0.5	2.3	45	2886	0.253/0.443	235	185
3X150+1X70	1.4/1.1	0.5	2.5	49.1	3396	0.206/0.443	270	205
3X185+1X95	1.6/1.1	0.5	2.8	54.3	4070	0.164/0.32	310	235
3X240+1X120	1.7/1.2	0.5	2.8	59.1	4855	0.125/0.253	365	260
3X300+1X150	1.8/1.4	0.5	3	66	6028	0.1/0.206	420	290

0.6/1kV-4+1core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable

0.6/1kV-4+1core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable
Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	Approx.	Max.D.C resistance of conductor（20℃）	Current carrying capacity
Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm2	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
4X4+1X2.5	0.7/0.7	0.2	1.8	16.3	365	7.41/12.1	-	30
4X6+1X4	0.7/0.7	0.2	1.8	17.7	429	4.61/7.41	-	38
4X10+1X6	0.7/0.7	0.2	1.8	20.3	561	3.08/4.61	50	47
4X16+1X10	0.7/0.7	0.2	1.8	24	728	1.91/3.08	64	62
4X25+1X16	0.9/0.7	0.2	1.8	28.1	974	1.2/1.91	86	78
4X35+1X16	0.9/0.7	0.2	1.9	29.6	1134	0.868/1.91	105	94
4X50+1X25	1/0.9	0.2	2	34	1505	0.641/1.2	125	110
4X70+1X35	1.1/0.9	0.5	2.2	40.3	2351	0.443/0.868	165	135
4X95+1X50	1.1/1.0	0.5	2.3	44.8	2907	0.32/0.641	200	160
4X120+1X70	1.2/1.1	0.5	2.6	50.2	3588	0.253/0.443	235	185
4X150+1X70	1.4/1.1	0.5	2.8	54.6	4215	0.206/0.443	270	205
4X185+1X95	1.6/1.1	0.5	2.9	60.5	5133	0.164/0.32	310	235
4X240+1X120	1.7/1.2	0.5	3	67.1	6289	0.125/0.253	365	260
4X300+1X150	1.8/1.4	0.5	3.2	73.7	7544	0.1/0.206	420	290

0.6/1kV-3+2 core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable

0.6/1kV-3+2 core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable
Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	Approx.	Max.D.C resistance of conductor（20℃）	Current carrying capacity
Nominal cross sectional area	Insulation thickness	Non-magnetic steel tape thickness	Sheath thickness	Approximate outer diameter	weight	Max.D.C resistance of conductor（20℃）	Current carrying capacity
mm2	mm	mm	mm	mm	kg/km	Ω/km	In Air(A)	In Ground(A)
3X4+2X2.5	0.7/0.7	0.2	1.8	16.6	354	7.41/12.1	-	30
3X6+2X4	0.7/0.7	0.2	1.8	18	416	4.61/7.41	-	38
3X10+2X6	0.7/0.7	0.2	1.8	20.9	531	3.08/4.61	50	47
3X16+2X10	0.7/0.7	0.2	1.8	24	694	1.91/3.08	64	62
3X25+2X16	0.9/0.7	0.2	1.8	28.1	920	1.2/1.91	86	78
3X35+2X16	0.9/0.7	0.2	1.9	29.6	1034	0.868/1.91	105	94
3X50+2X25	1/0.9	0.2	2	34	1400	0.641/1.2	125	110
3X70+2X35	1.1/0.9	0.5	2.2	40.3	2153	0.443/0.868	165	135
3X95+2X50	1.1/1.0	0.5	2.3	44.8	2658	0.32/0.641	200	160
3X120+2X70	1.2/1.1	0.5	2.5	50.2	3329	0.253/0.443	235	185
3X150+2X70	1.4/1.1	0.5	2.6	54.6	3790	0.206/0.443	270	205
3X185+2X95	1.6/1.1	0.5	2.8	60.5	4575	0.164/0.32	310	235
3X240+2X120	1.7/1.2	0.5	3	67.1	5564	0.125/0.253	365	260
3X300+2X150	1.8/1.4	0.5	3.2	73.7	6801	0.1/0.206	420	290
