YJV22 Cable Application
YJV22 cable is ideal for:
Power and distribution lines with AC 50Hz, rated voltage 0.6/1kV
Underground cable installations where protection against mechanical stress is crucial
Industrial environments, cable trenches, tunnels, and power stations
Applications requiring fixed laying and long-term reliability
The double steel tape armoring provides excellent mechanical strength and crush resistance, making the cable highly suitable for harsh environments.
YJV22 Cable Standards:
YJV22 power cable is manufactured in accordance with international standards, ensuring high performance and safety:
IEC 60228 – Conductors of insulated cables
IEC 60502-1 – Power cables with extruded insulation for voltages from 1kV up to 30kV (Part 1 for cables up to 1kV and 3kV)
CONSTRUCTION :

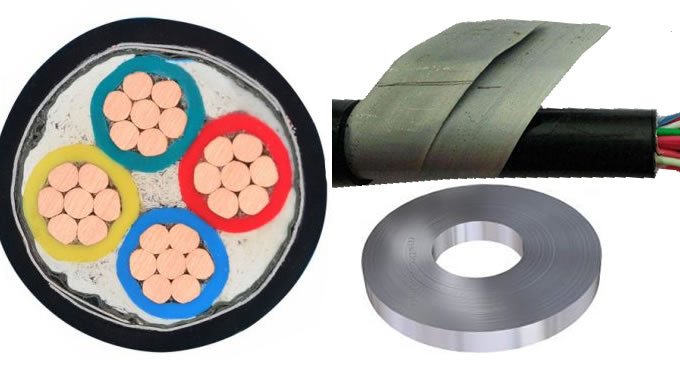

YJV22 Cable Construction
YJV22 Cable Construction
Conductor: Copper Class 1: solid conductor, or Class 2: stranded conductor
Insulation:Cross-linked polyethylene XLPE
Filler: Non-hygroscopic material
Binder tape: Non-hygroscopic material
Inner sheath: Polyvinyl chloride PVC
Armour: Double galvanized steel tape
Outer sheath: Polyvinyl chloride PVC
Why Choose YJV22 Cable?
High mechanical protection thanks to steel tape armor
XLPE insulation provides superior electrical performance and thermal resistance
Corrosion-resistant and suitable for harsh underground or industrial conditions
Complies with international standards for safety and reliability
Available Sizes
YJV22 cable is available in a wide range of conductor sizes and core configurations. Common options include:
Cores: 1 core, 2 cores, 3 cores, 3+1, 4 cores, 4+1, 5 cores
Cross-sectional area: from 1.5mm² to 400mm²
Custom configurations are available upon request.
Contact Us
Looking for reliable and competitively priced YJV22 cables?
TOT Wire & Cable specializes in supplying 0.6/1kV XLPE steel tape armored cables for industrial, infrastructure, and utility projects.
📞 Contact us now for specifications, datasheets, or a free quotation.
