12/2 MC Cable – Metal Clad Electrical Wire for Commercial & Residential Use

12/2 MC Cable is a top choice for branch circuit wiring in residential, commercial, and industrial settings. With two 12 AWG conductors and a ground wire, all encased in a metal-clad armor, this cable offers enhanced protection and performance.

  1. Home
  2. MC Cable
  3. 12/2 MC Cable – Metal Clad Electrical Wire for Commercial & Residential Use

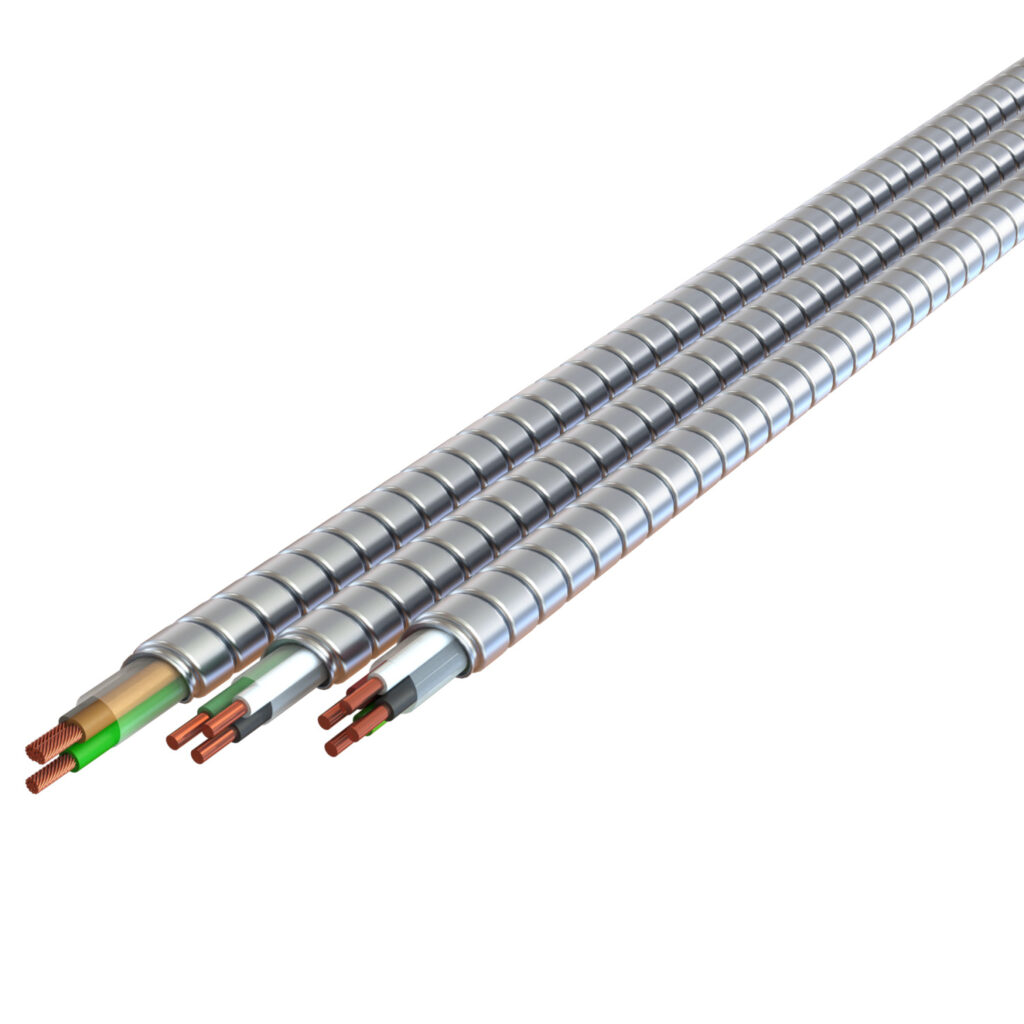

  • Mc Cable 12 2 1024x1024

12/2 MC Cable

Metal Clad Electrical Wire for Commercial & Residential Use

  • Conductor Size 12 AWG (American Wire Gauge)
  • Construction Two insulated conductors (black & white) + one bare/green ground wire
  • Armor Interlocked aluminum armor (flexible & durable)
  • Voltage Rating 600V
  • Insulation THHN/THWN-2 conductors
  • Standards UL listed, NEC compliant
  • Applications Suitable for lighting, receptacles, and general-purpose branch circuits
  • Installation Can be installed in dry indoor environments, cable trays, and exposed or concealed work

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

12/2 MC Cable - Metal Clad Electrical Wire for Commercial & Residential Use

Looking for a durable, code-compliant, and versatile electrical wire? 12/2 MC Cable is a top choice for branch circuit wiring in residential, commercial, and industrial settings. With two 12 AWG conductors and a ground wire, all encased in a metal-clad armor, this cable offers enhanced protection and performance.

Applications of 12/2 MC Cable

  • Indoor power distribution in commercial buildings
  • Apartment and condo wiring
  • Hospitals, schools, and office spaces
  • Lighting and receptacle circuits

Why Choose 12/2 MC Cable Over Romex (NM Cable)?

  • Armor Protection: Unlike Romex, MC cable features a rugged metallic armor, making it ideal for environments where physical damage is possible.
  • Code Compliance: MC cable is suitable for exposed installations where Romex is not allowed.
  • Versatility: Approved for use in walls, ceilings, and even in cable trays.

Common Questions About 12/2 MC Cable

Q: Is 12/2 MC Cable the same as metal clad 12/2 wire?
A: Yes. 'Metal Clad' or MC refers to the same type of armored electrical cable.

Q: Can I buy 12/2 MC Cable at Home Depot or Lowe's?
A: Yes, this cable is widely available at major retailers, but you can often find better bulk pricing and selection with direct suppliers.

Q: What's the difference between 12/2 and 12/2/2 MC Cable?
A: 12/2 MC Cable has two conductors for a single circuit. 12/2/2 MC Cable has four conductors (black, white, red, blue) and is designed for dual-circuit applications with a shared neutral. It's ideal for saving space when wiring multiple circuits.

Q: What is the difference between 12/2 and 12/3 MC Cable?
A: 12/3 includes three conductors (e.g., black, white, red) plus ground, typically used for three-way switches or split circuits.

Q: How much does 12/2 MC Cable weigh per foot?
A: Approximately 0.14 lbs/ft, depending on manufacturer.

Q: What’s the maximum length I can run 12/2 MC Cable?
A: This depends on the circuit load and voltage drop considerations, but for most 15A or 20A circuits, 50–100 feet is typical without voltage drop issues.

Q: What does '12/2' mean in MC cable?
A: It indicates the cable includes two insulated 12 AWG conductors (typically black and white) and one bare or green ground wire.

Q: Can I use 12/2 MC Cable for outdoor applications?
A: Standard 12/2 MC is for dry, indoor locations. For outdoor or wet areas, look for PVC-jacketed MC or MC-HL cable.

Q: Is MC Cable suitable for residential use?
A: Yes, especially in multifamily buildings, condos, and locations where conduit is not practical.

Popular Related Searches

Need help selecting the right cable? Contact us now for expert support and bulk pricing.
