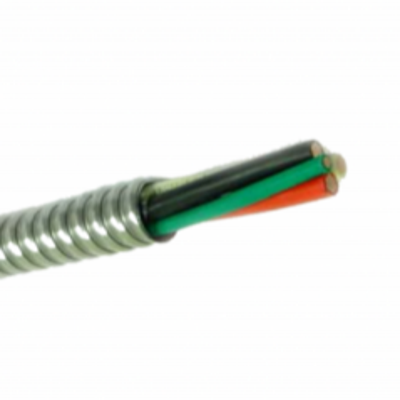

6/4 MC Cable – High-Capacity Metal Clad Cable for Demanding Power Distribution

6/4 MC Cable features four 6 AWG copper conductors and a ground wire enclosed in a rugged aluminum armor. It is designed for high-power 3-phase and 240V circuits, including heavy-duty HVAC systems, industrial equipment, and large subpanel feeders. Its durable construction eliminates the need for separate conduit in dry locations, offering faster, cleaner installations.

  1. Home
  2. MC Cable
  3. 6/4 MC Cable – High-Capacity Metal Clad Cable for Demanding Power Distribution
  • 6 4 Mc Cable

6/4 MC Cable

High-Capacity Metal Clad Cable for Demanding Power Distribution

  • Conductor Size 6 AWG (American Wire Gauge)
  • Construction Four conductors (typically black, red, blue, white) + bare or green ground
  • Armor Interlocked aluminum armor
  • Voltage Rating 600V
  • Insulation THHN/THWN-2 heat- and moisture-resistant insulation
  • Standards UL Listed, NEC Article 330 compliant
  • Temperature Rating 90°C (dry)

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

6/4 MC Cable – High-Capacity Metal Clad Cable for Demanding Power Distribution

6/4 MC Cable features four 6 AWG copper conductors and a ground wire enclosed in a rugged aluminum armor. It is designed for high-power 3-phase and 240V circuits, including heavy-duty HVAC systems, industrial equipment, and large subpanel feeders. Its durable construction eliminates the need for separate conduit in dry locations, offering faster, cleaner installations.

Common Applications for 6/4 MC Cable

  • Power supply for 3-phase 208Y/120V or 240V equipment

  • High-capacity commercial and industrial subpanels

  • Heavy-duty HVAC systems and air handlers

  • Multi-circuit distribution in large buildings

  • 240V electric furnaces or ovens with shared neutral

Benefits of 6/4 MC Cable

  • Increased Ampacity: 6 AWG wires support higher current loads (typically 55 amps per conductor)

  • Four Conductors + Ground: Perfect for complex wiring systems or multi-phase loads

  • No Conduit Required: Armor acts as conduit, reducing labor and material costs

  • Rugged & Flexible: Withstands installation stress in commercial environments

  • Fully Compliant: NEC-approved for branch circuits and feeders in dry locations

Frequently Asked Questions

Q: What is the amp rating of 6/4 MC Cable?
A: Generally rated for 55 amps per conductor in dry conditions. Final ampacity depends on installation method and derating factors.

Q: Can I use 6/4 MC Cable outdoors or underground?
A: Not unless it’s jacketed with PVC (MC-HL type). Standard MC Cable is for indoor, dry locations only.

Q: What’s the difference between 6/3 and 6/4 MC Cable?
A: 6/4 includes an additional conductor, making it suitable for 3-phase loads or dual-circuit systems, while 6/3 is used for simpler 240V installations.

Related Searches

Need help selecting the right cable? Contact us now for expert support and bulk pricing.
