Single Core 19/33KV Medium Voltage Aluminum Wire Armoured Cable

The Single Core 19/33kV Medium Voltage Aluminum Wire Armoured Cable is designed for high-voltage power transmission applications. It features an aluminum conductor with a cross-sectional size suitable for 19/33kV systems, insulated with XLPE for excellent electrical properties and thermal performance. The cable is equipped with steel tape or wire armour to provide mechanical protection and a durable outer sheath for environmental resistance. This cable is ideal for underground and outdoor power distribution networks in industrial, commercial, and infrastructure projects, ensuring safety, reliability, and long-term performance.

  1. Home
  2. Medium Voltage Cables – MV
  3. Medium Voltage Armored Power Cable
  4. Single Core 19/33KV Medium Voltage Aluminum Wire Armoured Cable
  • slide

Single Core 19/33KV Medium Voltage Aluminum Wire Armoured Cable

Single Core 19/33KV (Um=36KV) Armoured

  • Rated Voltage 19/33kV
  • Conductor Material Copper or Aluminum
  • Operating Temperature up to 90°C
  • Short Circuit Temperature 250°C
  • Bending Radius 12 x OD

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

Single Core 19/33KV Medium Voltage Aluminum Wire Armoured CableApplication

The single core cables are designed for distribution of electrical power with nominal voltage Uo/U ranging from 3.8/6.6KV to 19/33KV and frequency 50Hz. They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations.

Single Core 19/33KV Medium Voltage Aluminum Wire Armoured Cable Standard

BS 6622, IEC60502-2, BS 7835 (LSZH Version)

CONSTRUCTION :
Single Core 19/33KV Medium Voltage Aluminum Wire Armoured Cable Construction

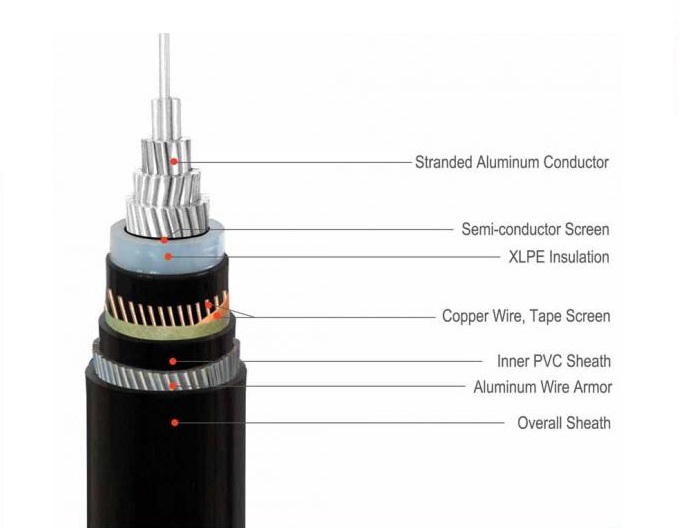

Single Core 19/33KV Aluminum Armoured Cable Construction

Single Core 19/33KV Aluminum Armoured Cable Construction

Conductor: Plain annealed copper or aluminium wire. Copper conductors shall be stranded (class 2) and aluminium conductors shall be either solid or stranded (class 2).
Conductor Screen: Extruded layer of semi-conducting cross-linkable compound.
Insulation: cross-linked polyethylene compound XLPE or EPR.
Insulaton Screen: Extruded layer of semi-conducting cross-linkable compound is applied over the insulation.
Metallic Layer: copper tapes or a concentric layer of copper wires or a combination of tapes and wires.
Separation Sheath (for armoured cable): PVC, PE or LSZH.
Armour (for armoured cable): round aluminium wire.
Over Sheath: PVC or MDPE. LSZH can be offered as an option.

DIMENSIONAL DATA :
Single Core 19/33KV Medium Voltage Aluminum Wire Armoured Cable Data

Nom. Cross-Section Area 　 Aluminium Wire Armoured Cables
Nom. Insulation Thickness Copper Tape Screen Area Nom. Bedding Thickness Nom. Armour Wire Diameter Nom. Sheath Thickness Approx. Overall Diameter Approx. Weight
CU AL
mm^2 mm mm^2 mm mm mm mm kg/km 　
50 8 6.7 1.2 2 2.2 41 2300 1980
70 8 7.1 1.2 2 2.2 42.6 2560 2120
95 8 7.5 1.2 2 2.3 44.4 2890 2290
120 8 7.9 1.2 2 2.3 45.8 3200 2430
150 8 8.2 1.3 2.5 2.4 48.9 3760 2830
185 8 8.6 1.3 2.5 2.5 50.6 4180 3010
240 8 9.2 1.3 2.5 2.5 53.1 4830 3270
300 8 9.7 1.4 2.5 2.6 55.5 5540 3630
400 8 10.3 1.4 2.5 2.7 59.4 6680 4130
500 8 11 1.5 2.5 2.8 62.2 7790 4690
630 8 11.8 1.5 2.5 2.9 67.4 9290 5220
