Single Core 8.7/15KV Medium Voltage Aluminum Wire Armoured Cable

The Single Core 8.7/15kV Medium Voltage Aluminum Wire Armoured Cable is designed for reliable power transmission at medium voltage levels, featuring an aluminum conductor, XLPE insulation for excellent electrical and thermal performance, steel tape or wire armour for mechanical protection, and a durable outer sheath. It is suitable for underground and outdoor installations in industrial and civil power distribution systems, offering durability, safety, and efficient electrical performance.

  1. Home
  2. Medium Voltage Cables – MV
  3. Medium Voltage Armored Power Cable
  4. Single Core 8.7/15KV Medium Voltage Aluminum Wire Armoured Cable
  • slide

Single Core 8.7/15KV Medium Voltage Aluminum Wire Armoured Cable

Single Core 8.7/15KV (Um=17.5KV) Armoured

  • Rated Voltage 8.7/15kV
  • Conductor Material Copper or Aluminum
  • Operating Temperature up to 90°C
  • Short Circuit Temperature 250°C
  • Bending Radius 12 x OD

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

Single Core 8.7/15KV Medium Voltage Aluminum Wire Armoured Cable Application

The single core cables are designed for distribution of electrical power with nominal voltage Uo/U ranging from 3.8/6.6KV to 19/33KV and frequency 50Hz. They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations.

Single Core 8.7/15KV Medium Voltage Aluminum Wire Armoured Cable Standard

BS 6622, IEC60502-2, BS 7835 (LSZH Version)

CONSTRUCTION :

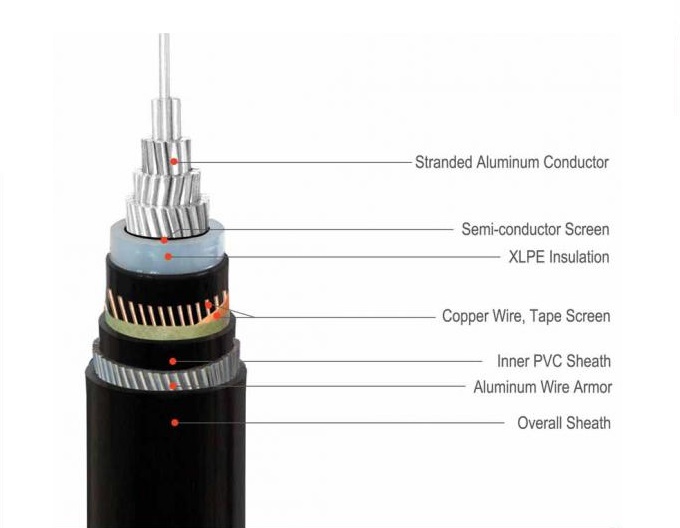

Single Core 8.7/15KV Medium Voltage Aluminum Wire Armoured Cable Construction
