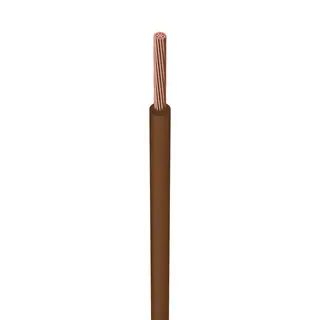

TOT Wire & Cable’s 14 AWG MTW Wire is engineered for high-performance control wiring, offering exceptional flexibility and chemical resistance. It’s ideal for machine tools, control panels, and industrial automation systems. Made with stranded bare copper and PVC insulation, this wire complies with UL and CSA standards, ensuring reliability in demanding environments.
Key Applications:
-
Machine tool wiring and industrial automation
-
Control panels and motor connections
-
Conduit and tray installations
-
OEM equipment wiring
-
Suitable for dry and damp locations, oil-resistant (MTW rated)
Technical Specifications:
| Property | Value |
|---|---|
| Conductor Material | Stranded Bare Copper |
| Conductor Size | 14 AWG |
| Insulation Material | Heat- and oil-resistant PVC |
| Voltage Rating | 600 Volts |
| Temperature Rating | 90°C (Dry), 60°C (Wet) |
| Compliance | UL 1063 MTW, CSA AWM, RoHS Compliant |
| Flame Resistance | VW-1 Flame Test |
| Stranding Type | Class B Flexible Stranded |
| Color Options | Black, Red, White, Green, Blue, Yellow |
| Approx. Outer Diameter | ~3.5 mm |
| Approx. Weight | ~21 kg/km |
Why Choose TOT Wire & Cable?
✅ Flexible construction for easy routing
✅ Resistant to oil, heat, and moisture
✅ Multiple color options for easy circuit ID
✅ Fast lead times and competitive factory pricing
✅ Trusted by OEMs and electrical contractors worldwide
Request a Quote or Sample
Need reliable 14 AWG MTW Wire for your project?
📞 Call us now or 📧 contact inquiry@totcables.com for pricing, datasheets, or samples.
