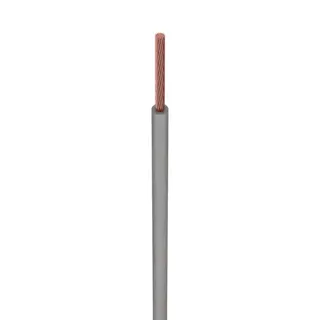

TOT Wire & Cable supplies high-quality 16 AWG MTW Wire ideal for use in machine tools, control panels, and industrial equipment. Engineered with flexible stranded copper and robust PVC insulation, this wire ensures easy handling and long-term durability in demanding environments.
Applications:
-
Internal wiring of machines and electrical control panels
-
Equipment wiring in industrial and commercial buildings
-
Electrical cabinets and switchboards
-
Suitable for dry, oily, or chemically exposed environments
-
Open or conduit wiring where flexibility is essential
Technical Specifications:
| Property | Value |
|---|---|
| Conductor Material | Annealed Bare Copper (Stranded) |
| Conductor Size | 16 AWG |
| Insulation Material | Thermoplastic PVC |
| Voltage Rating | 600 Volts |
| Temperature Rating | 90°C in dry locations |
| Standard Compliance | UL 1063 (MTW), CSA AWM, RoHS Compliant |
| Flame Resistance | VW-1 Flame Test Passed |
| Stranding | Class B Flexible Stranded |
| Color Options | Black, Red, White, Green, Blue, Yellow |
| Approx. OD | ~2.4 mm (varies slightly) |
| Approx. Weight | ~9.5 kg/km |
Why Choose TOT Wire & Cable?
✅ UL & CSA compliant MTW wire for safe installation
✅ Flexible copper conductor simplifies routing
✅ Competitive pricing and MOQ-friendly supply
✅ Color-coded options for panel design efficiency
✅ Fast delivery and custom packaging options
Request a Quote or Sample
Need 16 AWG MTW Wire for your panel or machine wiring project?
📞 Call us or 📧 Email inquiry@totcables.com to get a custom quote, datasheet, or free consultation.
