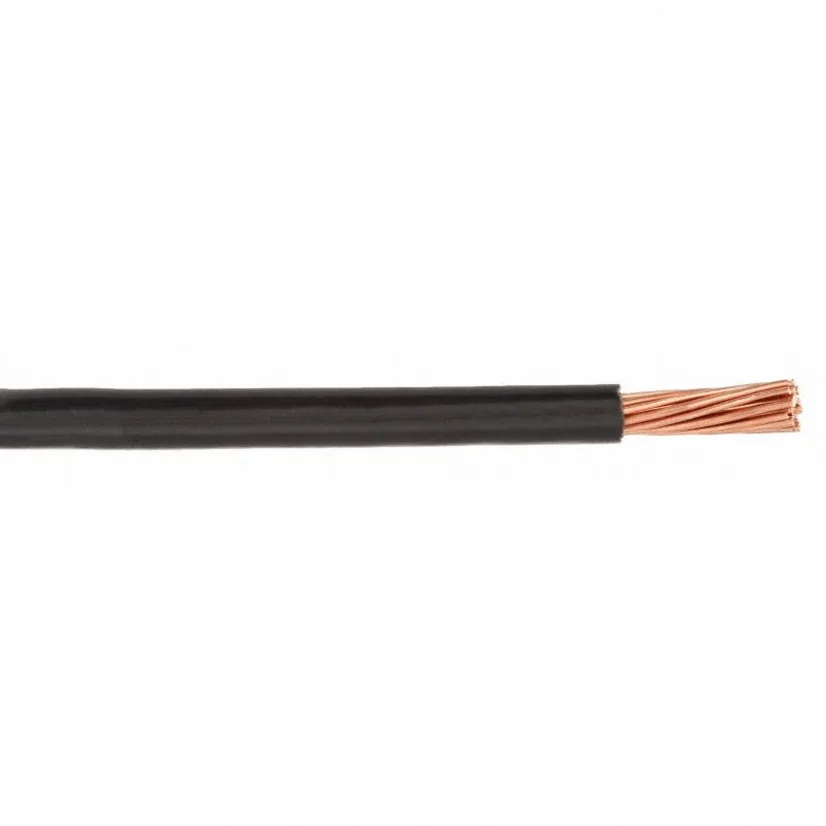

TOT Wire & Cable’s 8 AWG MTW Wire is designed for high-performance machine tool wiring, combining exceptional flexibility, durability, and chemical resistance. This wire features stranded bare copper conductors and high-quality PVC insulation, compliant with multiple UL and CSA standards. Ideal for industrial control panels, motor leads, and automation systems.
Applications:
-
Industrial machine tool wiring
-
Motor connections and control circuits
-
OEM manufacturing and factory equipment
-
Panel boards and electrical enclosures
-
Dry and damp environments; oil- and heat-resistant
Technical Specifications:
| Property | Value |
|---|---|
| Conductor Material | Stranded Bare Copper |
| Conductor Size | 8 AWG |
| Insulation Material | PVC (Heat, Moisture, and Oil Resistant) |
| Voltage Rating | 600 Volts |
| Temperature Rating | 90°C (Dry), 60°C (Wet) |
| Compliance | UL 1063 (MTW), CSA AWM, RoHS Compliant |
| Flame Test | VW-1 Flame Resistance |
| Stranding Type | Flexible Class B Stranding |
| Color Availability | Red, Black, White, Green, Yellow, Blue |
| Approx. OD | ~7.4 mm |
| Approx. Weight | ~94 kg/km |
Why Choose TOT Wire & Cable?
✅ Premium flexibility for tight bends and routing
✅ Durable insulation for industrial environments
✅ Multiple insulation colors for circuit clarity
✅ Short lead time and bulk order pricing available
✅ Backed by ISO-certified quality control
Contact Us for Quote or Sample
Looking for dependable 8 AWG MTW Wire?
📞 Call us or email inquiry@totcables.com for competitive prices, technical datasheets, or free samples.
