When installing or troubleshooting an HVAC system, understanding the air conditioner wire color code is essential for safety and performance. Whether you're wiring a thermostat, condenser unit, or air handler, each wire color typically follows an industry-standard convention that identifies its function.
In this guide, we’ll explain common air conditioner wiring color codes, including diagrams and practical tips, to help you wire your system correctly.
📘 Why Wire Color Codes Matter
Air conditioners involve multiple components—thermostats, compressors, fan motors, contactors—all of which rely on low-voltage (24V) control wiring. Correctly identifying wire functions by their color codes prevents connection errors and ensures the system runs efficiently and safely.

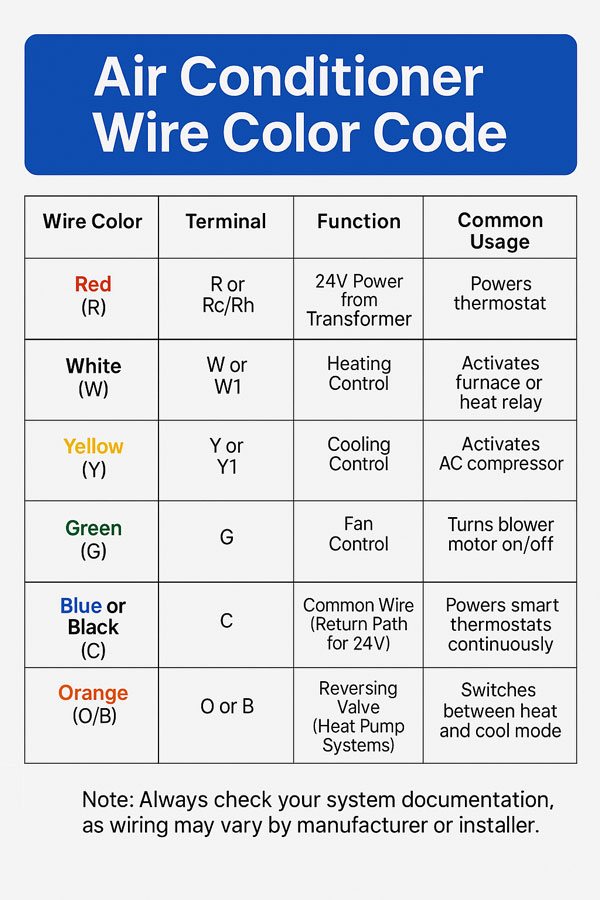

air conditioner wire color code
🎨 Standard Air Conditioner Wire Color Code
| Wire Color | Terminal | Function | Common Usage |
|---|---|---|---|
| Red (R) | R or Rc/Rh | 24V Power from Transformer | Powers thermostat |
| White (W) | W or W1 | Heating Control | Activates furnace or heat relay |
| Yellow (Y) | Y or Y1 | Cooling Control | Activates AC compressor |
| Green (G) | G | Fan Control | Turns blower motor on/off |
| Blue or Black (C) | C | Common Wire (Return Path for 24V) | Powers smart thermostats continuously |
| Orange (O/B) | O or B | Reversing Valve (Heat Pump Systems) | Switches between heat and cool mode |
🔧 Note: Always check your system documentation, as wiring may vary by manufacturer or installer.
📌 Air Conditioner Wiring Diagrams
✅ Typical Central AC System (Split System)
Thermostat to Air Handler/Condenser:
✅ Heat Pump System (with O/B wire)
🛑 Caution: Color May Vary
While these color codes are widely used, some HVAC systems may have non-standard or reversed wiring, especially in older systems or DIY installations. Always:
-
Label wires when removing an old thermostat
-
Take a photo of existing connections
-
Use a multimeter to verify voltage
-
Consult system wiring diagrams
🧰 Where You’ll Find These Wires
-
Thermostat to air handler wiring (typically 18/5 cable)
-
Control board inside the furnace or air handler
-
Condenser unit low-voltage terminal block
-
HVAC zone control systems
💡 Helpful Tips
-
Use the C wire for smart thermostats to avoid battery drain
-
Don't assume color = function—verify at both ends
-
Secure connections using wire nuts or terminal screws
-
Use wire labels for complex systems or commercial HVAC
✅ Summary
Understanding the air conditioner wire color code is key to safely installing or servicing HVAC systems. Standard color conventions help technicians identify wiring functions, but it’s always best to verify connections based on your specific system.
Whether you're replacing a thermostat, wiring a condenser unit, or setting up a new smart home system, getting the wiring right ensures efficient cooling, energy savings, and system longevity.
